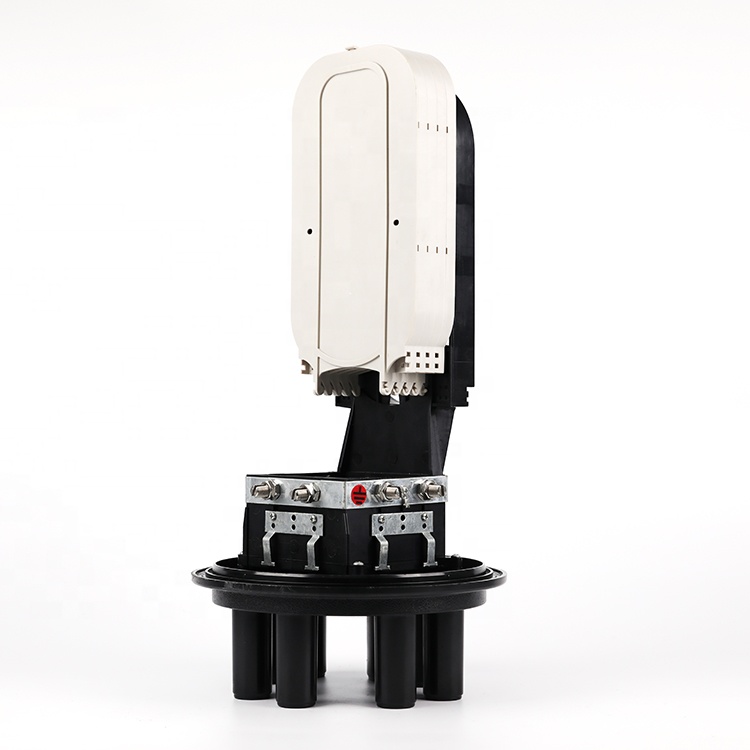

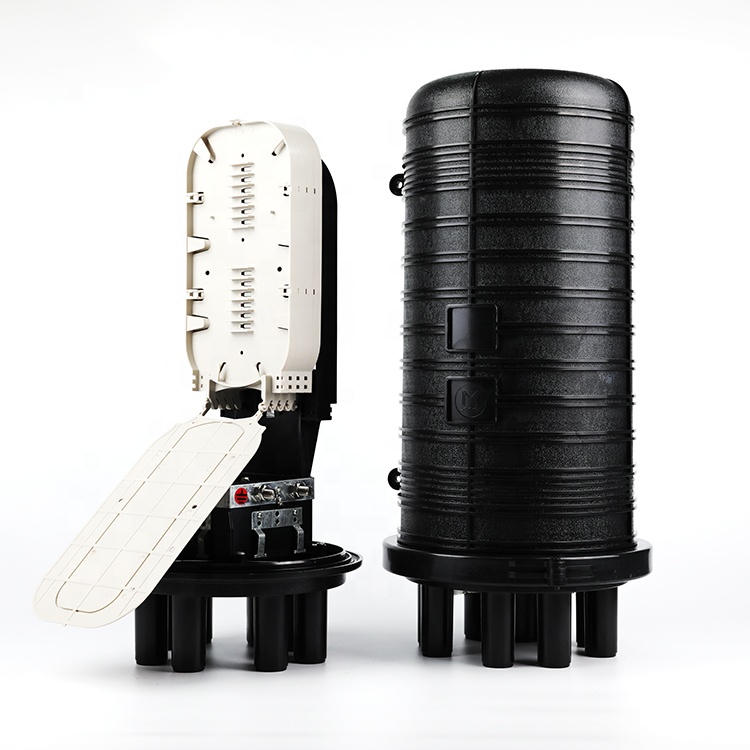

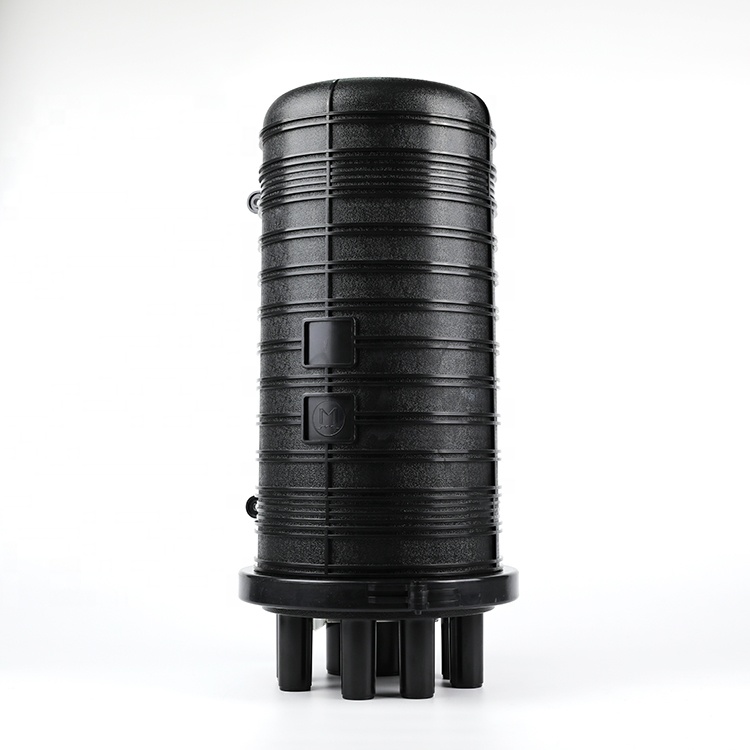

Dome type splice closure

Application：
         Ο direct burying Ο man well Ο hand hole
Properties：
         Aging resistance: stable in heat, heat energy radiation, air, ozone, etc.
         Corrosion resistance: resistant to diluted acid, saline water, oxidant, aliphatic
hydrocarbon, etc.
         Seal technique: heat the optical cable pyrocondensation fixed bushing to fix and
seal the optical cable after it is connected.
         Mechanical properties: resistant to shake, bump, draw & distortion of the optical
cable and intense temperature change, etc.
         Locking device: require no special tools, easy installation and operation.

   Branching function: accommodate four optical cables.
         Connection function: layered structure, two fiber inlet-outlet holes for the sake of convenient management.
Capacity：
         Capacity of the connection tray: single-core bunch 12 cores/tray, double-core bunch 24 cores/tray.
         Maximum capacity: can accommodate as much as 6 connection trays.
         Optical cable inlet-outlet hole: 2 optical cables with maximum diameter of 20mm, one elliptical inlet-outlet tube which can accommodate 2 optical cables with their diameter no more than 26mm.
Schematic diagram for the accessories：
         Please refer to the packing list for the name of the accessories in the diagram.
