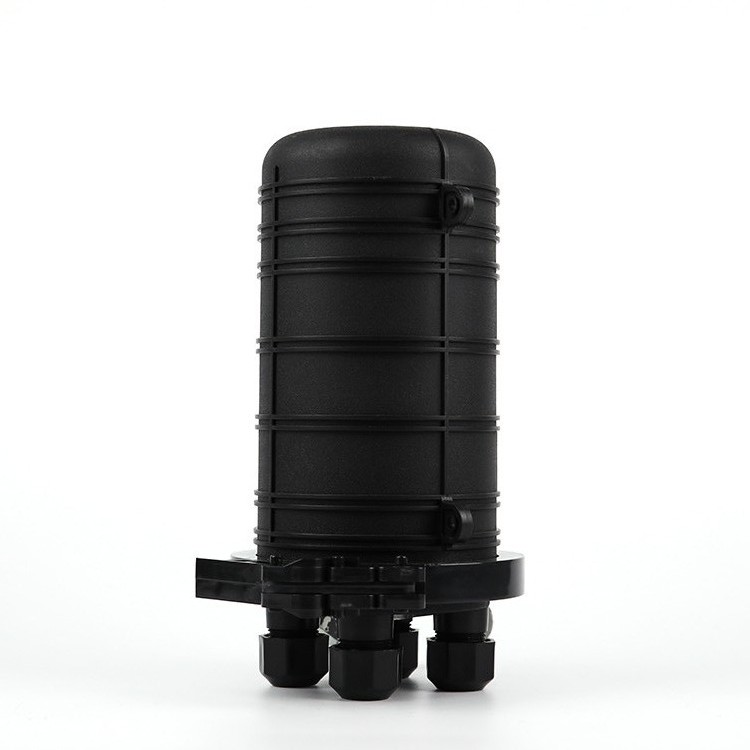

Fiber Optic Splice Closure is of
innovative bullet shape, smooth and solid
shell; the device is equipped with holt hoop
iron seal device in the drum and base, and
elastic seal ring at the bottom of the drum,
which shall provide reliable, stable and flexible
protection for the direct, terminal or branching
connection of the fiber.
Application：
Ο direct burying Ο man well Ο hand hole
Ο wall-cling Ο hold pole
Properties：
Aging resistance: stable in heat, heat energy radiation, air, ozone, etc.
Corrosion resistance: resistant to diluted acid, saline water, oxidant, aliphatic
hydrocarbon, etc.
Seal technique: spiral taper seal technique, waterproof, moistureproof and airtight.
Mechanical properties: resistant to shake, bump, draw & distortion of the optical
cable and intense temperature change, etc.
Locking device: require no special tools, easy installation and operation.
Branching function: the two-in-two-out design at the two terminals provides multiple inlet-outlet options for the butt connection and direct connection of the fiber.

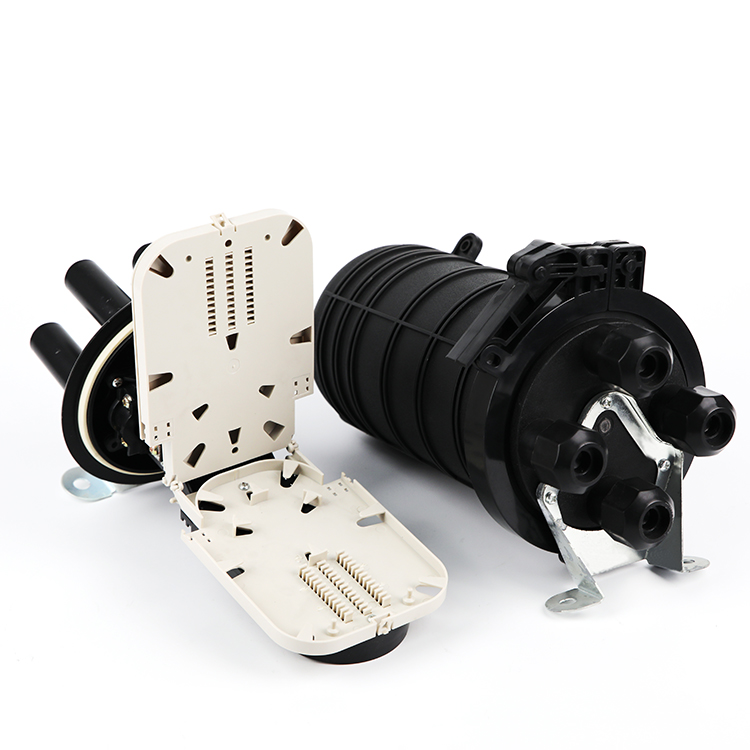

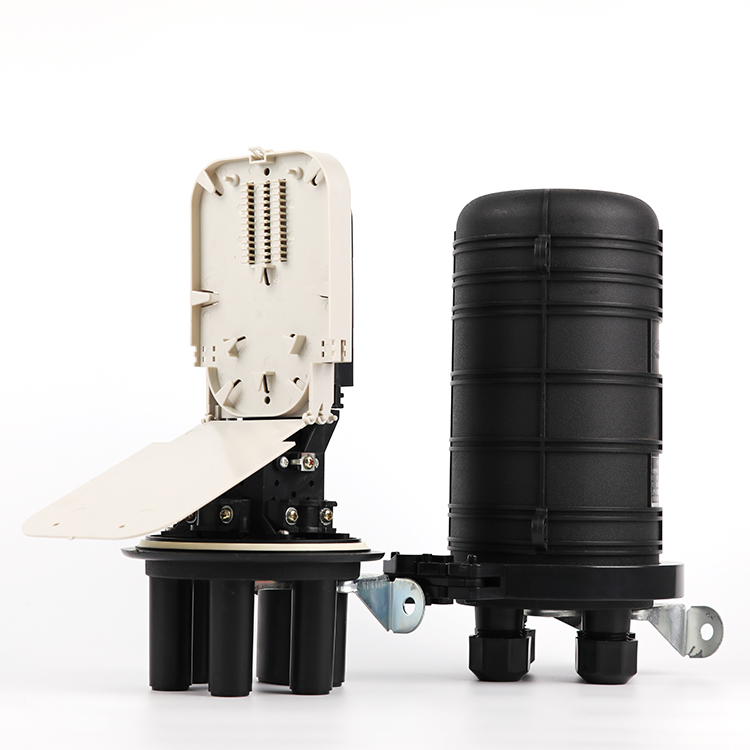

Connection function: layered structure, two inlet-outlet holes for fiber for the sake of management convenience.
Capacity：
Capacity of the connection tray: single-core bunch 12 cores/tray, double-core bunch 24 cores/tray, belt (4, 6, 8, 12 cores) 6 units/tray.
Maximum capacity: can accommodate as much as 4 connection trays.
Optical cable inlet-outlet hole: there are six optical cable inlet-outlet holes in the base and the maximum hole can accommodate four optical cables with their diameter no more than 23mm.
Schematic diagram for the accessories：
Please refer to the packing list for the name of the accessories in the diagram.
Product Directory：
|
Product Name
|
Dimension
|
12-core tray singlecore(capacity)
|
24-core tray doublecore(capacity)
|
4, 6, 8, 12 core
belt (capacity) |
|
GJS10-J Fiber Optic
Splice Closure |
H375X Φ140
|
12 cores
|
24 cores
|
24、36、48、72 cores
|
|
GJS10-J Fiber Optic Splice Closure
|
H375X Φ140
|
24 cores
|
48 cores
|
48、72、96、144 cores
|
|
GJS10-J Fiber Optic Splice Closure
|
H375X Φ140
|
36 cores
|
72 cores
|
72、108、144、216 cores
|
|
GJS10-J Fiber Optic Splice Closure
|
H375X Φ140
|
48 cores
|
96 cores
|
96、144、192、288 cores
|
Notes: please make clear bunch or belt in the order (the belt can be divided into 4-core, 6-core, 8-core and 12-core).
