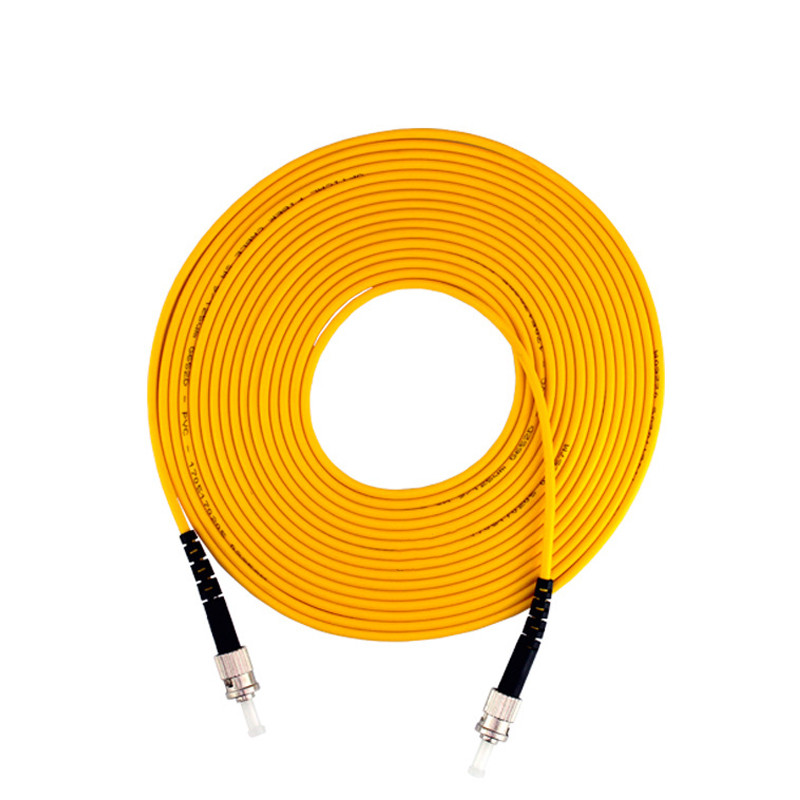

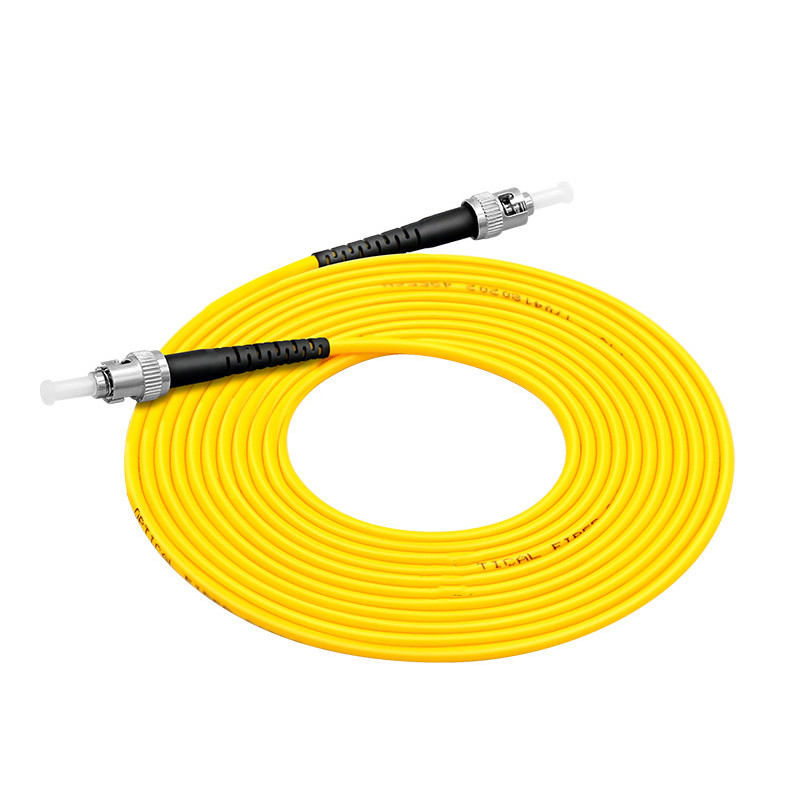

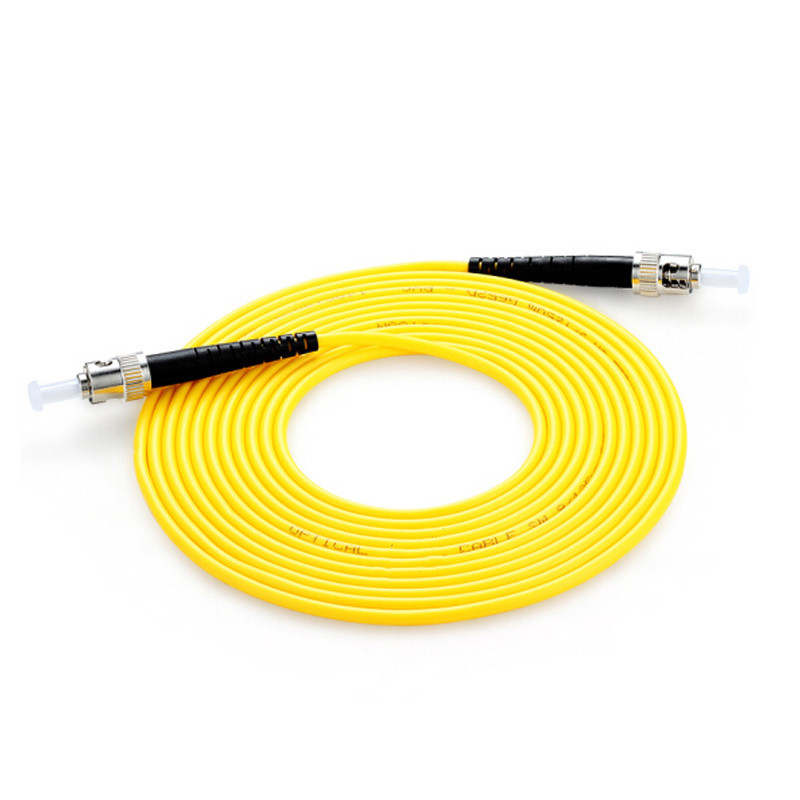

> Singlemode Duplex Fiber Optic Patch Cord
> LC,SC,FC,ST,E2000,DIN,MTRJ,MPO connector configurations available
> 1m/2m/3m/5m/7m/10m/15m/20m/25m/30m lengths available
> Available in standard or custom configurations
> 2.0mm/3.0mm diameter
> Low back reflection and insertion loss
> PVC/LSZH jacket
> Cerramic ferrule
> 1pcs per bag
> UL, RoHS Compliant
Main technical parameters :
* Optical fiber external diameter: φ0.9mm, φ2.0mm, φ3.0mm are optional, and PC, UPC and APC are available, there are two kinds of single mode and multi-mode.
* Insertion loss: ≤0.2dB
* Echo Loss: PC≥40dB,UPC≥50dB,APC≥60dB
* Exchangeability test: ≤0.2dB
* Vibration test: ≤0.1dB (10-60Hz, 1.5mm amplitude)
* Tensile strength test: ≤0.1dB (0-15Hg tension, excluding 0.9mm optical fiber)
* High temperature test: ≤0.2dB (+85 C, lasting 100 hours)
* Low temperature test: ≤0.2dB (-40 C, lasting 100 hours)
* Temperature cycling test:≤0.2dB (-40 ~85 C, after 5 cycles)
* Humidity test: ≤0.2dB (+25℃~+65℃, relative humidity 93%, 100 hours later)
* Commonly used connectors: SC (large head)/LC (small head/FC (spiral port)/ST (card port)
Scope of application :
* Optical Fiber Communication System, Optical Fiber Access Network, Optical Fiber Data Transmission, Optical Fiber CATV, Local Area Network (LAN), Testing Equipment
| Model | VDX-STST-SM-01 | |
| Brand | OEM Brand, HSD Cable | |
| Application | Network, Telecommunications | |
| Color | Optional | |
| Length | Optional | |
| Connector | ST/FC/SC/LC/MTRJ/E2000 | |
| Operating temp range | -40~85°C | |
| Service | OEM Offered | |
| Technical specifications | PC/UPC/APC | |
| Fiber Counts | Simplex, Duplex | |
| Fiber Mode | Multimode/Singlemode | |
