High-Performance Category 6 Network Cabling Solution
The UTP CAT6 Ethernet Cable is designed for high-speed data transmission in modern structured cabling systems. Engineered with premium solid bare copper conductors and optimized twisted-pair construction, this cable delivers reliable Gigabit Ethernet performance while supporting bandwidth requirements up to 250MHz.
Ideal for enterprise networks, commercial buildings, data centers, smart building infrastructure, IP surveillance systems, and PoE-enabled devices, CAT6 cabling provides enhanced performance and reduced crosstalk compared to Category 5e solutions.
Key Features
· Supports Gigabit Ethernet (1000Base-T)
· Bandwidth up to 250MHz
· 24AWG Solid Bare Copper Conductors
· Enhanced Crosstalk Reduction Design
· Stable Signal Transmission up to 100 Meters
· Compatible with PoE and PoE+ Applications
· Available in PVC and LSZH Jacket Options
· RoHS & REACH Compliant
· Suitable for Structured Cabling Systems
Technical Specifications
|
Item
|
Specification
|
|
Product Type
|
UTP CAT6 Ethernet Cable
|
|
Category
|
Category 6
|
|
Conductor Material
|
Solid Bare Copper
|
|
Conductor Size
|
24 AWG
|
|
Number of Conductors
|
4 Pairs (8 Conductors)
|
|
Insulation Material
|
HDPE
|
|
Shielding
|
Unshielded Twisted Pair (UTP)
|
|
Characteristic Impedance
|
100 ± 15 Ω
|
|
Bandwidth
|
250 MHz
|
|
Data Rate
|
Up to 1 Gbps
|
|
Jacket Material
|
PVC / LSZH
|
|
Jacket Color
|
Blue, Grey, White, Black or Custom
|
|
Operating Temperature
|
-20°C to +60°C
|
|
Installation Temperature
|
0°C to +50°C
|
|
Compliance
|
ANSI/TIA-568.2-D, ISO/IEC 11801, IEEE 802.3
|

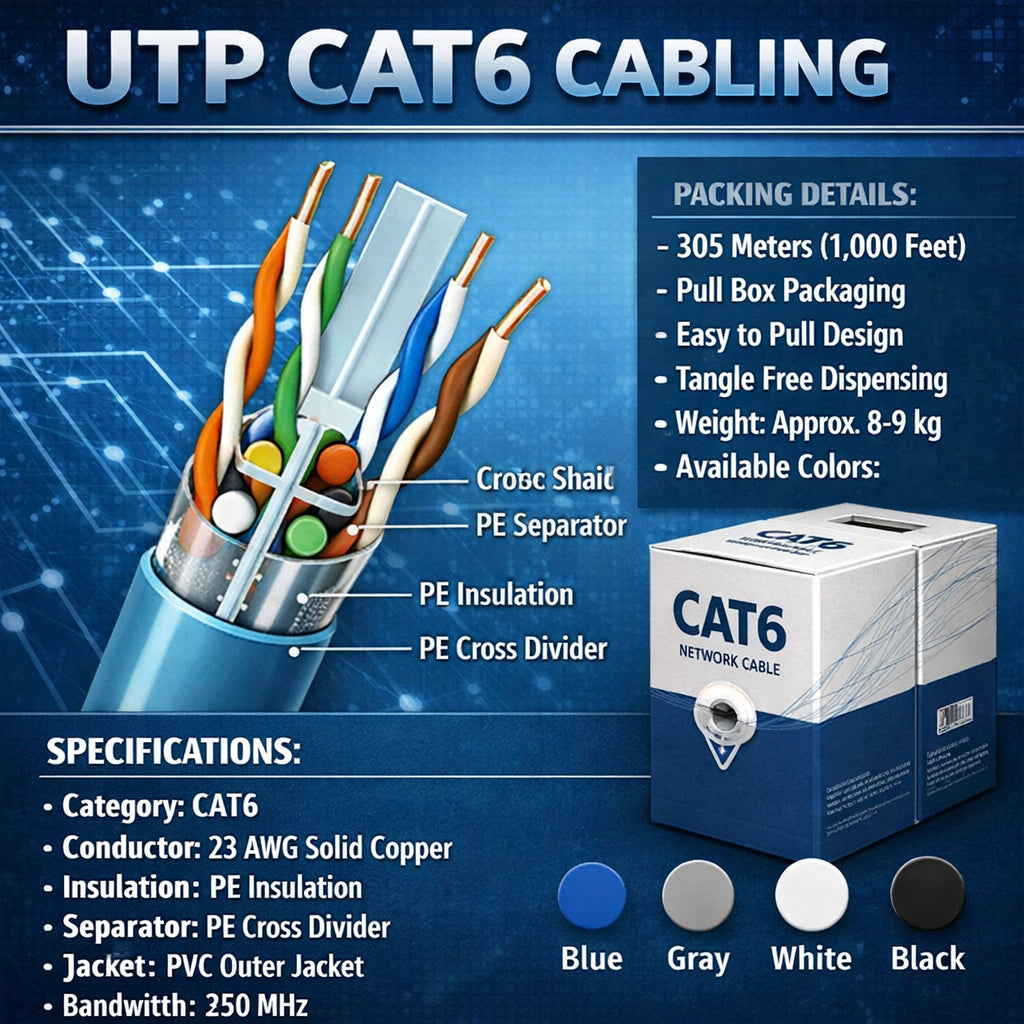

Cable Construction
Conductor
24AWG solid bare copper conductors ensure excellent electrical performance, low attenuation, and reliable data transmission.
Insulation
High-density polyethylene (HDPE) insulation provides superior signal integrity and pair separation.
Twisted Pair Design
Four precision-twisted pairs reduce Near-End Crosstalk (NEXT) and improve overall network performance.
Outer Jacket
Available in PVC or LSZH (Low Smoke Zero Halogen) materials to meet various installation requirements.
Electrical Performance
|
Parameter
|
Value
|
|
Impedance
|
100 ± 15 Ω
|
|
Frequency Rating
|
250 MHz
|
|
DC Resistance
|
≤ 9.38 Ω / 100m
|
|
Resistance Unbalance
|
≤ 2%
|
|
Capacitance
|
≤ 5.6 nF / 100m
|
|
Delay Skew
|
≤ 45 ns / 100m
|
Applications
The CAT6 UTP Cable is widely used in:
· Enterprise Office Networks
· Smart Building Infrastructure
· Data Center Horizontal Cabling
· IP Surveillance Systems
· Wireless Access Points (WiFi AP)
· VoIP Telephony Systems
· Building Automation Systems
· Educational Institutions
· Hospitals and Healthcare Facilities
· Hotels and Commercial Buildings
PoE Ready
Designed to support Power over Ethernet (PoE) applications including:
· IP Cameras
· Wireless Access Points
· VoIP Phones
· Access Control Systems
· Smart Building Devices
· IoT Network Equipment
Packaging Options

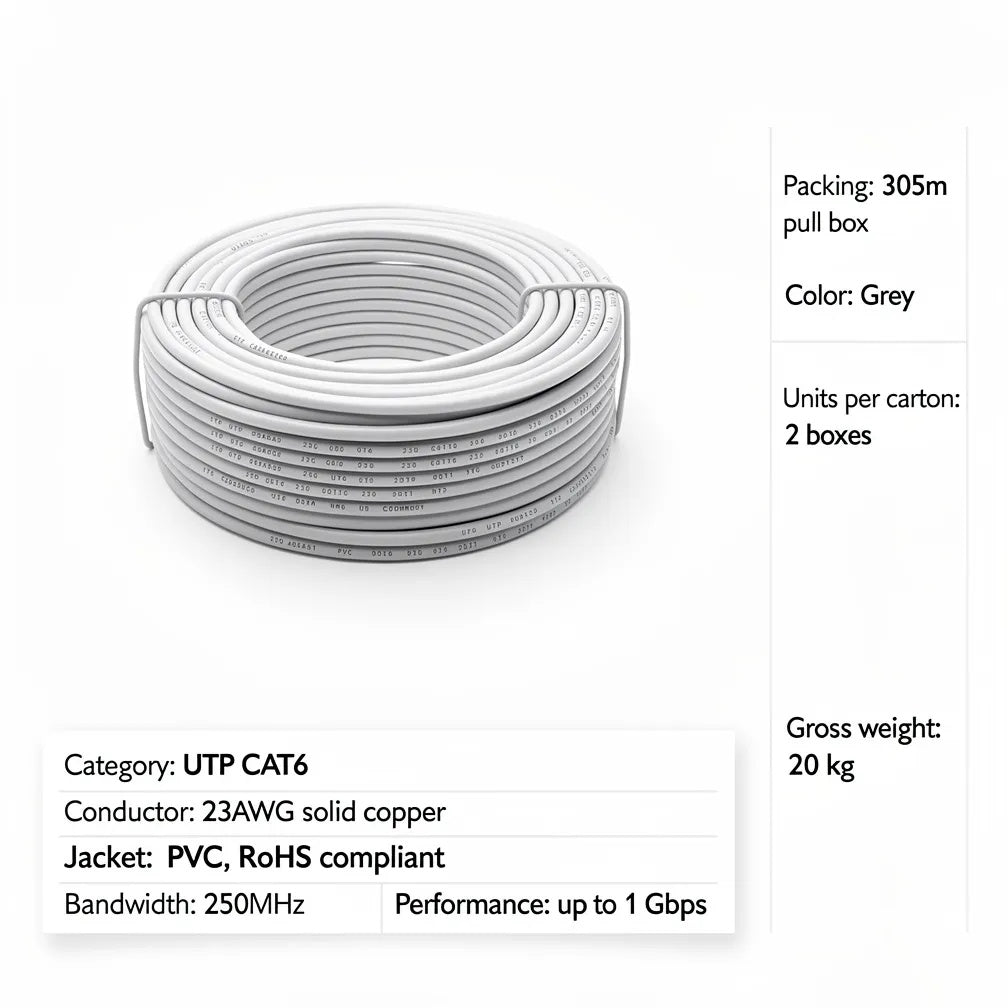

· 305m Pull Box (1000ft)
· Easy Pull Box

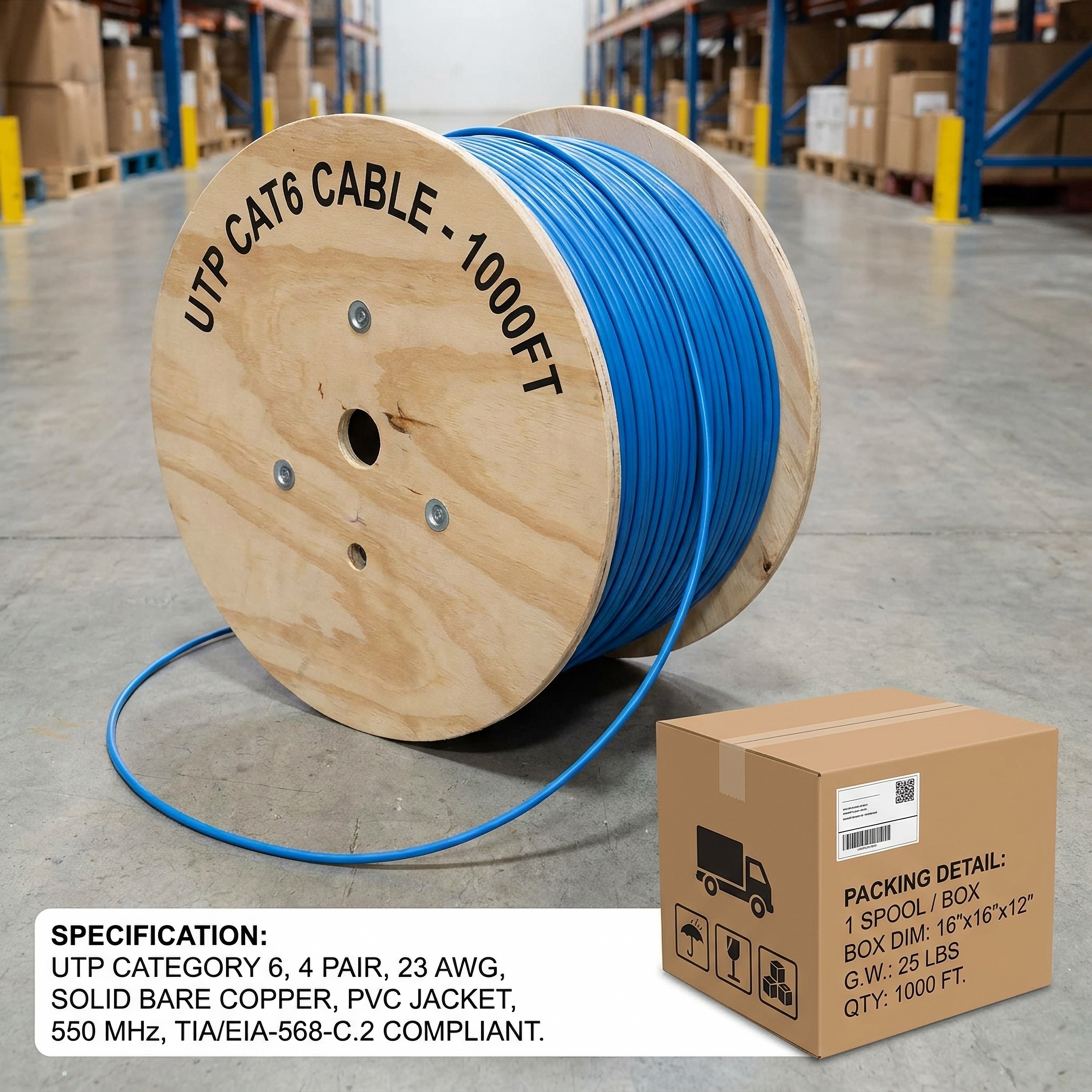

· Wooden Drum
· Customized Length Available
· OEM Private Label Packaging
Customization Services
OEM and ODM services are available:
· Customized Cable Colors
· Custom Printing on Jacket
· PVC / LSZH / PE Jacket Options
· Private Label Packaging
· Customized Lengths
· Customer Logo Printing
Why Choose Our CAT6 Ethernet Cable?
Our CAT6 UTP Ethernet Cable is manufactured using high-quality materials and strict quality control procedures to ensure stable network performance and long-term reliability. Whether deployed in commercial buildings, enterprise LANs, smart building systems, or structured cabling projects, it provides the performance and durability required for modern network infrastructure.
For project quotations, OEM requirements, or technical support, please contact our sales team.
