High-Performance Single Mode Fiber Connectivity for FTTH and Telecom Networks

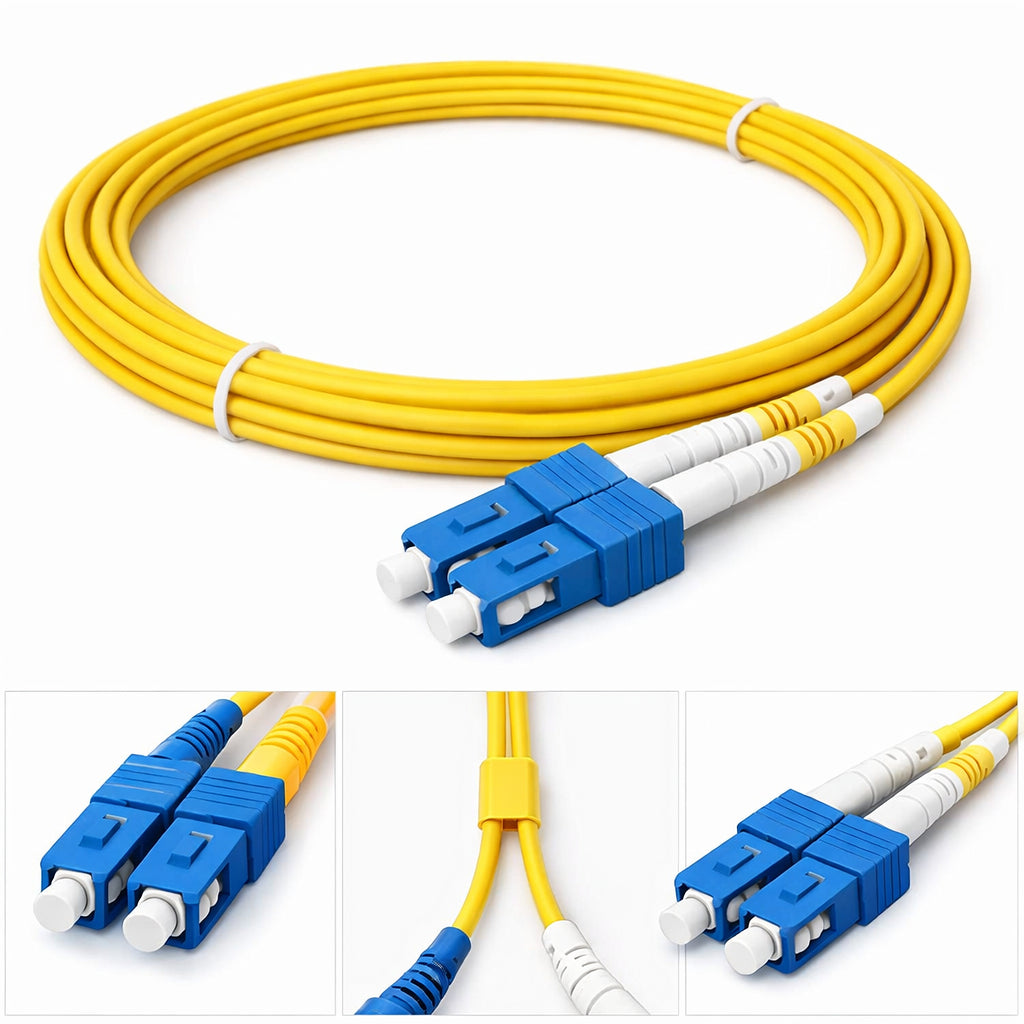

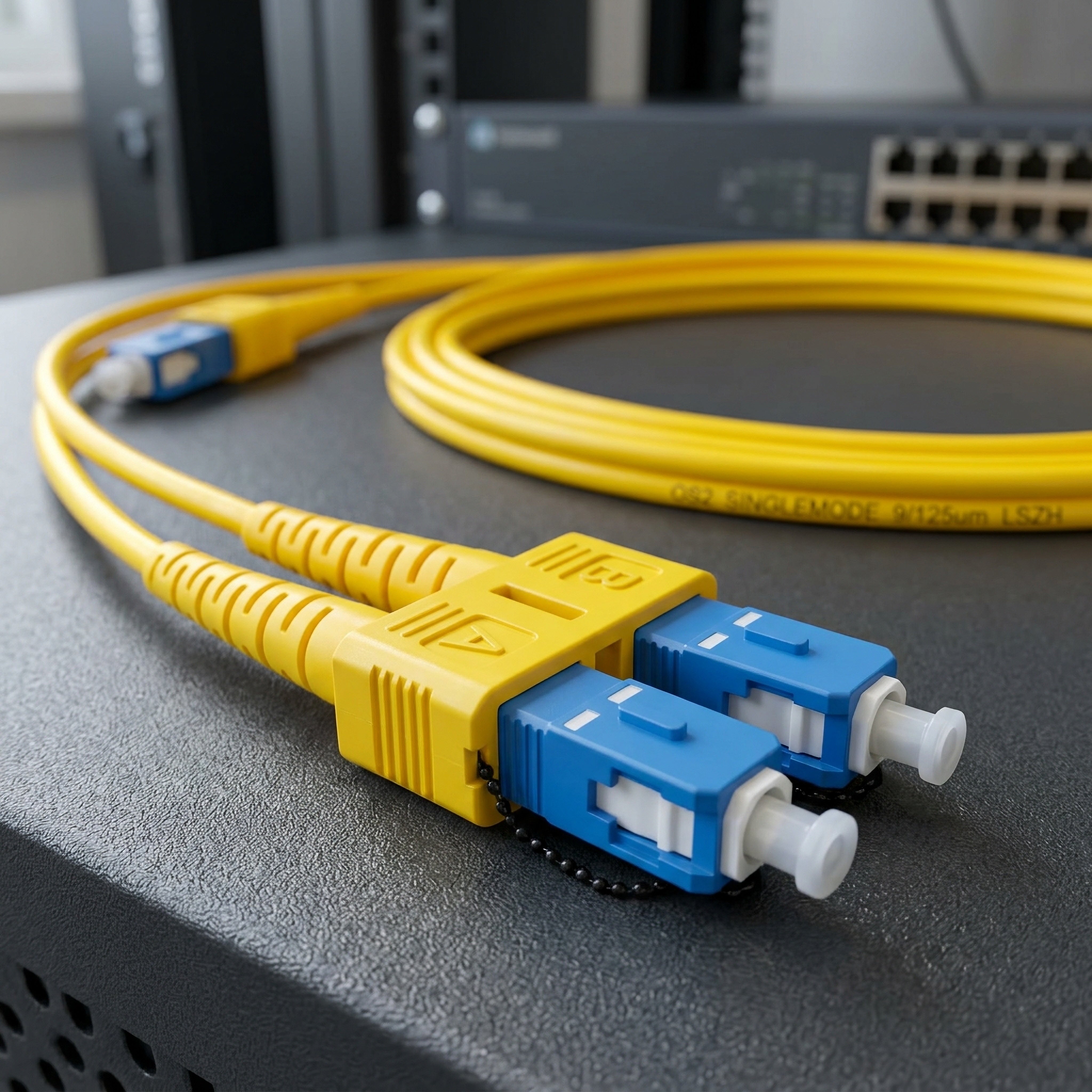

The SC/APC-SC/APC Fiber Patch Cord is designed for high-precision optical connections requiring ultra-low back reflection and stable signal transmission. Manufactured with premium single mode fiber and precision SC/APC connectors featuring an 8° angled polish, this patch cord delivers excellent optical performance and minimizes return loss in sensitive network environments.
Designed for FTTH, PON networks, telecom infrastructure, and optical distribution systems, the SC/APC-SC/APC patch cord provides reliable long-distance transmission and outstanding connection stability. Available in PVC and LSZH jacket options, it is suitable for both indoor installations and high-density fiber management applications.
Key Features
- Single Mode Fiber (OS2 9/125μm)
- SC/APC to SC/APC Connector Configuration
- 8° Angled Polish for Low Back Reflection
- Low Insertion Loss and High Return Loss
- Stable Long-Distance Signal Transmission
- Available in PVC and LSZH Jacket
- RoHS and REACH Compliant
Technical Specifications
- Fiber Type: OS2 Single Mode (9/125μm)
- Connector Type: SC/APC-SC/APC
- Insertion Loss: ≤ 0.3 dB
- Return Loss: ≥ 60 dB
- Jacket Material: PVC / LSZH
- Standard Lengths: 1m, 2m, 3m, 5m, 10m or Customized
Applications
- FTTH Networks
- GPON and EPON Systems
- Telecom Networks
- Optical Distribution Frames (ODF)
- Fiber Distribution Boxes
- CATV and Broadband Networks
OEM & Customization
OEM and ODM services are available, including custom cable lengths, jacket colors, private label packaging, and project-specific configurations.
The SC/APC-SC/APC Fiber Patch Cord provides a reliable and cost-effective solution for modern fiber communication systems, ensuring low-loss optical connectivity and exceptional performance in telecom and FTTH applications.
