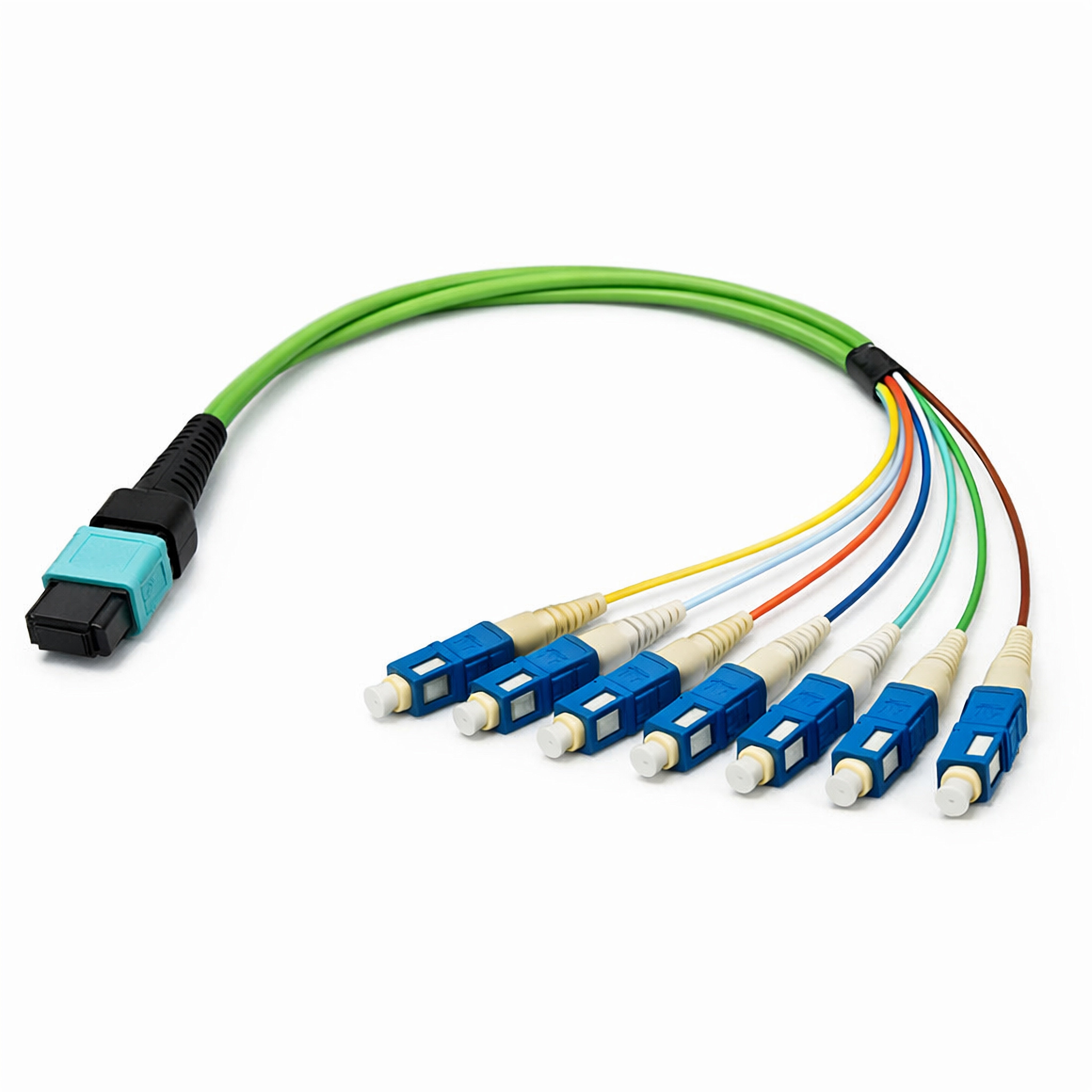

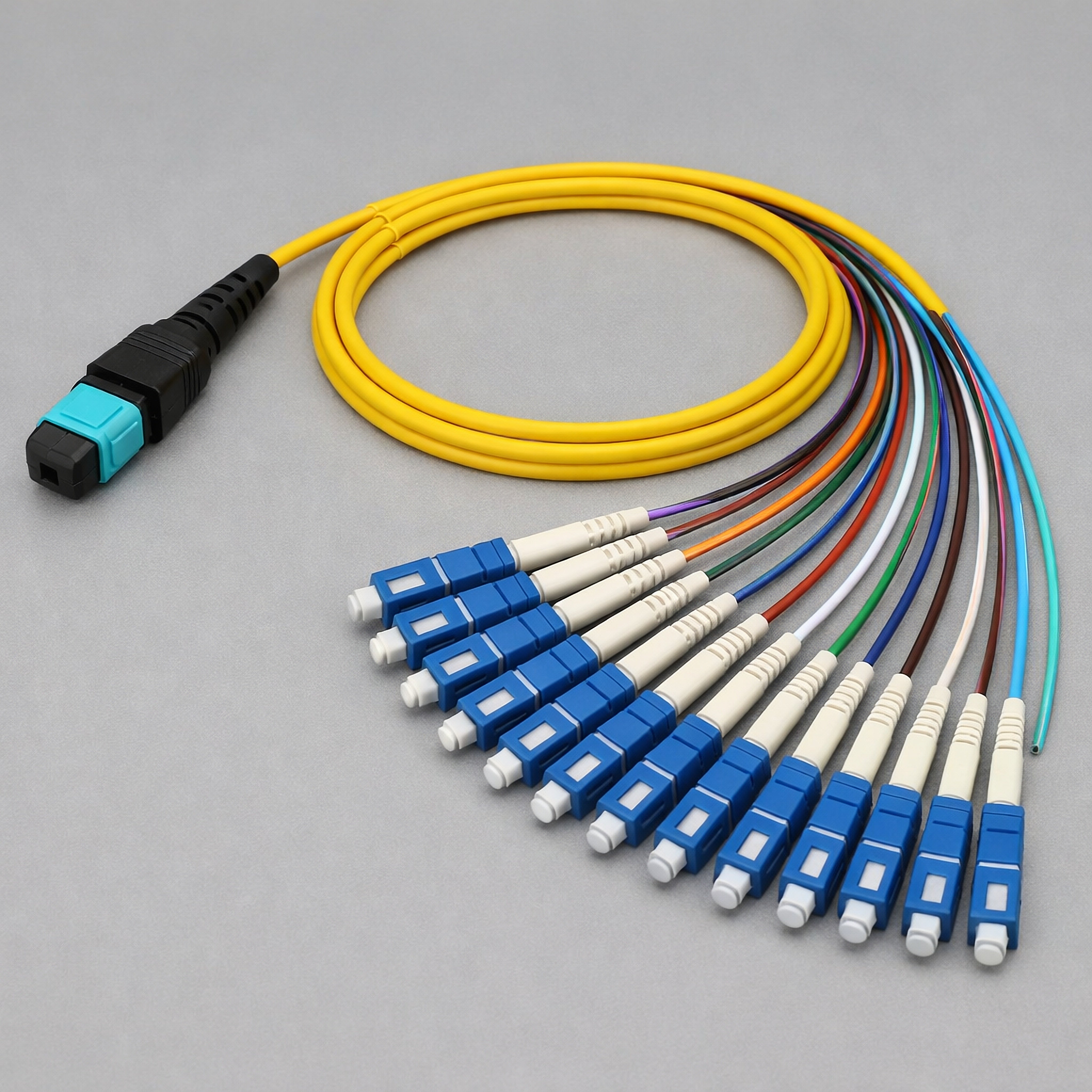

MPO/MTP to SC Breakout Cable
Product Overview
The MPO/MTP to SC Breakout Cable is a high-performance fiber optic solution designed to efficiently convert high-density MPO/MTP backbone connections into individual SC connectors. It enables seamless signal distribution from a multi-fiber trunk to single-fiber equipment ports, making it ideal for modern high-speed network infrastructures such as data centers, enterprise networks, and telecom environments.
Built for reliability, scalability, and easy deployment, this breakout cable significantly simplifies fiber management while improving overall network efficiency.
Key Features
Ā High-Density Connectivity
Transforms a single MPO/MTP multi-fiber connection into multiple SC outputs, optimizing rack space and reducing cable clutter.
š Plug-and-Play Installation
Factory pre-terminated design eliminates the need for on-site splicing, reducing installation time and labor costs.
š” Low Insertion Loss & High Stability
Precision polished fiber connectors ensure minimal signal loss and excellent return loss performance for stable long-distance transmission.
š§© Flexible Configuration
Available in multiple fiber counts such as 8, 12, 16, and 24 fibers, with customizable breakout configurations to meet diverse network requirements.
š¢ Data Center Grade Performance
Designed for high-density environments, ensuring reliable operation in mission-critical data center and telecom applications.
Product Specifications
| Specification |
Details |
| Connector Type |
MPO/MTP to SC |
| Fiber Type |
Single-mode (OS2) / Multi-mode (OM3, OM4, OM5) |
| Fiber Count |
8 / 12 / 16 / 24 cores (custom available) |
| Insertion Loss |
ā¤ 0.35 dB (typical) |
| Return Loss |
ā„ 50 dB (UPC) / ā„ 60 dB (APC) |
| Jacket Material |
PVC / LSZH (optional) |
| Operating Temperature |
-20Ā°C to +70Ā°C |
| Length |
Customizable |
Applications
- Data center backbone cabling
- Cloud computing infrastructure
- Fiber distribution frames (ODF/MDF)
- High-speed storage networks (SAN)
- Enterprise network upgrades
- 5G front-haul and back-haul systems
Advantages Over Traditional Splicing
Compared to conventional fiber splicing solutions, this MPO/MTP breakout cable offers:
- Faster deployment with no fusion splicing required
- Lower installation and maintenance costs
- Higher port density in limited space
- Improved network scalability and flexibility
- More consistent and stable optical performance
Customization Options
We offer full OEM/ODM customization services, including:
- Fiber count customization (8/12/24/48 fibers, etc.)
- Custom cable length
- Connector grade options (Standard / Elite low-loss)
- Labeling and port numbering
- Jacket material selection (PVC or LSZH)
- Private labeling and packaging
- Factory test reports available upon request
