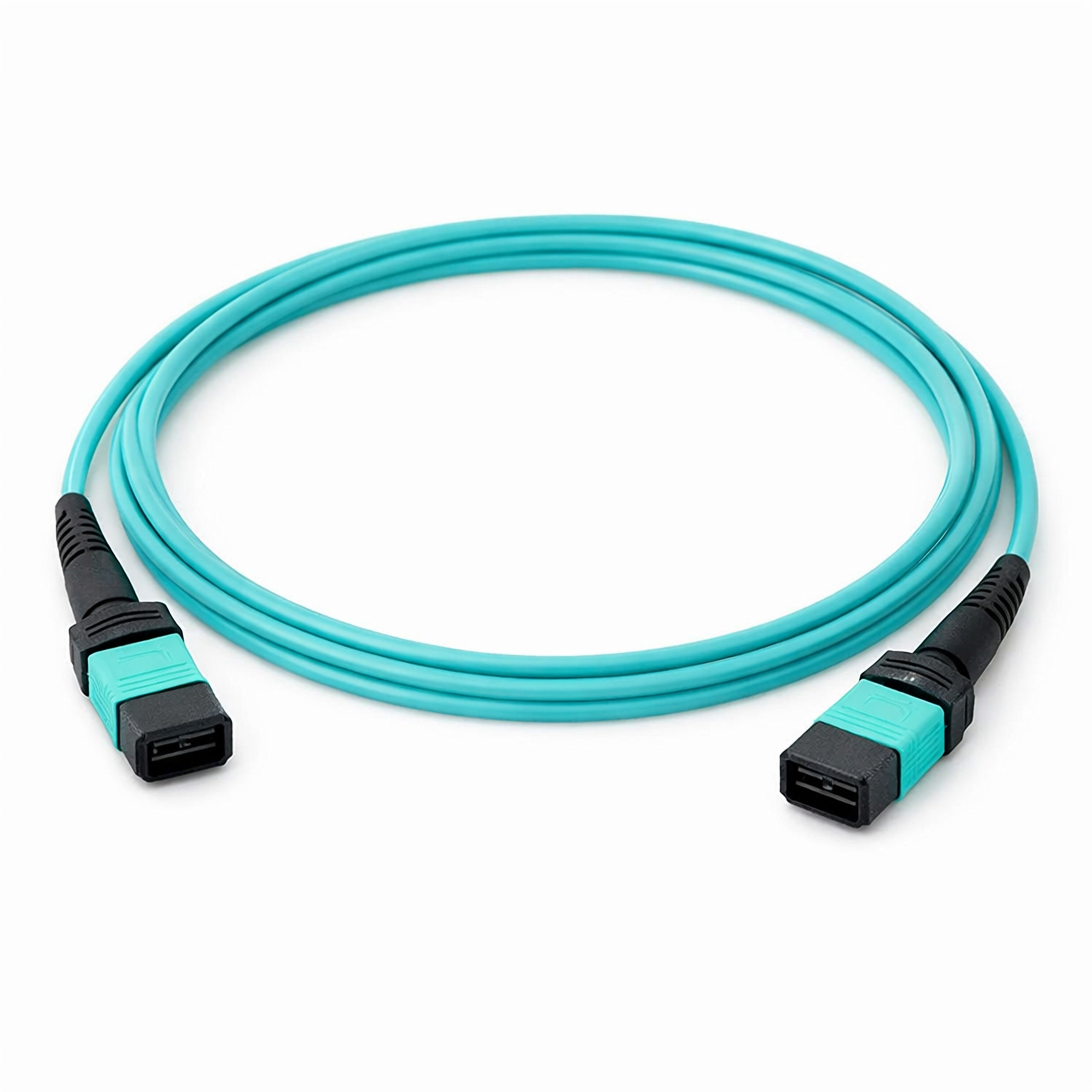

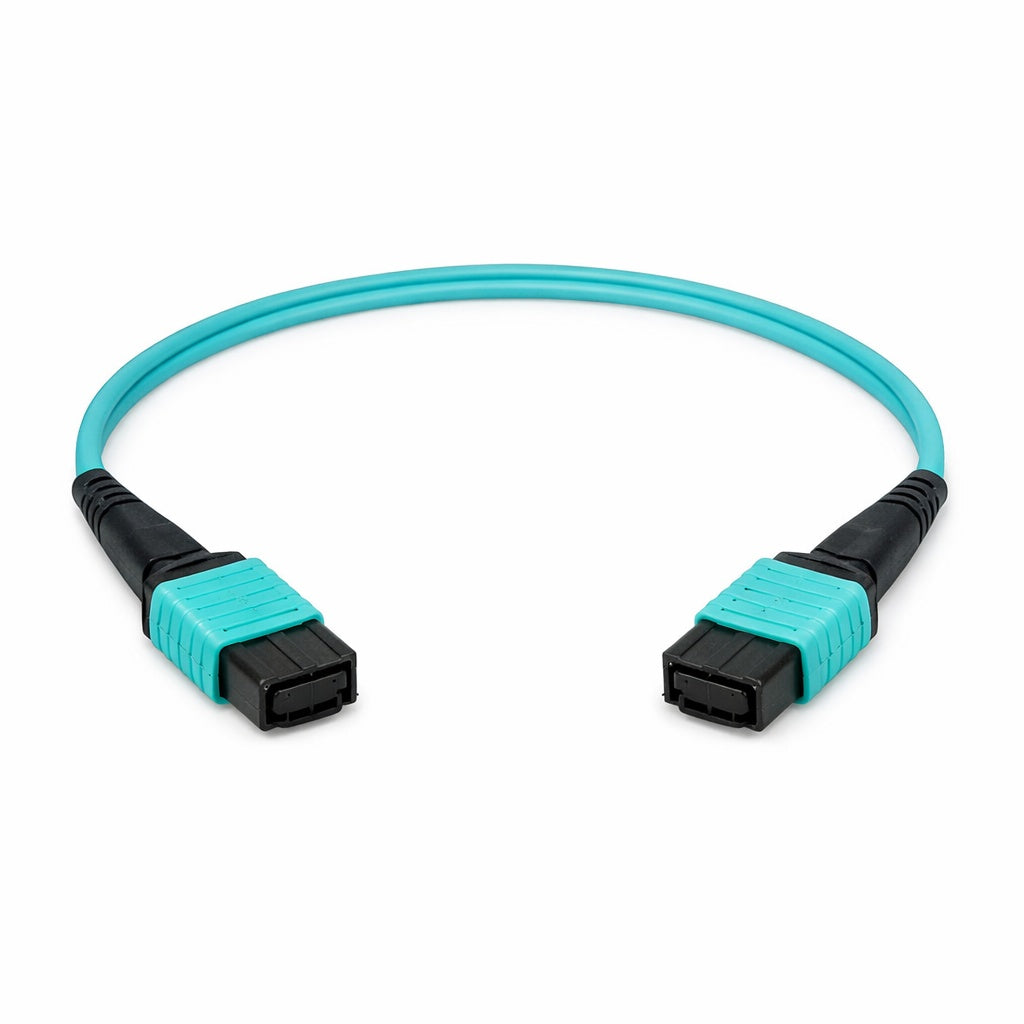

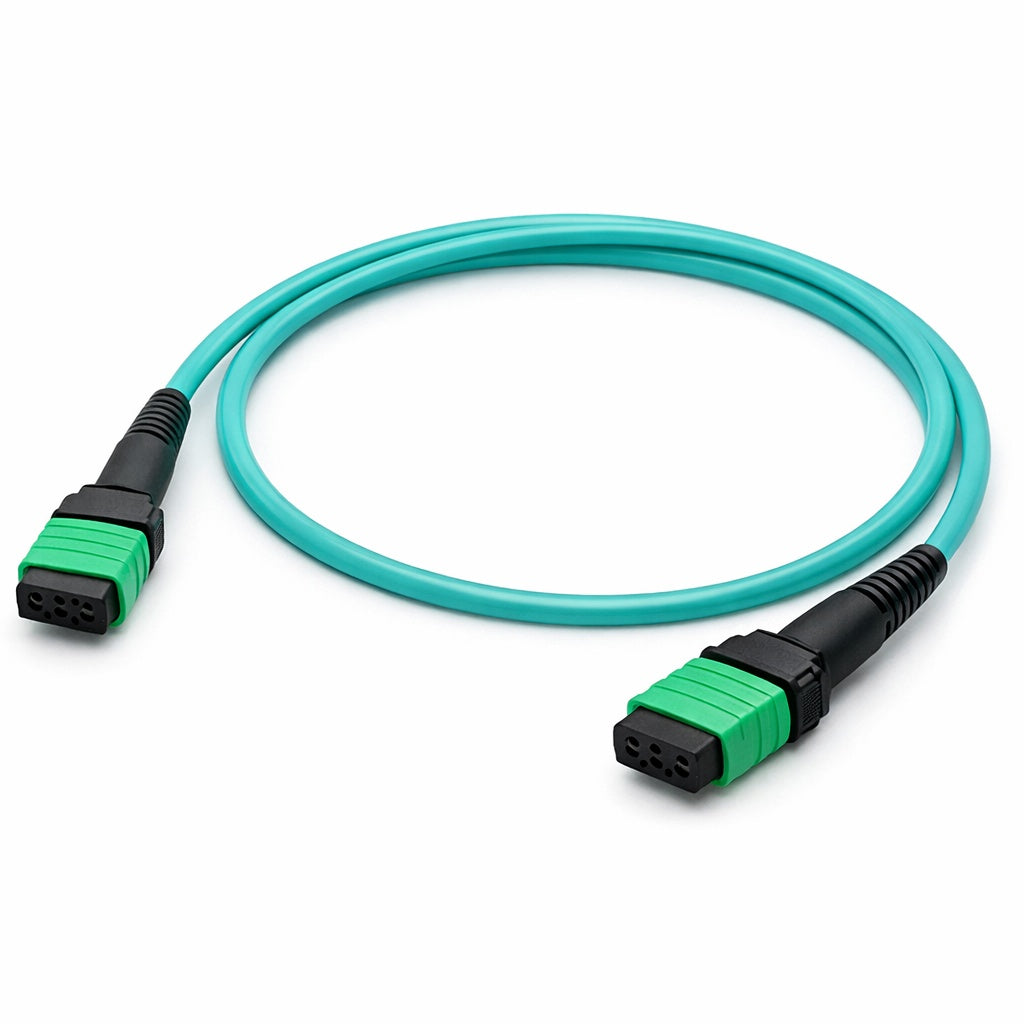

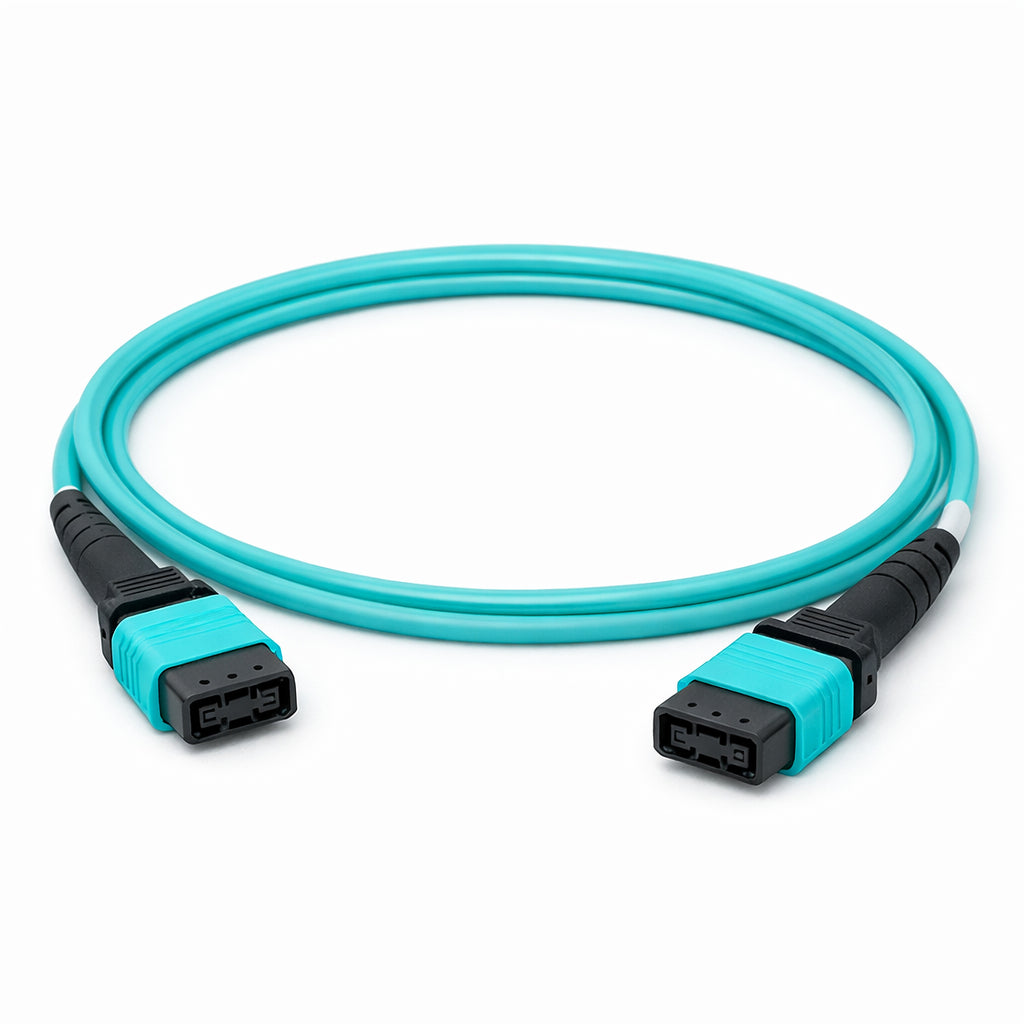

The MPO/MTP Female to Female Patch Cord is a high-density fiber optic cable designed for high-speed data transmission and backbone cabling applications in data centers, enterprise networks, and telecommunications systems. Featuring female (non-pinned) MPO/MTP connectors on both ends, this pre-terminated patch cord provides reliable connectivity, simplified cable management, and rapid deployment for modern optical networks.
Manufactured with premium optical fibers and precision-engineered MPO/MTP connectors, the cable delivers low insertion loss, excellent signal integrity, and dependable performance in mission-critical environments.
Key Features
High-Density Fiber Connectivity
Supports multiple fibers within a single MPO/MTP connector, maximizing port density and reducing cable congestion in high-density environments.
Plug-and-Play Installation
Factory pre-terminated and fully tested, eliminating field termination and significantly reducing installation time and labor costs.
Low Loss & Reliable Performance
Precision-polished connectors provide low insertion loss and excellent return loss, ensuring stable and efficient optical transmission.
Optimized for High-Speed Networks
Suitable for 40G, 100G, 200G, and 400G Ethernet applications, enabling scalable and future-ready network infrastructures.
Designed for Data Centers
Ideal for high-density data center cabling, cloud computing platforms, and enterprise backbone networks.
Specifications
| Specification |
Details |
| Product Type |
MPO/MTP Female to Female Patch Cord |
| Connector Type |
MPO/MTP Female to MPO/MTP Female |
| Fiber Count |
8F / 12F / 24F (Custom Available) |
| Fiber Type |
OS2, OM3, OM4, OM5 |
| Connector Gender |
Female (Non-Pinned) to Female (Non-Pinned) |
| Insertion Loss |
≤ 0.35 dB (Typical) |
| Return Loss |
≥ 50 dB (UPC), ≥ 60 dB (APC) |
| Jacket Material |
LSZH / PVC |
| Operating Temperature |
-20°C to +70°C |
| Cable Length |
Customizable |
Applications
- Data center backbone cabling
- High-density fiber patching systems
- 40G/100G/200G/400G Ethernet networks
- Cloud computing infrastructure
- Storage Area Networks (SAN)
- Telecommunications networks
- Data center interconnect (DCI)
Key Benefits
- High-density fiber management
- Simplified installation and maintenance
- Reduced deployment costs
- Stable and reliable optical performance
- Supports scalable and future-ready network expansion
Customization Options
- Fiber count: 8F / 12F / 24F
- Fiber type: OS2 / OM3 / OM4 / OM5
- Connector type: MPO or MTP®
- Polarity: Type A, Type B, Type C
- Jacket material: LSZH or PVC
- Custom cable lengths
- Labeling and private packaging available
- Factory test report provided upon request
