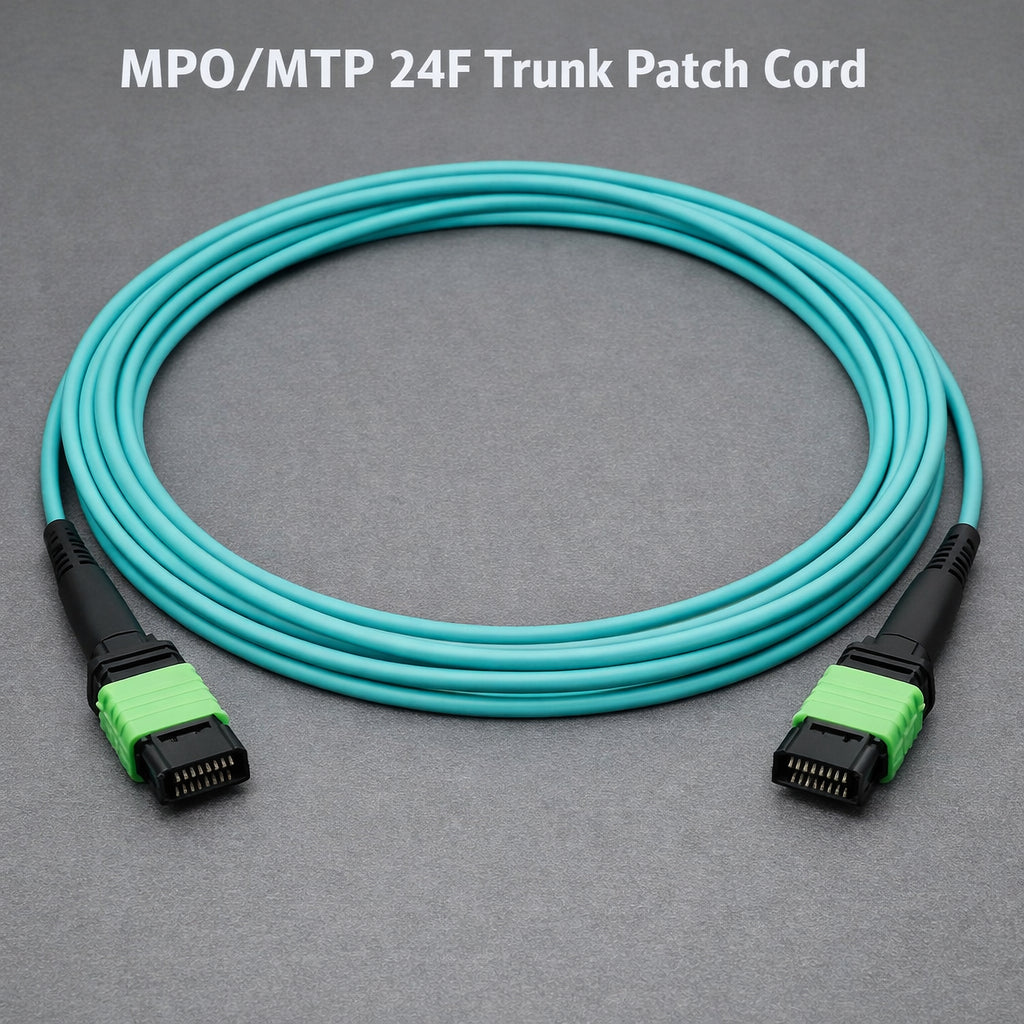

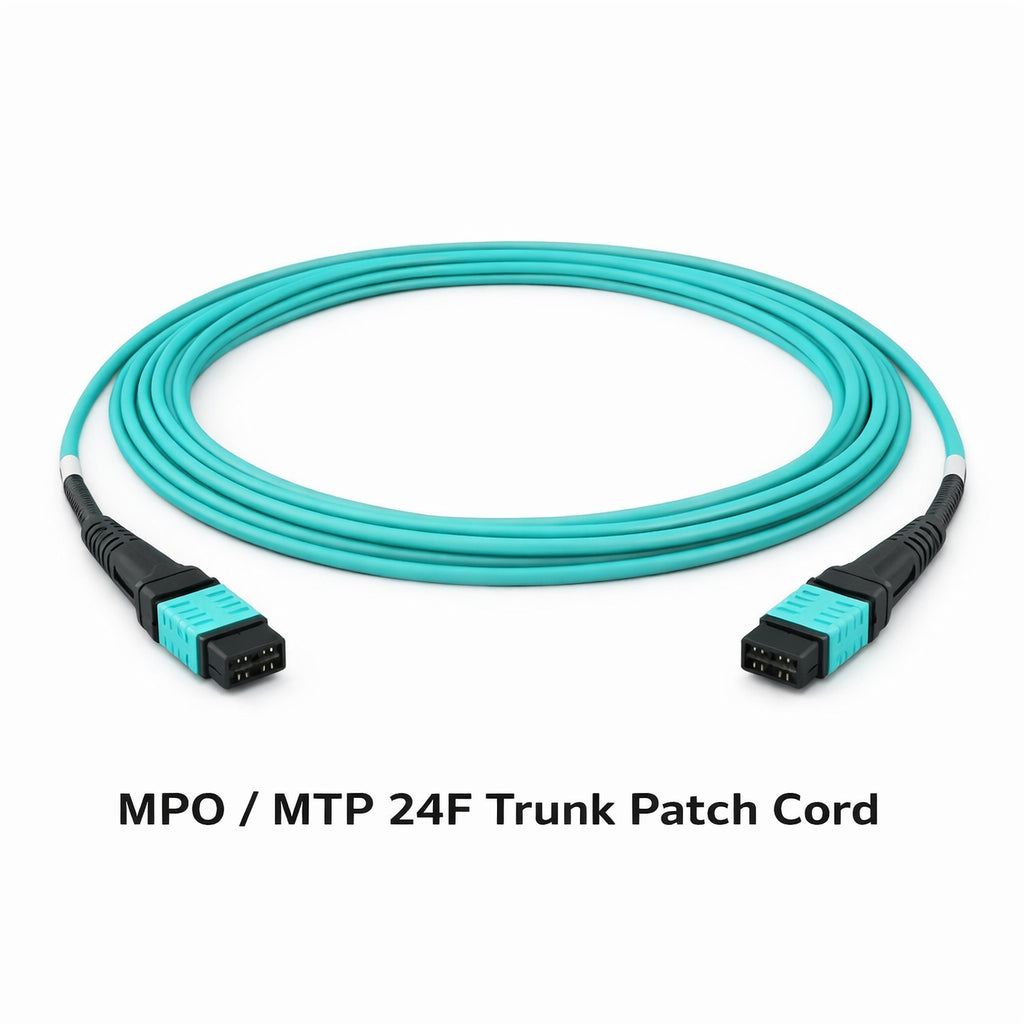

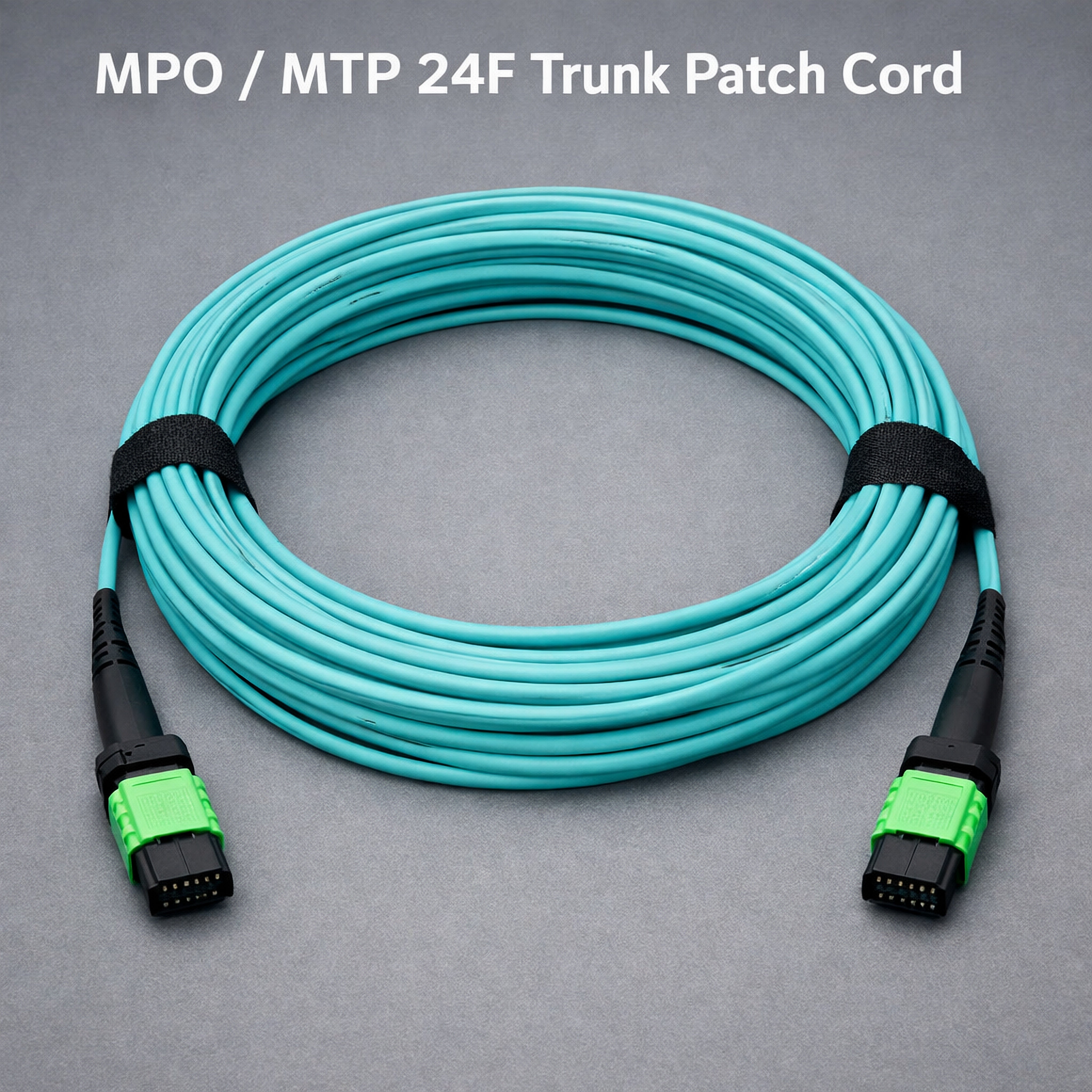

MPO/MTP 24F Trunk Patch Cord
Product Description
Product Overview
The MPO/MTP 24F Trunk Patch Cord is a high-density fiber optic cabling solution designed to support high-speed data transmission in modern data centers, cloud computing infrastructures, and telecommunications networks. Featuring 24 fibers in a single MPO/MTP connector on both ends, this pre-terminated trunk cable maximizes fiber density, simplifies cable management, and enables rapid network deployment.
Engineered with premium optical fibers and precision MPO/MTP connectors, the cable delivers low insertion loss, excellent signal integrity, and reliable performance for mission-critical applications and next-generation network architectures.
Key Features
Ultra-High Density Connectivity
Integrates 24 fibers into a single MPO/MTP connection, significantly increasing port density while minimizing cable congestion and saving valuable rack space.
Plug-and-Play Installation
Factory pre-terminated and 100% tested, eliminating field termination and reducing installation time and deployment costs.
Low Loss & High Reliability
Precision-polished connectors ensure low insertion loss and high return loss for stable, high-speed optical transmission.
Supports Next-Generation Networks
Ideal for 40G, 100G, 200G, and 400G Ethernet applications, enabling scalable and future-ready network infrastructures.
Flexible Configuration
Available in single-mode and multimode fiber options with multiple connector types, polarity methods, and custom cable lengths.
Specifications
| Specification |
Details |
| Product Type |
MPO/MTP Trunk Patch Cord |
| Fiber Count |
24 Fibers (24F) |
| Connector Type |
MPO/MTP to MPO/MTP |
| Fiber Type |
OS2, OM3, OM4, OM5 |
| Connector Gender |
Male (Pinned) / Female (Non-Pinned) |
| Insertion Loss |
≤ 0.35 dB (Typical) |
| Return Loss |
≥ 50 dB (UPC), ≥ 60 dB (APC) |
| Jacket Material |
LSZH / PVC |
| Operating Temperature |
-20°C to +70°C |
| Cable Length |
Customizable |
Applications
- High-density data center backbone cabling
- 40G/100G/200G/400G Ethernet networks
- Spine-leaf architecture deployments
- Cloud computing infrastructure
- Storage Area Networks (SAN)
- Telecommunications and enterprise backbone networks
- Data center interconnect (DCI)
Key Benefits
- Maximizes fiber density and rack space utilization
- Simplifies cable management and deployment
- Reduces installation and maintenance costs
- Provides stable and reliable optical performance
- Supports scalable and future-proof network expansion
Customization Options
- Fiber type: OS2 / OM3 / OM4 / OM5
- Connector type: MPO or MTP®
- Connector gender: Male or Female
- Polarity: Type A, Type B, Type C
- Jacket material: LSZH or PVC
- Custom cable lengths
- Labeling and private packaging available
- Factory test report provided upon request
