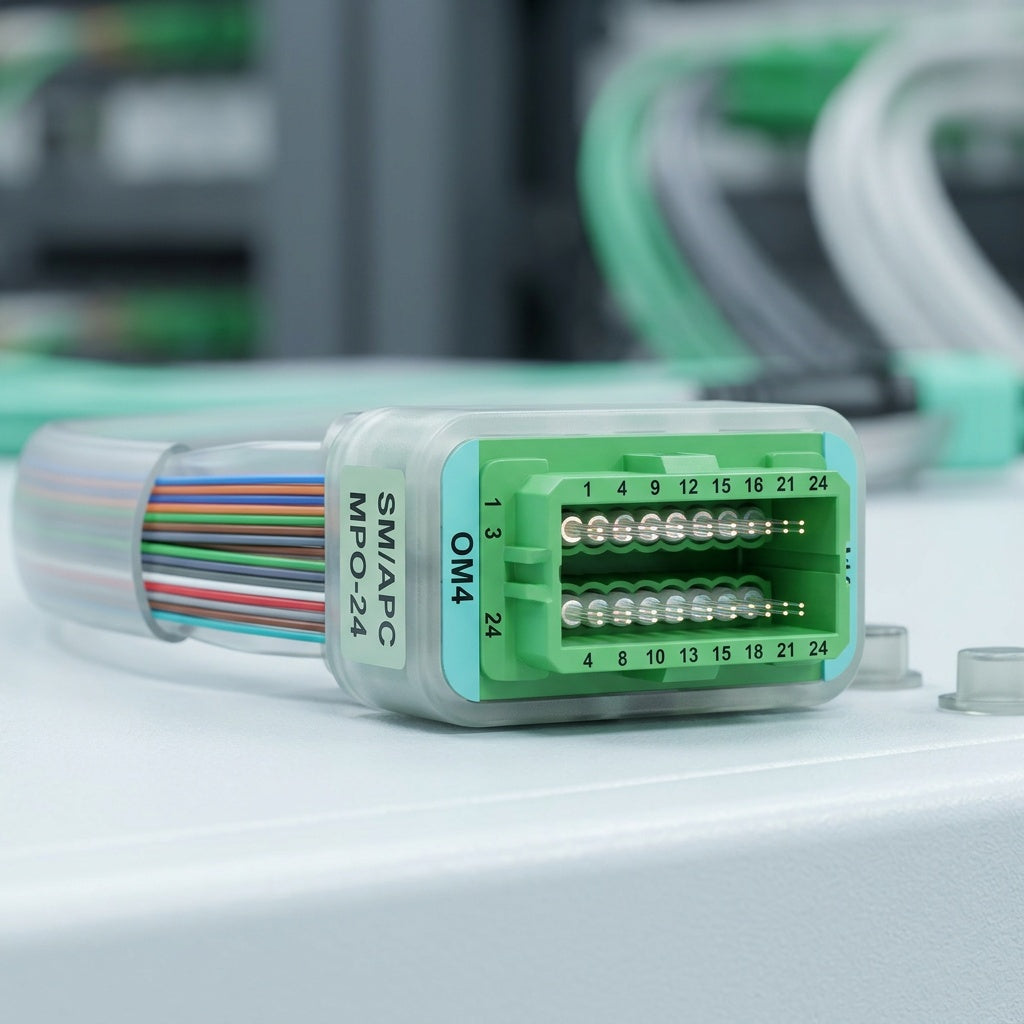

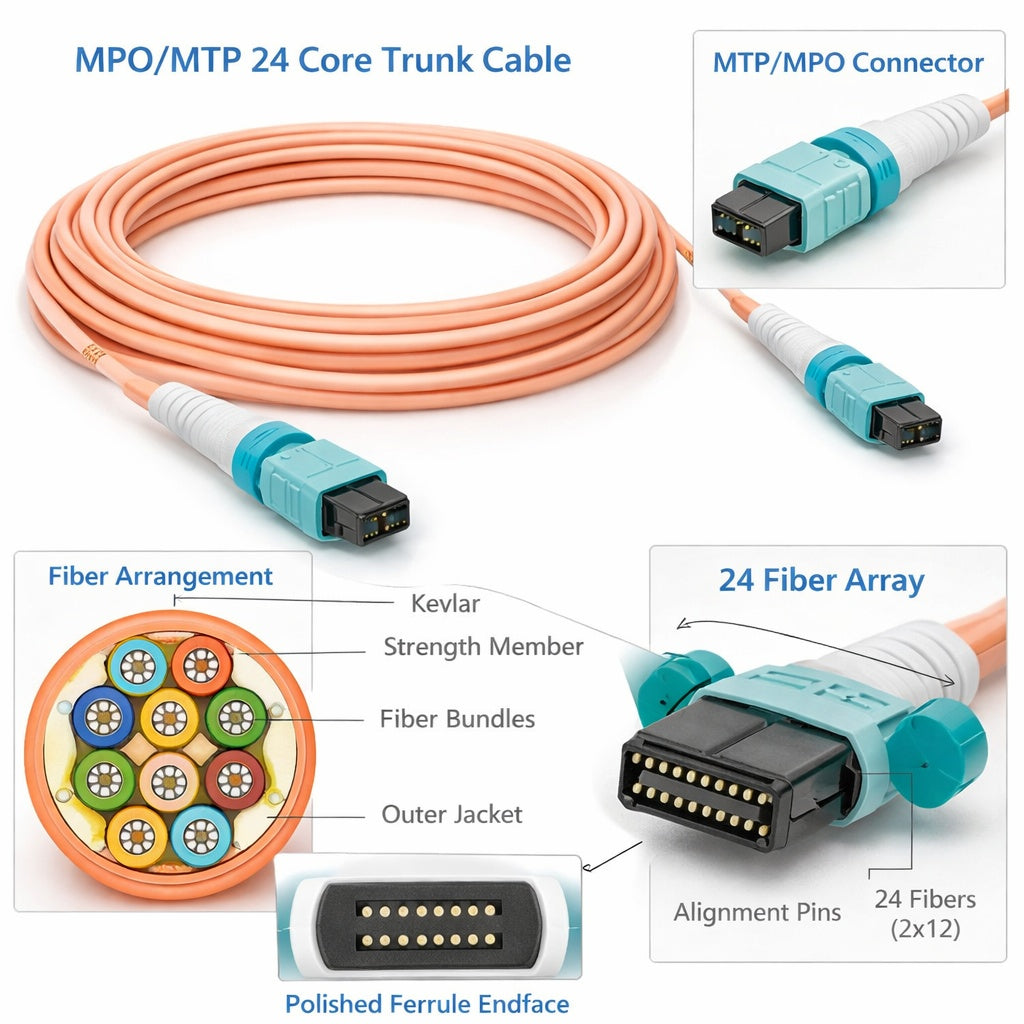

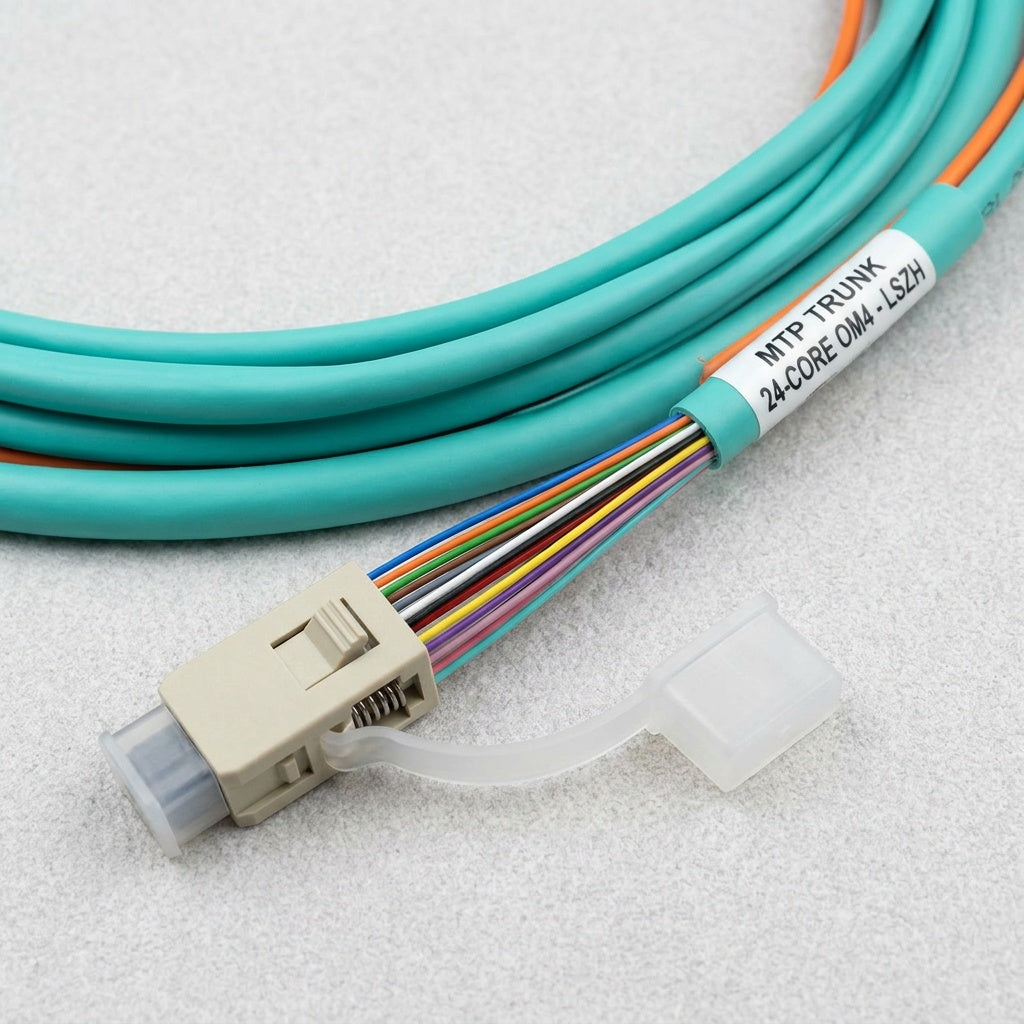

MPO/MTP 24 Core Trunk Cable
Ultra High-Density Backbone Solution for Next-Generation Data Centers
The MPO/MTP 24 Core Trunk Cable is engineered for ultra high-density fiber optic interconnection in hyperscale data centers, cloud computing environments, and AI-driven infrastructure. Compared with traditional 12-fiber solutions, the 24-core design significantly increases bandwidth capacity and improves cabling efficiency in high-density patching systems.
Pre-terminated with precision MPO/MTP connectors, this trunk cable supports fast deployment, low insertion loss, and reliable performance for 100G, 400G, and emerging high-speed network architectures.
Key Features
- MPO/MTP 24 Fiber High-Density Connector System
- Supports 100G / 400G High-Speed Networks
- Pre-Terminated Factory Assembly for Fast Deployment
- Low Insertion Loss and High Return Loss Performance
- Ideal for Ultra High-Density Data Center Cabling
- Available in OS2, OM3, OM4 Fiber Options
- Plug-and-Play Installation Reduces Labor Cost
- RoHS and REACH Compliant

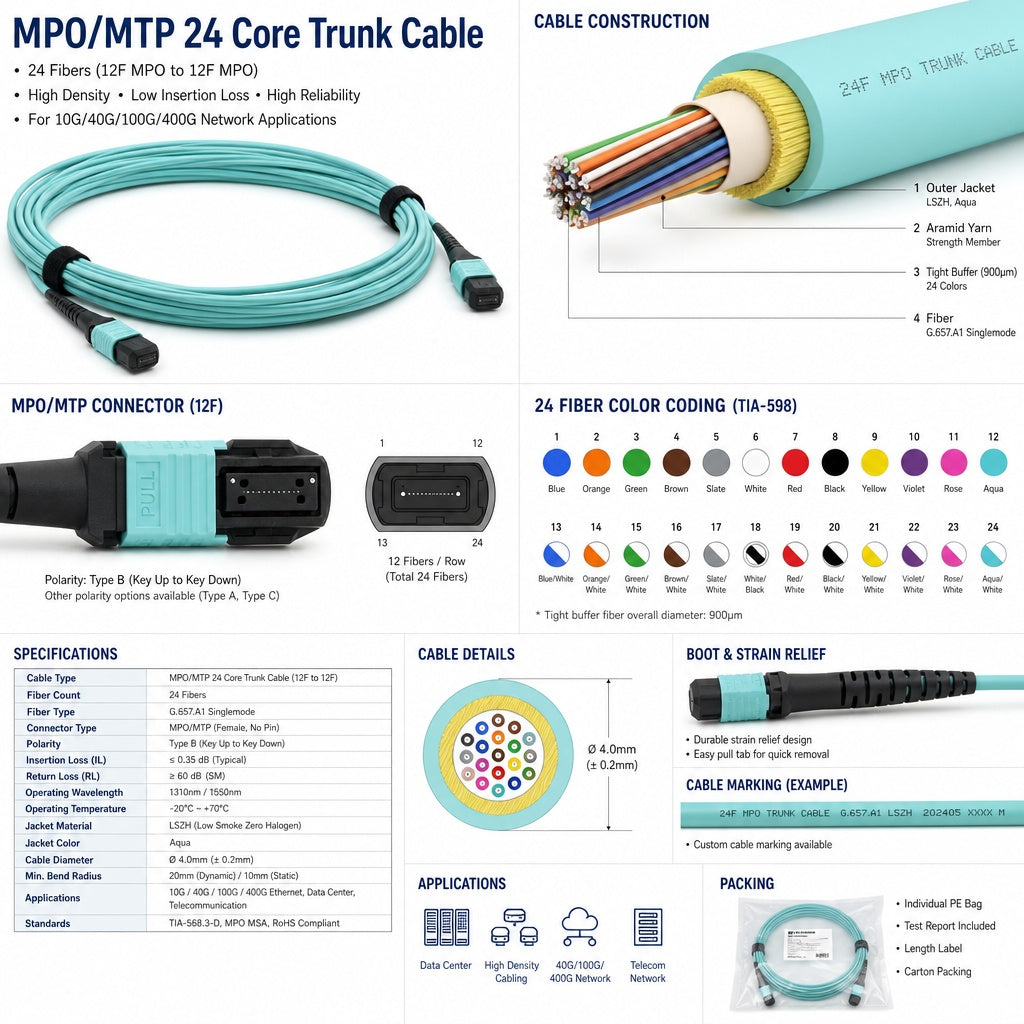

Technical Specifications
- Fiber Count: 24 Fibers
- Connector Type: MPO/MTP Male or Female
- Fiber Type: OS2 / OM3 / OM4
- Polish Type: UPC
- Insertion Loss: ≤ 0.35 dB (Standard), Elite Low-Loss Optional
- Return Loss: ≥ 60 dB (Single Mode)
- Jacket Material: LSZH / OFNP / OFNR
- Operating Temperature: -20°C to +70°C
- Standard Lengths: 1m, 3m, 5m, 10m, Custom Length Available
Applications
- Hyperscale Data Centers
- Cloud Computing Infrastructure
- AI & Machine Learning Clusters
- 100G / 400G Ethernet Networks
- High-Density Switch Interconnects
- Backbone Fiber Distribution Systems
- Next-Generation Network Architectures
Polarity Options
- Type A (Straight Through)
- Type B (Cross Connection)
- Type C (Pair Reversal)
MPO/MTP High-Density Advantages
✔ Supports higher fiber count per connector
✔ Maximizes rack space utilization
✔ Reduces cable congestion in data centers
✔ Enables faster network scaling and upgrades
✔ Ideal for hyperscale and AI workloads
OEM & Customization
We offer full OEM/ODM capabilities:
- Custom fiber type (OS2 / OM3 / OM4)
- Elite low-loss MPO/MTP connectors
- Custom polarity configuration
- Custom cable lengths
- Private label packaging
- Custom labeling and project-specific marking
Why Choose Our MPO/MTP 24 Core Trunk Cable?
Our MPO/MTP 24 core solutions are designed for mission-critical infrastructure requiring maximum density and performance. With precision manufacturing and strict quality control, this cable ensures stable optical performance, scalability, and long-term reliability for advanced data center environments.
