Product Description
Product Overview

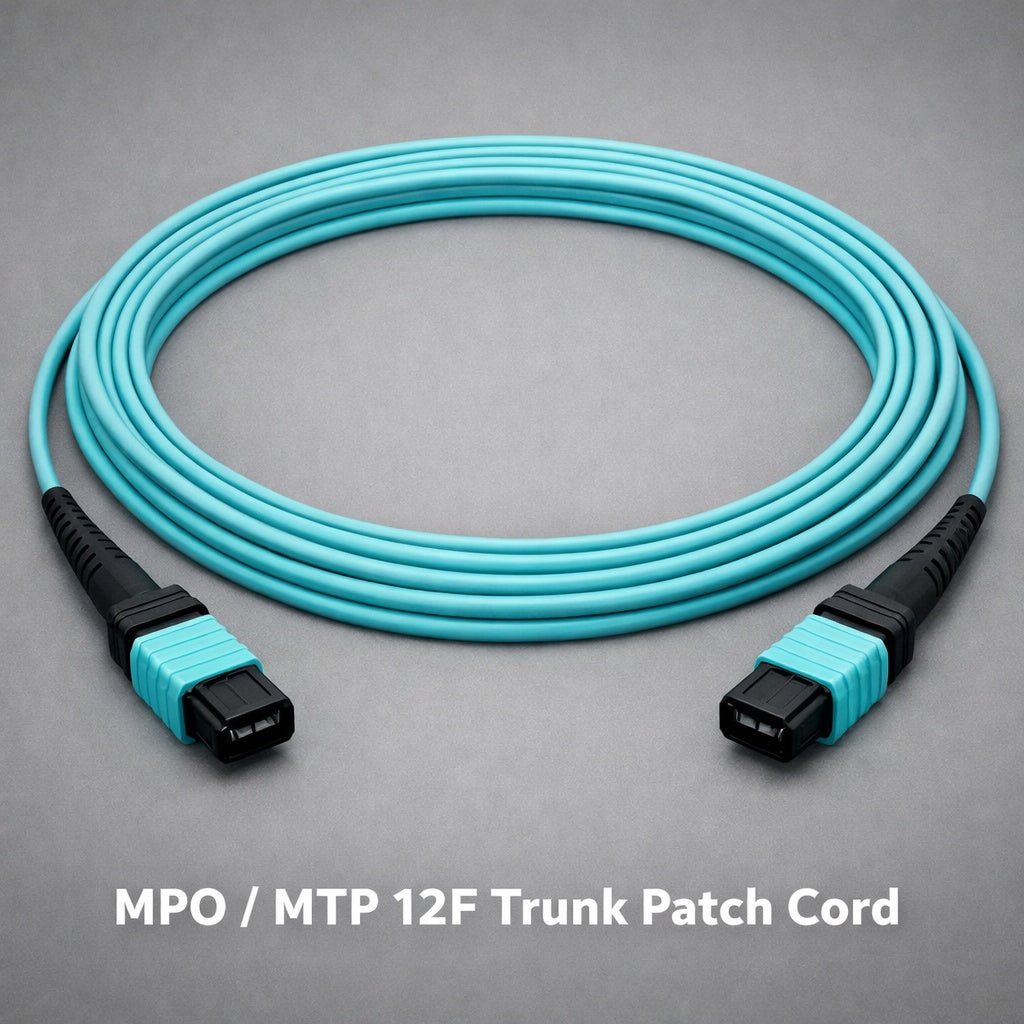

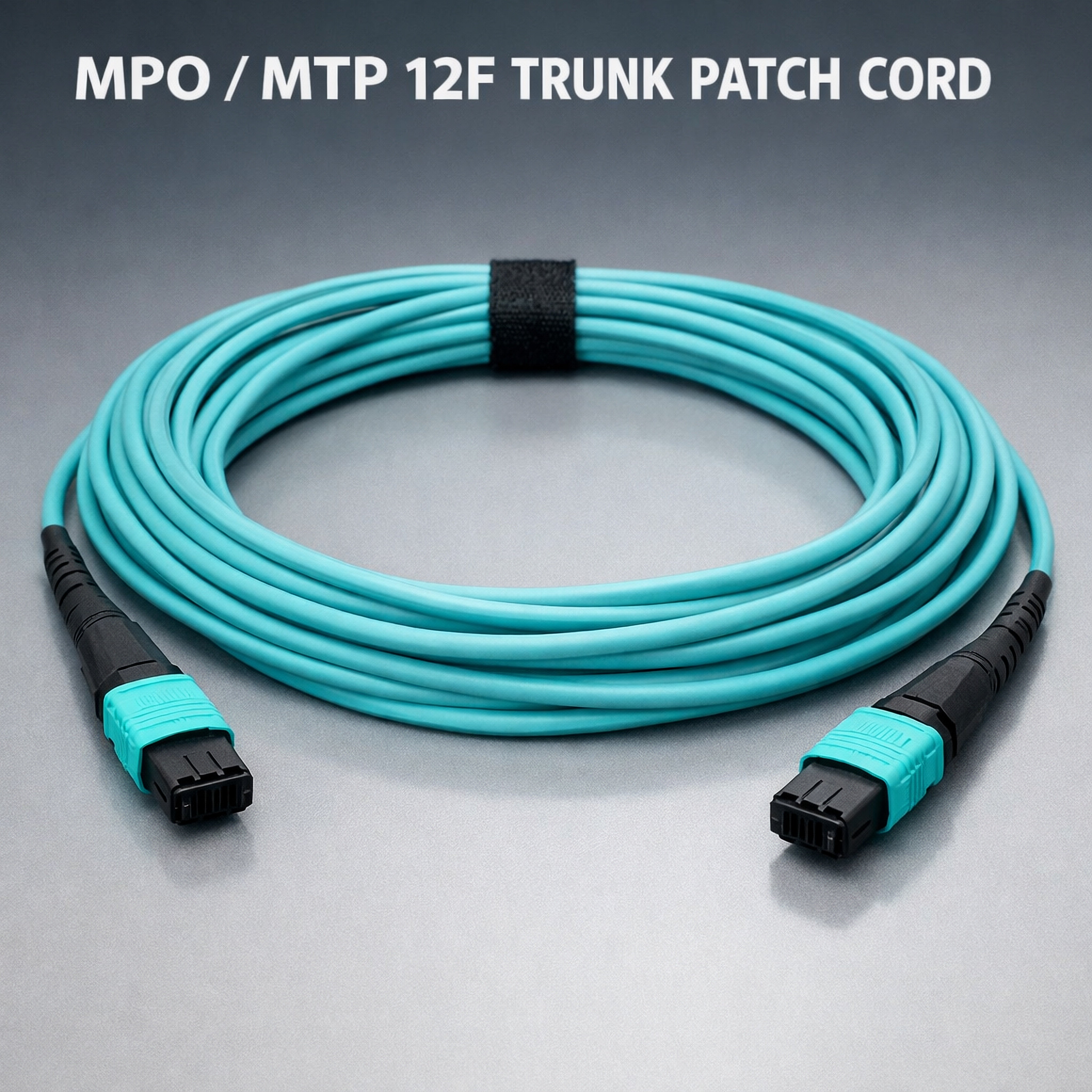

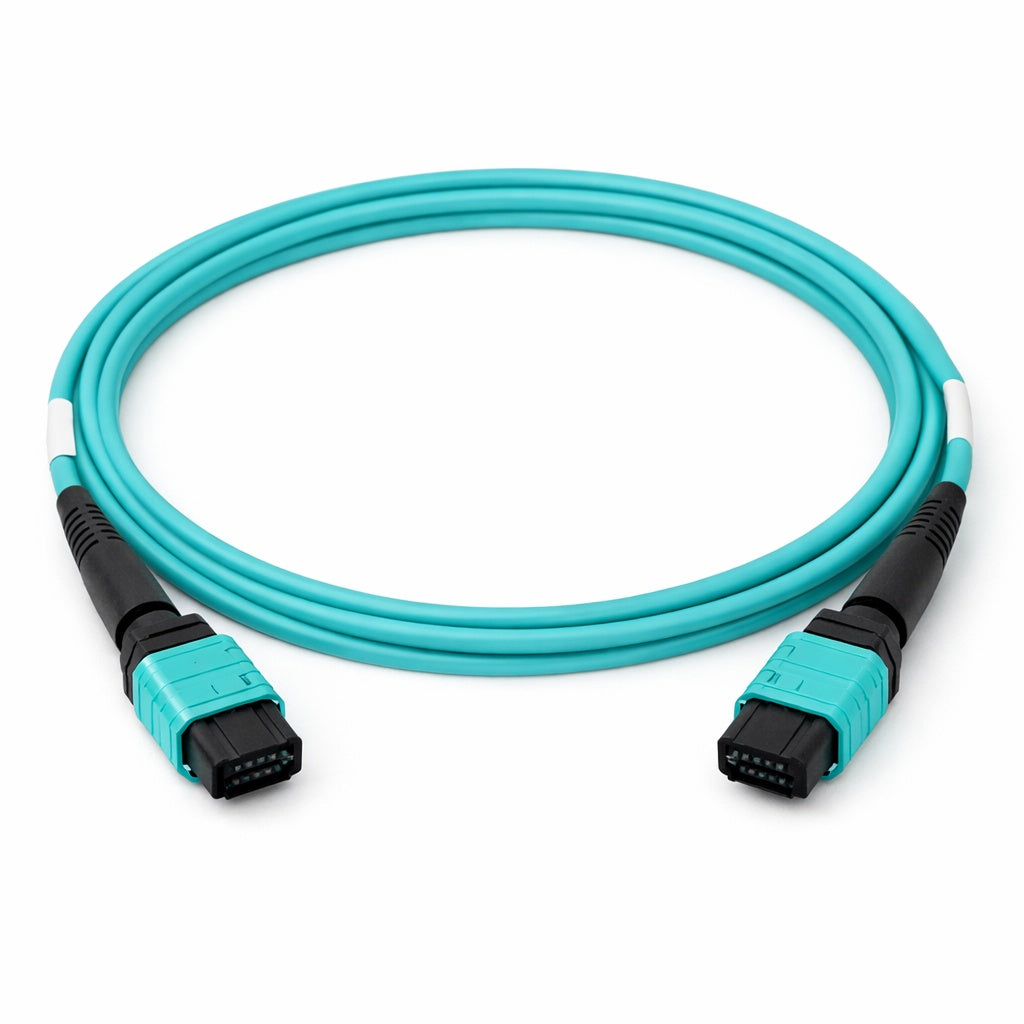

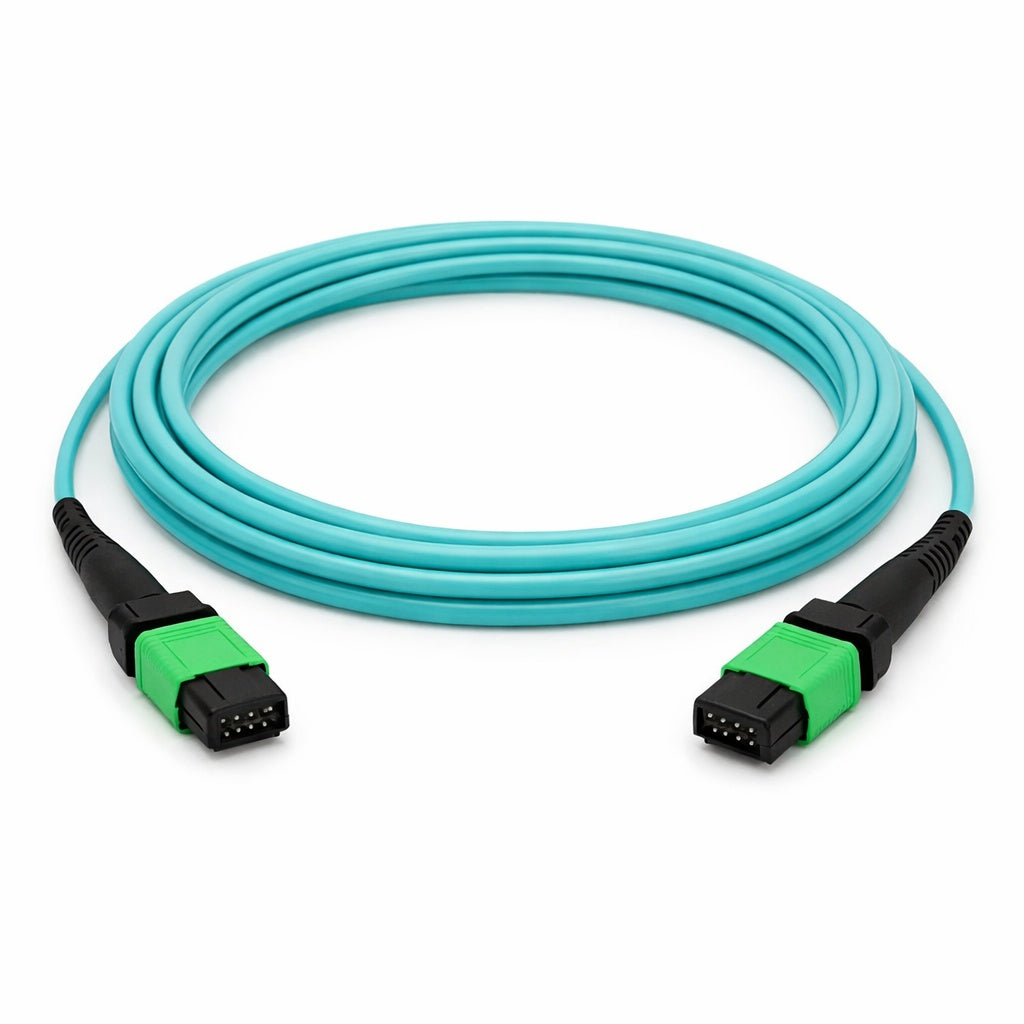

The MPO/MTP 12F Trunk Patch Cord is a high-density fiber optic cabling solution designed for high-speed data transmission in data centers, enterprise networks, and telecommunications infrastructures. Featuring a 12-fiber MPO/MTP connector on both ends, this pre-terminated trunk cable enables rapid deployment, simplified cable management, and efficient network scalability.
Manufactured with premium optical fibers and precision-engineered connectors, the cable delivers low insertion loss, reliable performance, and excellent signal integrity for mission-critical applications.
Key Features
High-Density Connectivity
Integrates 12 fibers into a single MPO/MTP connector, significantly reducing cable congestion and maximizing rack space utilization.
Plug-and-Play Deployment
Factory pre-terminated and fully tested, eliminating field termination and reducing installation time and labor costs.
Low Loss & High Performance
Precision-polished connectors provide low insertion loss and high return loss for stable and reliable optical transmission.
Designed for Data Centers
Optimized for high-density data center environments, supporting efficient migration to 40G, 100G, 200G, and 400G networks.
🛠 Flexible Configuration
Available in single-mode and multimode fiber types, multiple cable lengths, and male or female MPO/MTP connector configurations.
Specifications
| Specification |
Details |
| Product Type |
MPO/MTP Trunk Patch Cord |
| Fiber Count |
12 Fibers (12F) |
| Connector Type |
MPO/MTP to MPO/MTP |
| Fiber Type |
OS2, OM3, OM4, OM5 |
| Connector Gender |
Male (Pinned) / Female (Non-Pinned) |
| Insertion Loss |
≤ 0.35 dB (Typical) |
| Return Loss |
≥ 50 dB (UPC), ≥ 60 dB (APC) |
| Jacket Material |
LSZH / PVC |
| Operating Temperature |
-20°C to +70°C |
| Cable Length |
Customizable |
Applications
- Data center backbone cabling
- 40G/100G/200G/400G Ethernet networks
- Spine-leaf architecture deployments
- Cloud computing infrastructure
- Storage Area Networks (SAN)
- Telecommunications and enterprise backbone networks
Key Benefits
- High-density fiber management
- Reduced installation time and cost
- Excellent optical performance
- Scalable and future-ready infrastructure
- Reliable operation in mission-critical environments
Customization Options
- Fiber type: OS2 / OM3 / OM4 / OM5
- Connector type: MPO or MTP®
- Connector gender: Male or Female
- Polarity: Type A, Type B, Type C
- Jacket material: LSZH or PVC
- Custom cable lengths
- Labeling and private packaging available
- Factory test report provided upon request
