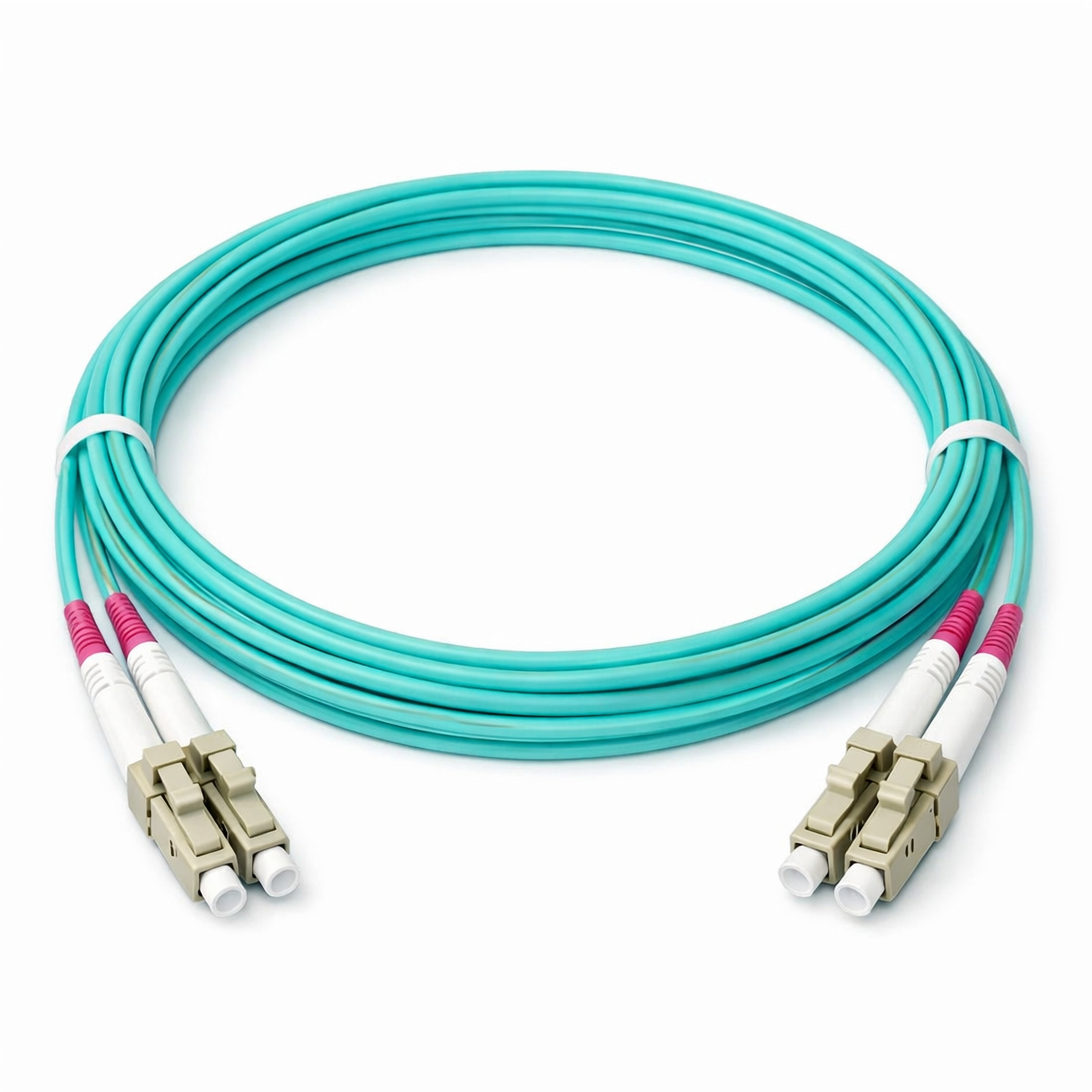

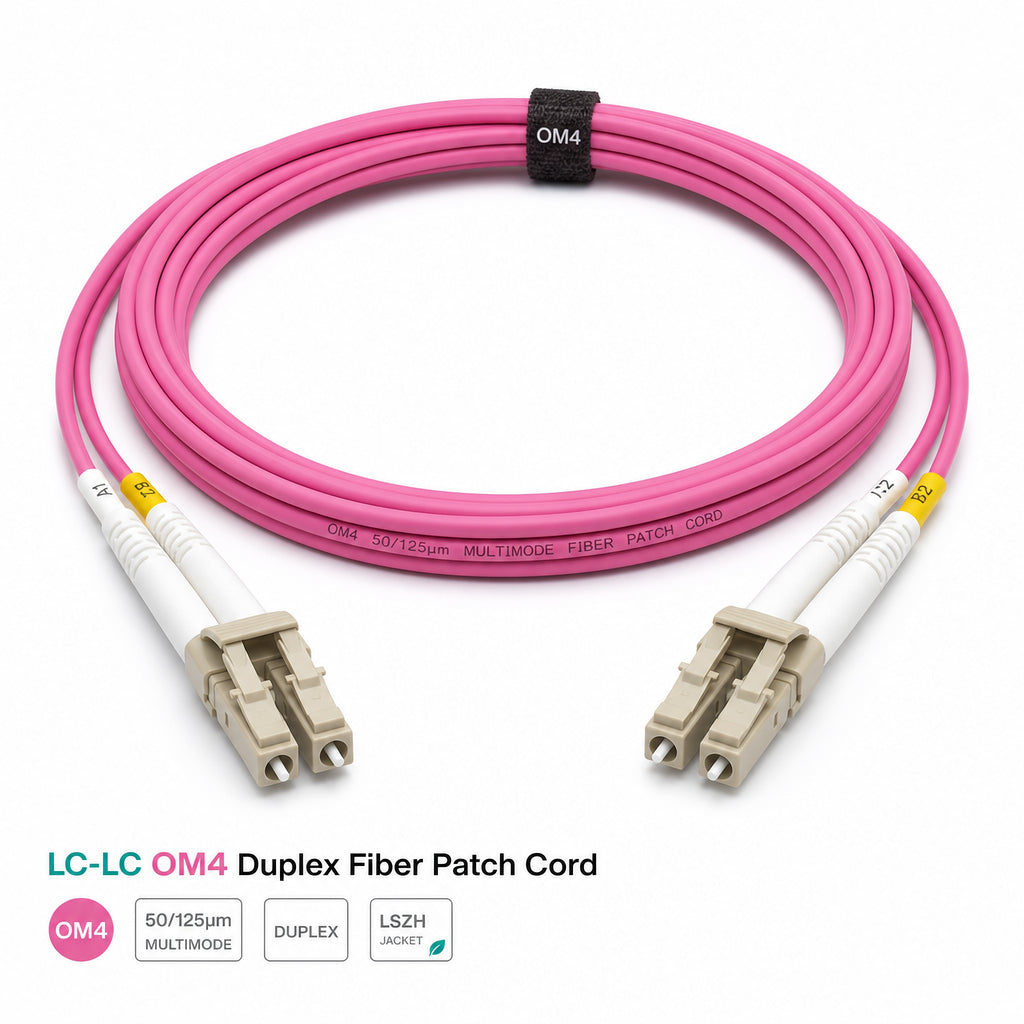

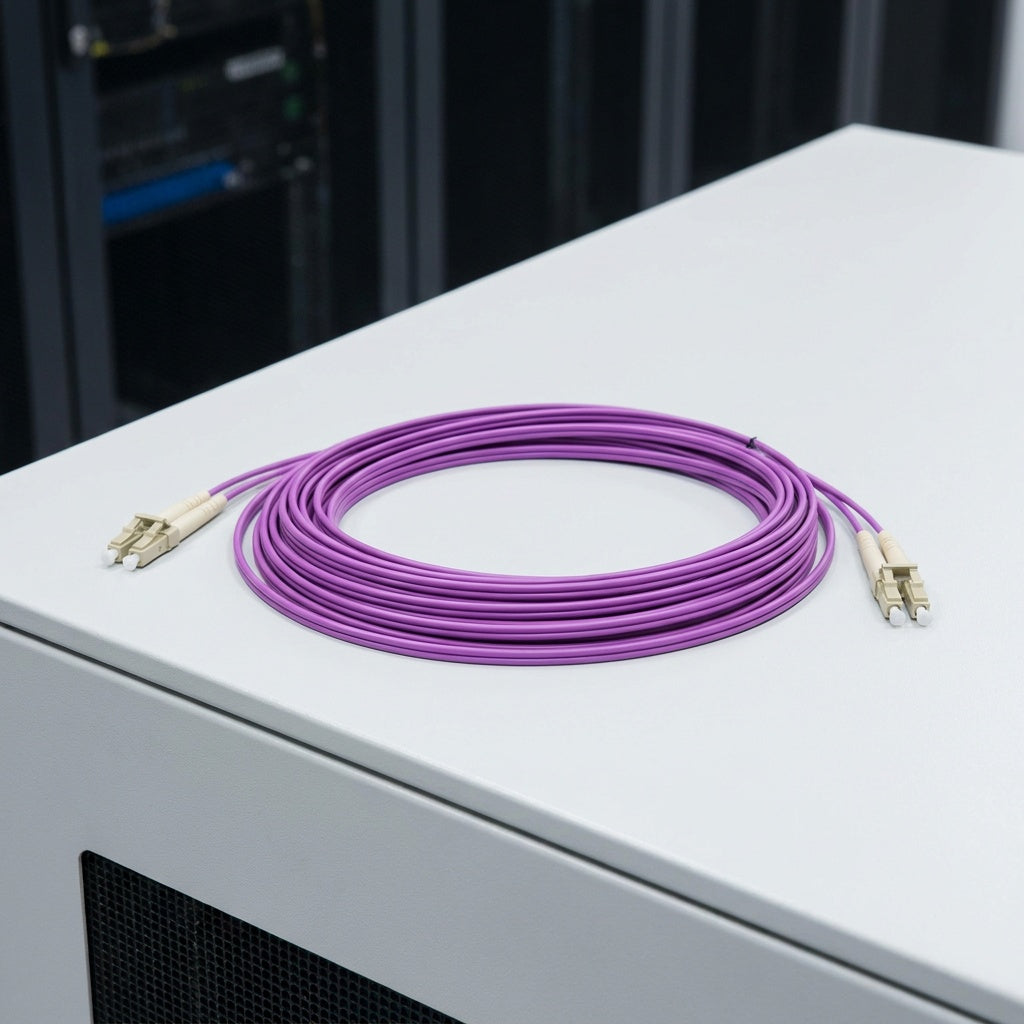

LC-LC OM4 Duplex Fiber Patch Cord
High-Density Multimode Fiber Solution for Data Centers and High-Speed Networks
The LC-LC OM4 Duplex Fiber Patch Cord is designed for high-bandwidth and ultra-fast optical networking applications. Manufactured with premium OM4 50/125μm multimode fiber and precision LC duplex connectors, this patch cord delivers excellent optical performance, low insertion loss, and reliable high-speed transmission in demanding network environments.
Featuring compact LC connectors and duplex construction, the OM4 patch cord is ideal for high-density cabling systems and next-generation data center infrastructures. It supports high-speed Ethernet and storage applications, making it an excellent solution for cloud computing, server interconnections, and enterprise networks requiring superior bandwidth performance.
Key Features
- OM4 Multimode Fiber (50/125μm)
- LC-LC Duplex Configuration
- Low Insertion Loss and High Return Loss
- High Bandwidth and Reliable Data Transmission
- Compact LC Connectors for High-Density Cabling
- Available in PVC and LSZH Jacket
- RoHS and REACH Compliant
Technical Specifications
- Fiber Type: OM4 Multimode (50/125μm)
- Connector Type: LC-LC Duplex
- Connector Polish: UPC
- Insertion Loss: ≤ 0.3 dB
- Return Loss: ≥ 30 dB
- Jacket Material: PVC / LSZH
- Standard Lengths: 1m, 2m, 3m, 5m, 10m or Customized
Applications
- Data Centers
- Cloud Computing Infrastructure
- Enterprise Networks
- Storage Area Networks (SAN)
- Server and Switch Interconnections
- High-Density Fiber Cabling Systems
OEM & Customization
OEM and ODM services are available, including custom cable lengths, jacket colors, cable printing, and private label packaging.
The LC-LC OM4 Duplex Fiber Patch Cord provides a reliable and cost-effective solution for modern high-speed optical networks, delivering excellent bandwidth performance and stable connectivity for mission-critical applications.
