High-Speed Multimode Fiber Connectivity for Data Centers and Enterprise Networks

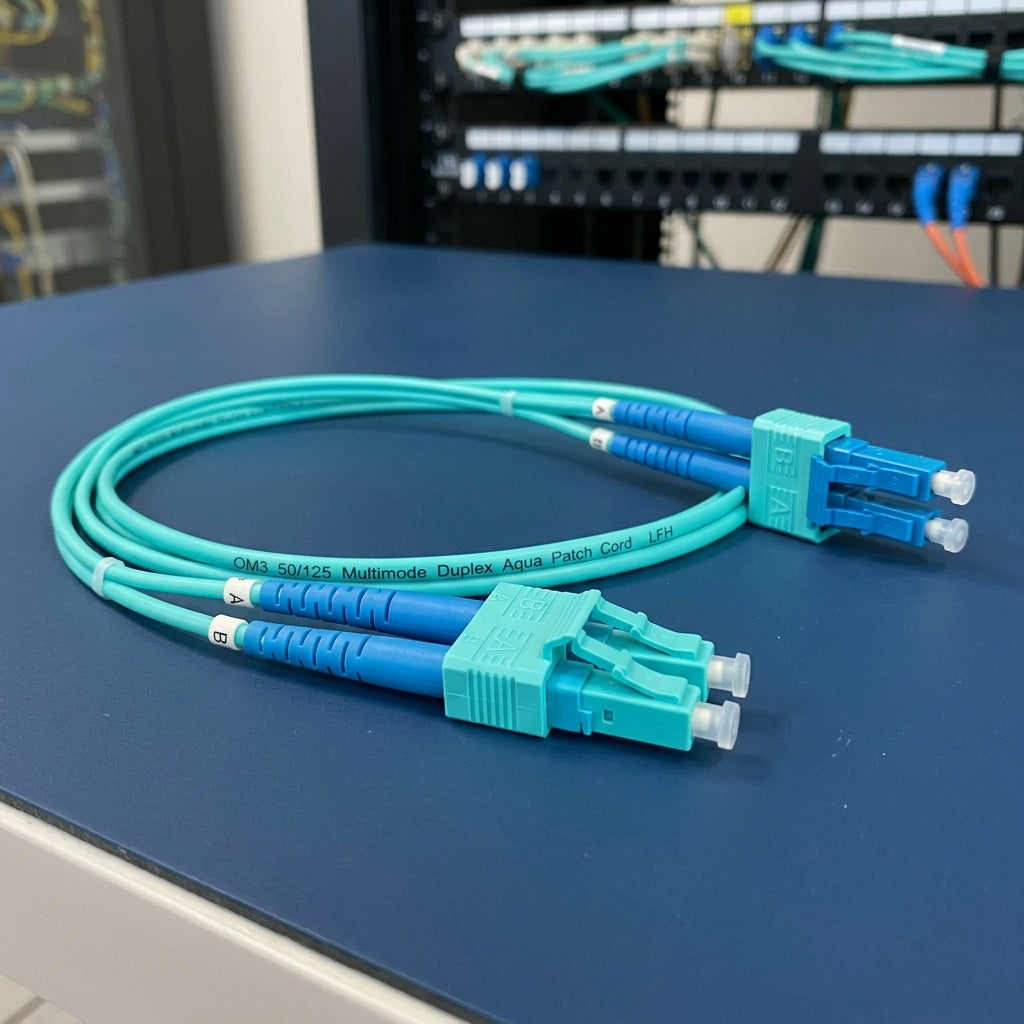

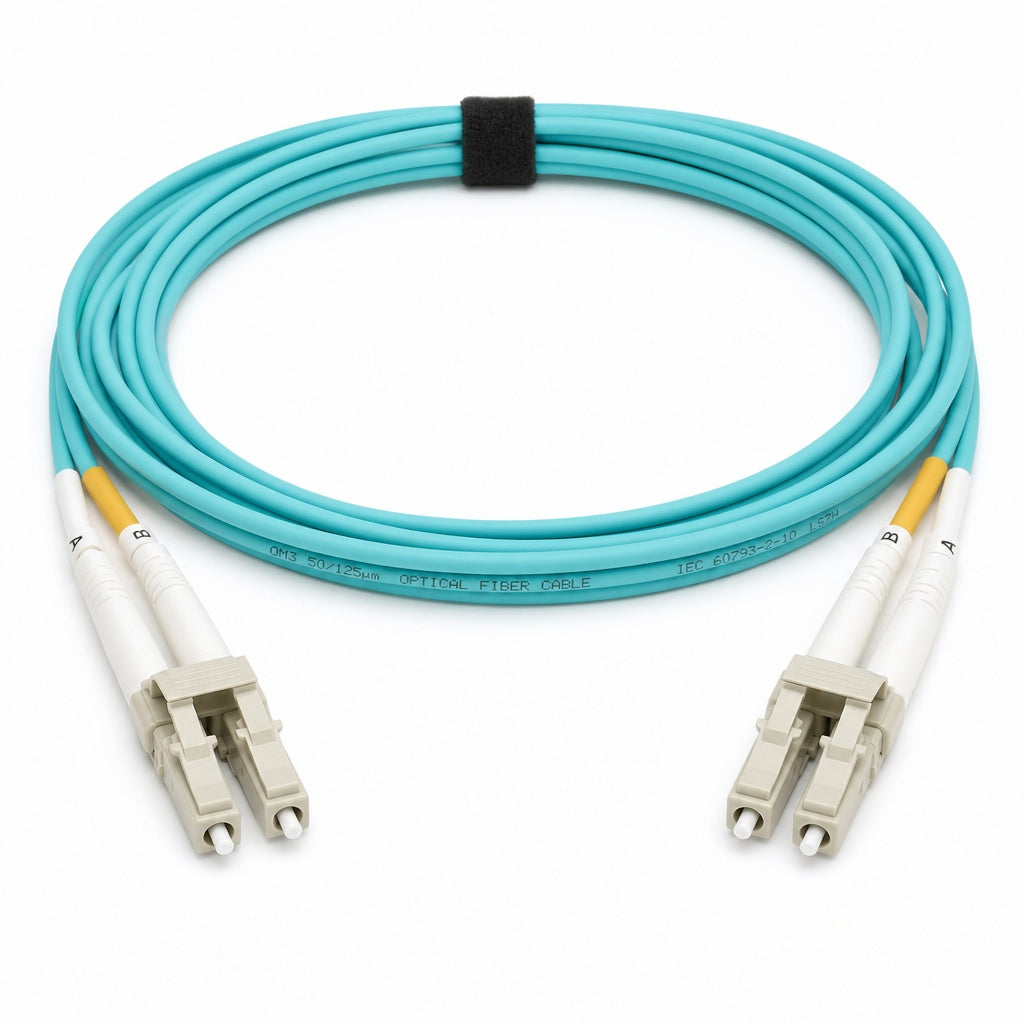

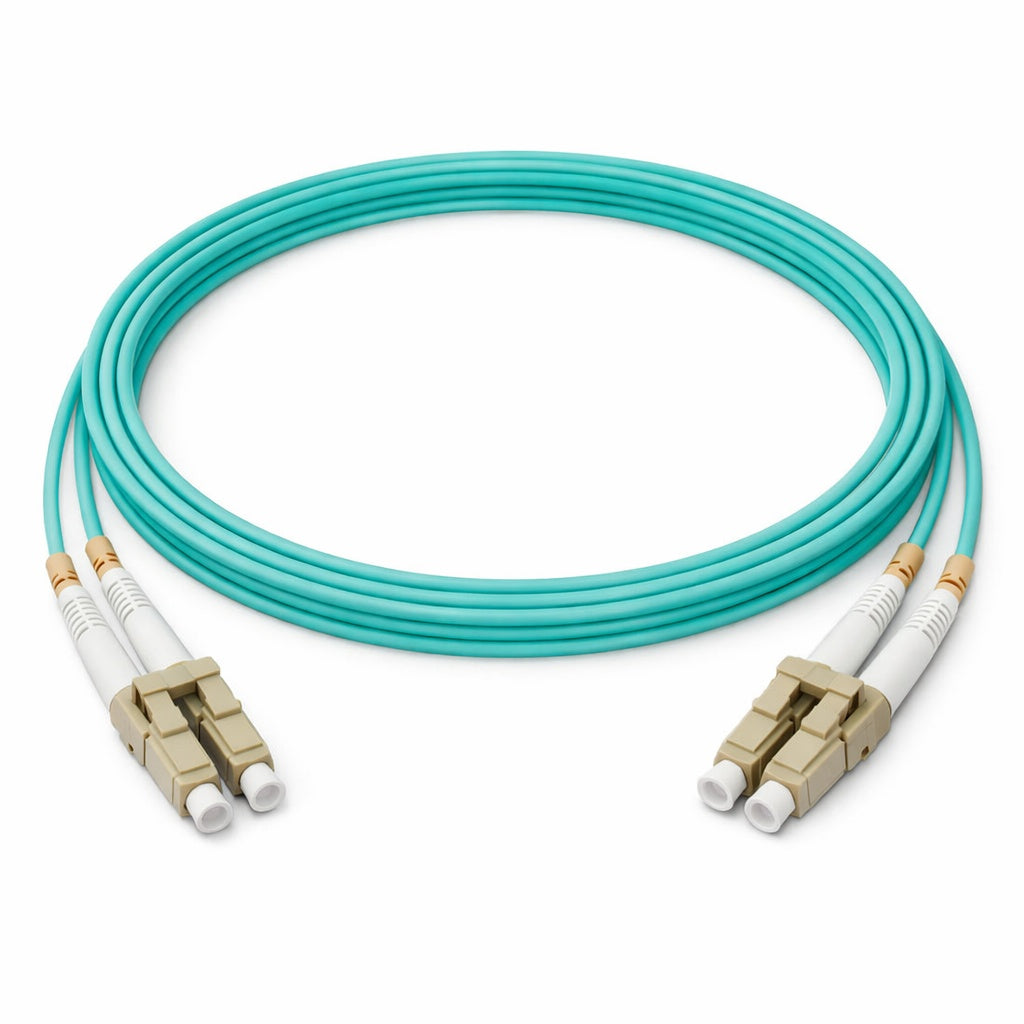

The LC-LC OM3 Duplex Fiber Patch Cord is designed for high-bandwidth and high-speed optical networking applications. Manufactured with premium OM3 50/125μm multimode fiber and precision LC duplex connectors, this patch cord delivers excellent transmission performance and low insertion loss for modern data center environments.
Featuring compact LC connectors and duplex construction, it is ideal for high-density fiber cabling systems requiring reliable connectivity and efficient cable management. The OM3 fiber supports high-speed Ethernet applications and provides excellent performance for short- to medium-distance transmission in enterprise and cloud infrastructure.
Key Features
-
OM3 Multimode Fiber (50/125μm)
-
LC-LC Duplex Configuration
-
Low Insertion Loss and High Return Loss
-
Supports High-Speed Ethernet Applications
-
Compact LC Connectors for High-Density Cabling
-
Available in PVC and LSZH Jacket
-
RoHS and REACH Compliant
Technical Specifications
-
Fiber Type: OM3 Multimode (50/125μm)
-
Connector Type: LC-LC Duplex
-
Connector Polish: UPC
-
Insertion Loss: ≤ 0.3 dB
-
Return Loss: ≥ 30 dB
-
Jacket Material: PVC / LSZH
-
Standard Lengths: 1m, 2m, 3m, 5m, 10m or Customized
Applications
-
Data Centers
-
Enterprise Networks
-
Storage Area Networks (SAN)
-
High-Density Fiber Cabling Systems
-
Server and Switch Interconnections
-
Cloud Computing Infrastructure
OEM & Customization
OEM and ODM services are available, including custom cable lengths, jacket colors, cable printing, and private label packaging.
The LC-LC OM3 Duplex Fiber Patch Cord provides a reliable and cost-effective solution for high-speed optical communication systems, ensuring stable performance and efficient connectivity for modern network infrastructures.
