Description
High-Performance Category 6A Shielded Cabling for 10 Gigabit Networks
The FTP CAT6A Ethernet Cable is designed for high-speed, high-bandwidth network applications where superior signal integrity and electromagnetic interference (EMI) protection are required. Featuring four twisted pairs individually protected by an overall foil shield, the cable delivers reliable 10 Gigabit Ethernet performance while minimizing alien crosstalk and external interference.
Engineered for modern enterprise networks, data centers, smart buildings, industrial environments, and PoE++ applications, CAT6A cabling provides a future-ready infrastructure solution supporting today's demanding connectivity requirements.
Key Features
· Supports 10 Gigabit Ethernet (10GBASE-T)
· Bandwidth up to 500MHz
· Foil Shielded Twisted Pair (FTP) Construction
· Excellent EMI & RFI Protection
· Reduced Alien Crosstalk
· Supports PoE, PoE+, and PoE++
· 24AWG / 23AWG Solid Bare Copper Conductors
· Available in PVC, LSZH, and PE Jacket Options
· RoHS & REACH Compliant
· Suitable for Data Centers and Enterprise Networks

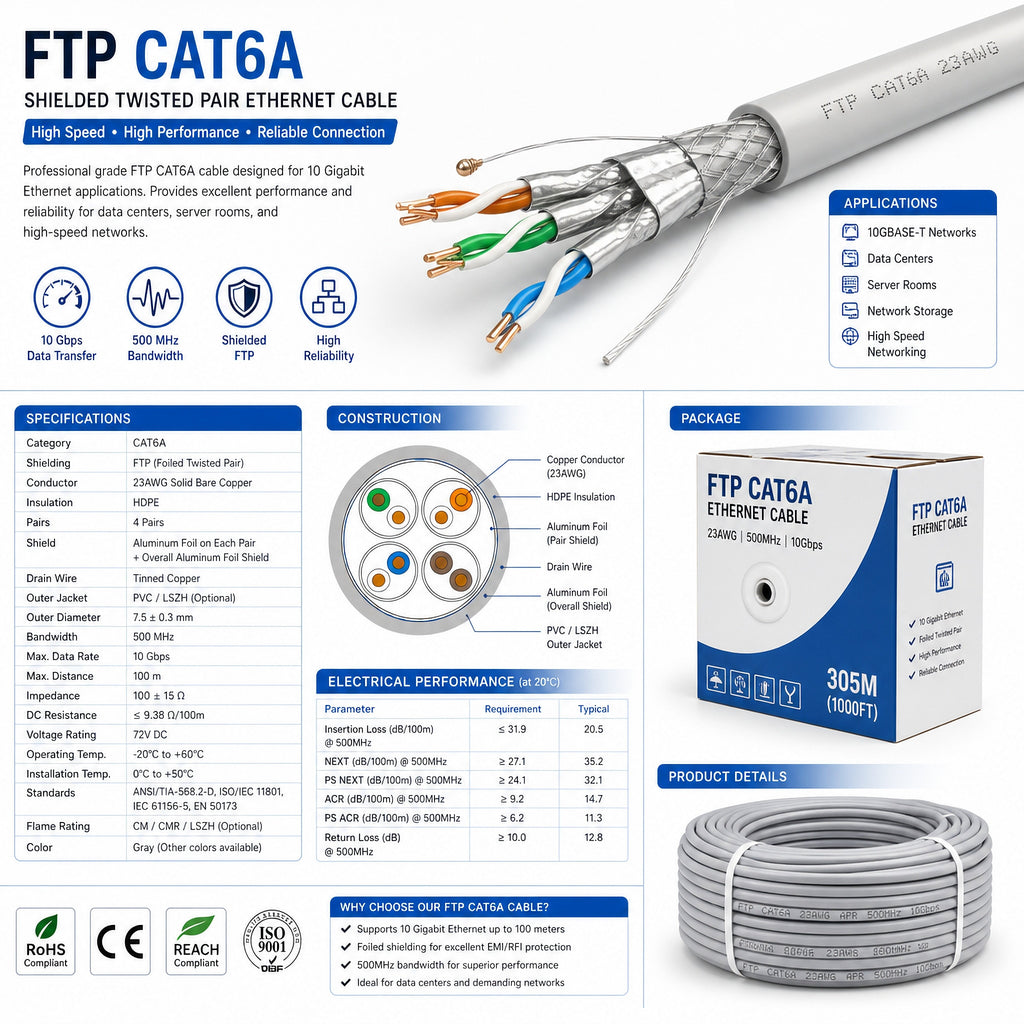

Technical Specifications
|
Item |
Specification |
|
Product Type |
FTP CAT6A Ethernet Cable |
|
Category |
Category 6A |
|
Shielding Type |
Overall Aluminum Foil Shield |
|
Conductor Material |
Solid Bare Copper |
|
Conductor Size |
23AWG or 24AWG |
|
Number of Conductors |
4 Pairs (8 Conductors) |
|
Insulation Material |
HDPE |
|
Bandwidth |
500 MHz |
|
Data Rate |
Up to 10 Gbps |
|
Characteristic Impedance |
100 ± 15 Ω |
|
Jacket Material |
PVC / LSZH / PE |
|
Jacket Diameter |
Approx. 7.0 – 8.5 mm |
|
Operating Temperature |
-20°C to +75°C |
|
Installation Temperature |
0°C to +50°C |
|
Standards |
ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA |

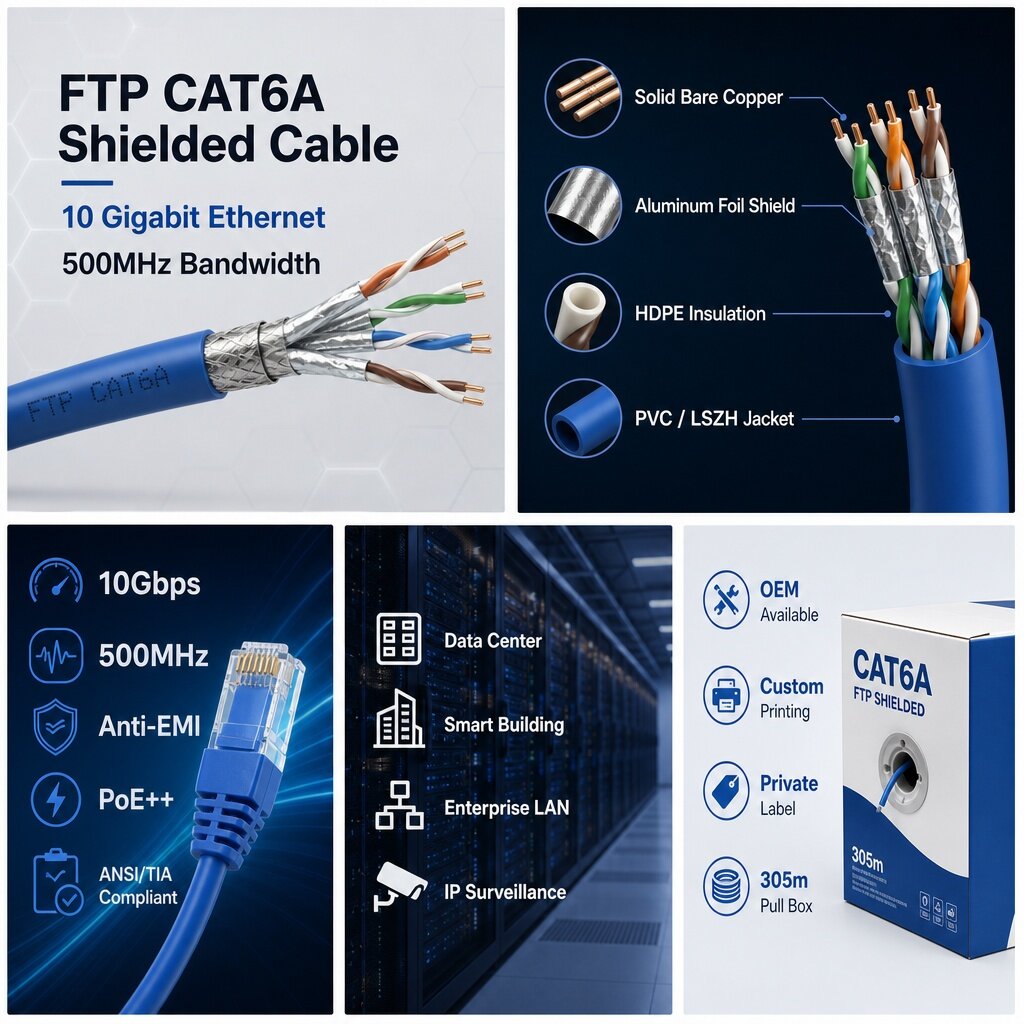

Cable Construction
Solid Bare Copper Conductor
High-purity solid copper conductors provide low attenuation, stable transmission, and superior electrical performance.
HDPE Insulation
Premium insulation maintains signal quality and pair separation for consistent network performance.
FTP Shielding Design
An overall aluminum foil shield surrounds the twisted pairs to effectively reduce:
· Electromagnetic Interference (EMI)
· Radio Frequency Interference (RFI)
· Alien Crosstalk
· Signal Degradation
Rip Cord
Integrated rip cord design enables fast and efficient cable installation.
Outer Jacket
Available in:
· PVC
· LSZH (Low Smoke Zero Halogen)
· PE (Outdoor UV Resistant)
Electrical Performance
|
Parameter |
Value |
|
Impedance |
100 ± 15 Ω |
|
Frequency Rating |
500 MHz |
|
Data Transmission |
10 Gbps |
|
DC Resistance |
≤ 8.5 Ω / 100m |
|
Resistance Unbalance |
≤ 2% |
|
Delay Skew |
≤ 45 ns / 100m |
|
NEXT Performance |
Exceeds CAT6A Requirements |
|
Return Loss |
Compliant with ANSI/TIA Standards |
10G Ethernet Performance
Designed specifically for modern high-speed networks:
· 10GBASE-T
· 5GBASE-T
· 2.5GBASE-T
· 1000BASE-T
· Fast Ethernet
Supports full channel lengths up to 100 meters while maintaining stable performance and low signal loss.
PoE & Smart Building Ready
Fully compatible with:
· PoE (IEEE 802.3af)
· PoE+ (IEEE 802.3at)
· PoE++ (IEEE 802.3bt)
Suitable for powering:
· IP Cameras
· Wireless Access Points
· VoIP Phones
· Access Control Systems
· Smart Lighting Systems
· Building Automation Devices
· IoT Sensors
Applications
The FTP CAT6A Cable is ideal for:
Enterprise Networks
· Office Buildings
· Corporate Campuses
· Government Facilities

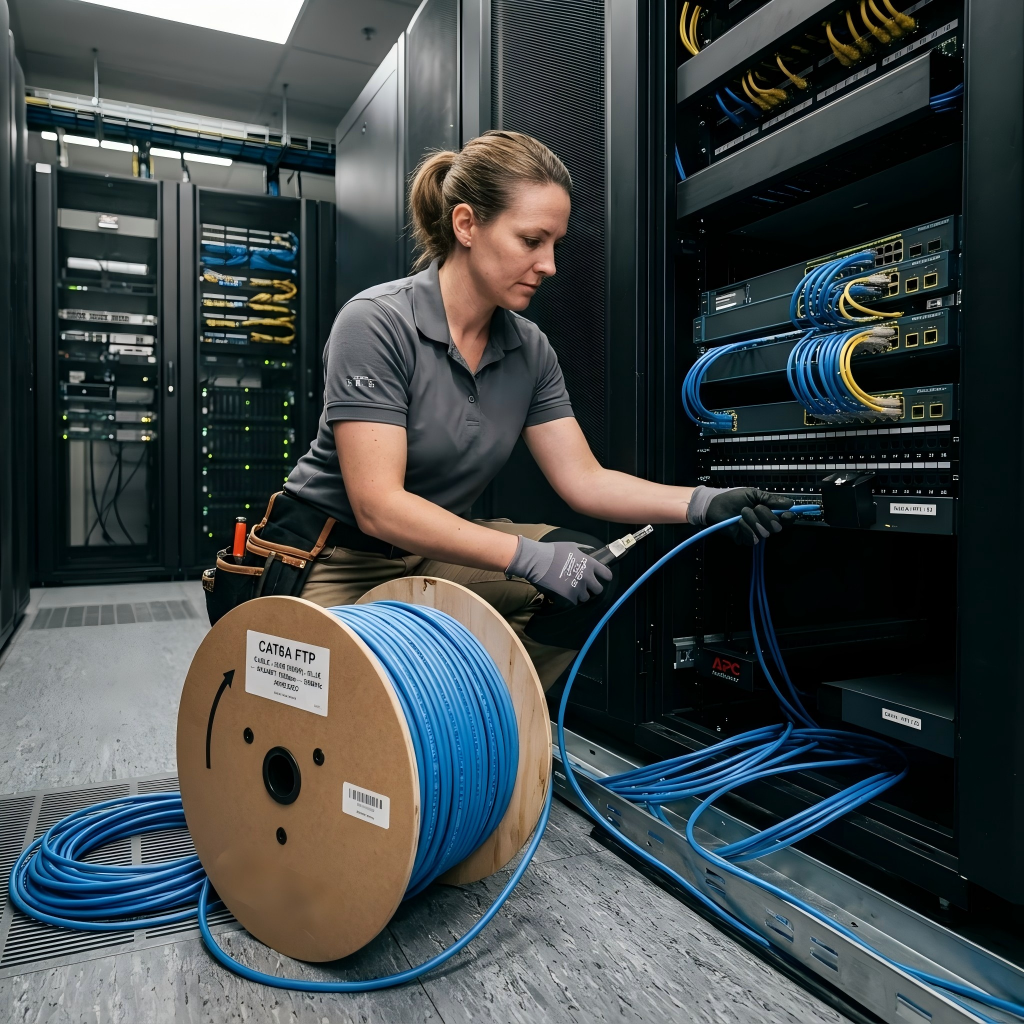

Data Centers
· Switch-to-Server Connections
· Horizontal Cabling
· High-Density Rack Environments
Smart Buildings
· Building Automation Systems (BAS)
· Security and Surveillance Networks
· Intelligent Lighting Control
Industrial Networks
· Manufacturing Facilities
· Industrial Ethernet Systems
· EMI Sensitive Environments

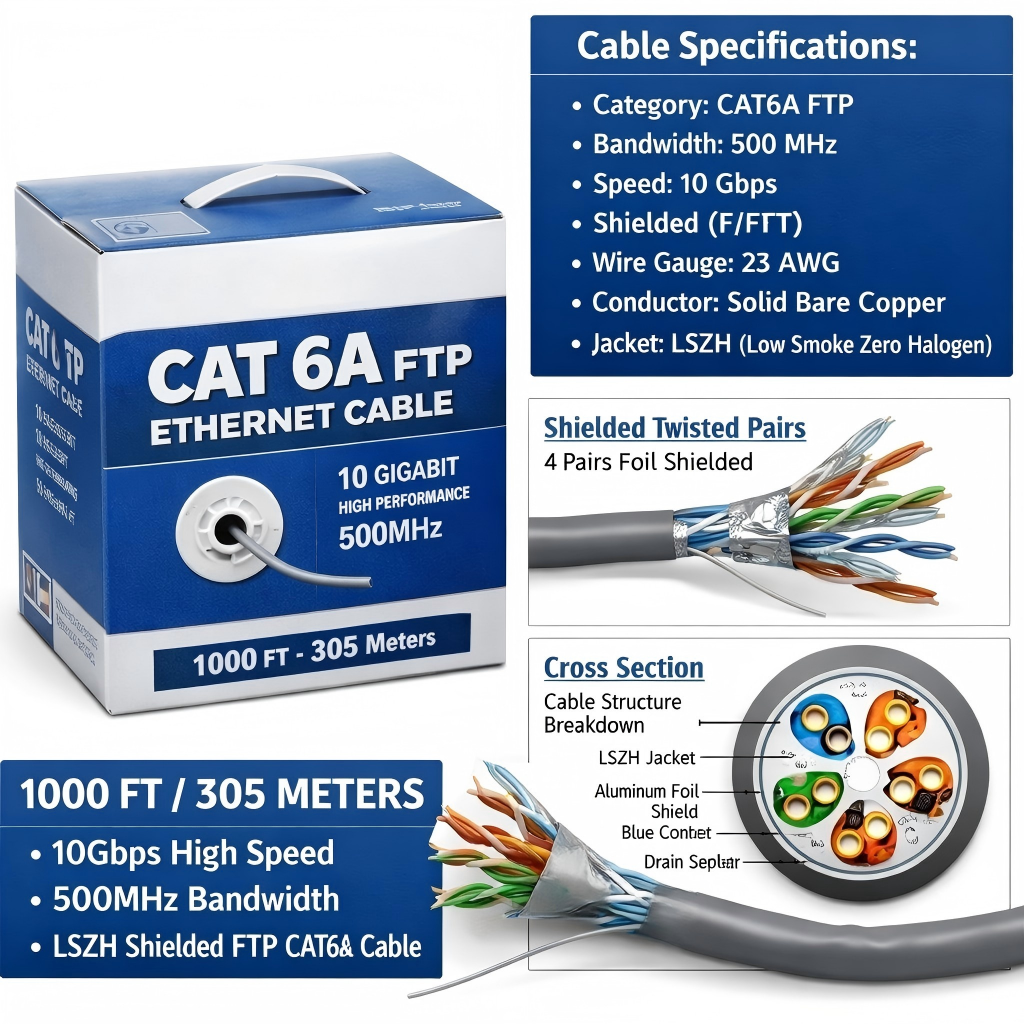

Packaging Options
· 305m Pull Box (1000ft)
· Easy Pull Reel Box
· Wooden Drum Packaging
· Custom Length Available
Customization Services
OEM & ODM Services Available:
· Custom Cable Color
· Custom Printing
· PVC / LSZH / PE Jacket
· Private Label Packaging
· Customized Meter Marking
· Customer Logo Printing
Advantages of FTP CAT6A
✔ Supports 10 Gigabit Ethernet
✔ Enhanced Shielding Protection
✔ Reduced Electromagnetic Interference
✔ Superior Alien Crosstalk Performance
✔ Future-Proof Network Infrastructure
✔ Ideal for Data Centers & Smart Buildings
✔ Compatible with High-Power PoE Applications
✔ Reliable Long-Term Performance
Why Choose Our FTP CAT6A Cable?
Manufactured using premium-grade copper conductors and strict quality control standards, our FTP CAT6A Ethernet Cable delivers exceptional network performance for mission-critical applications. Whether deployed in data centers, enterprise networks, telecom rooms, or smart building infrastructure, it provides the speed, reliability, and protection required for next-generation connectivity.
Contact us today for project pricing, OEM solutions, and technical support.
