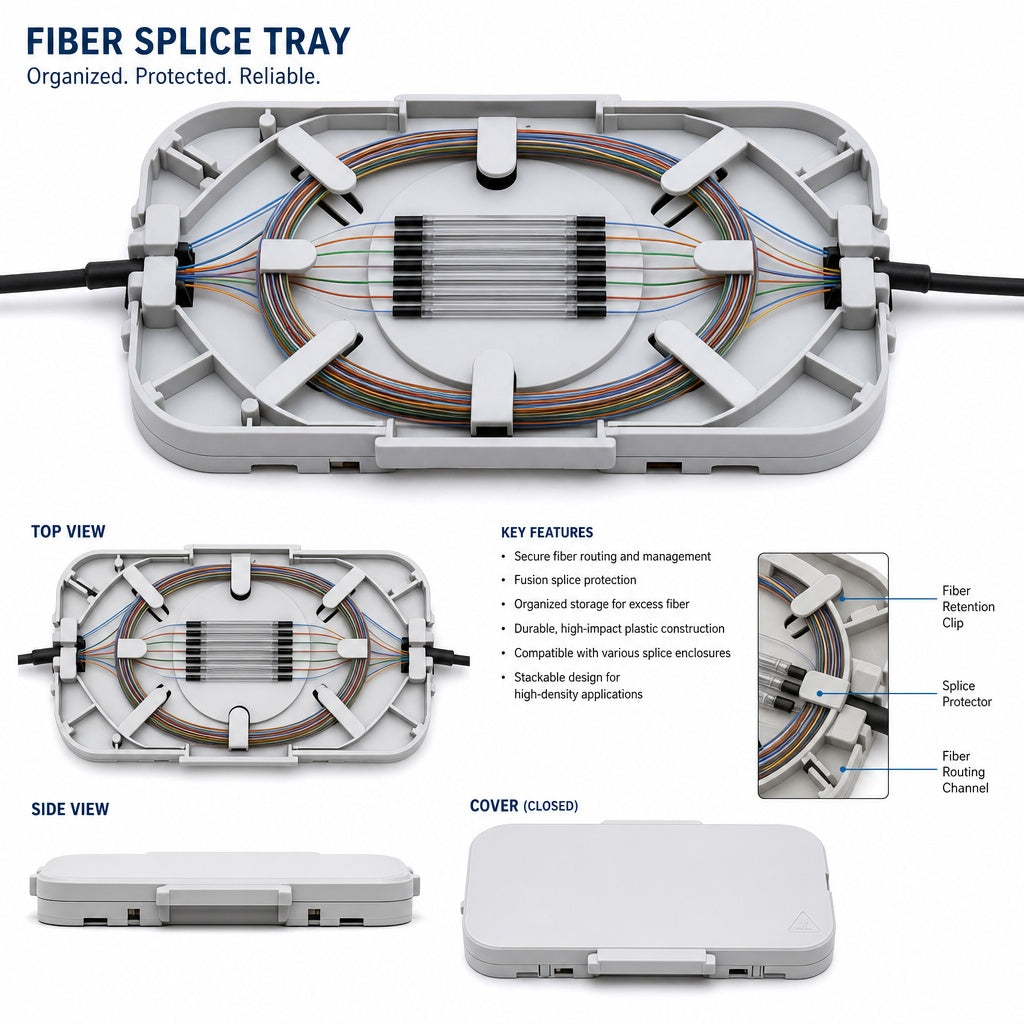

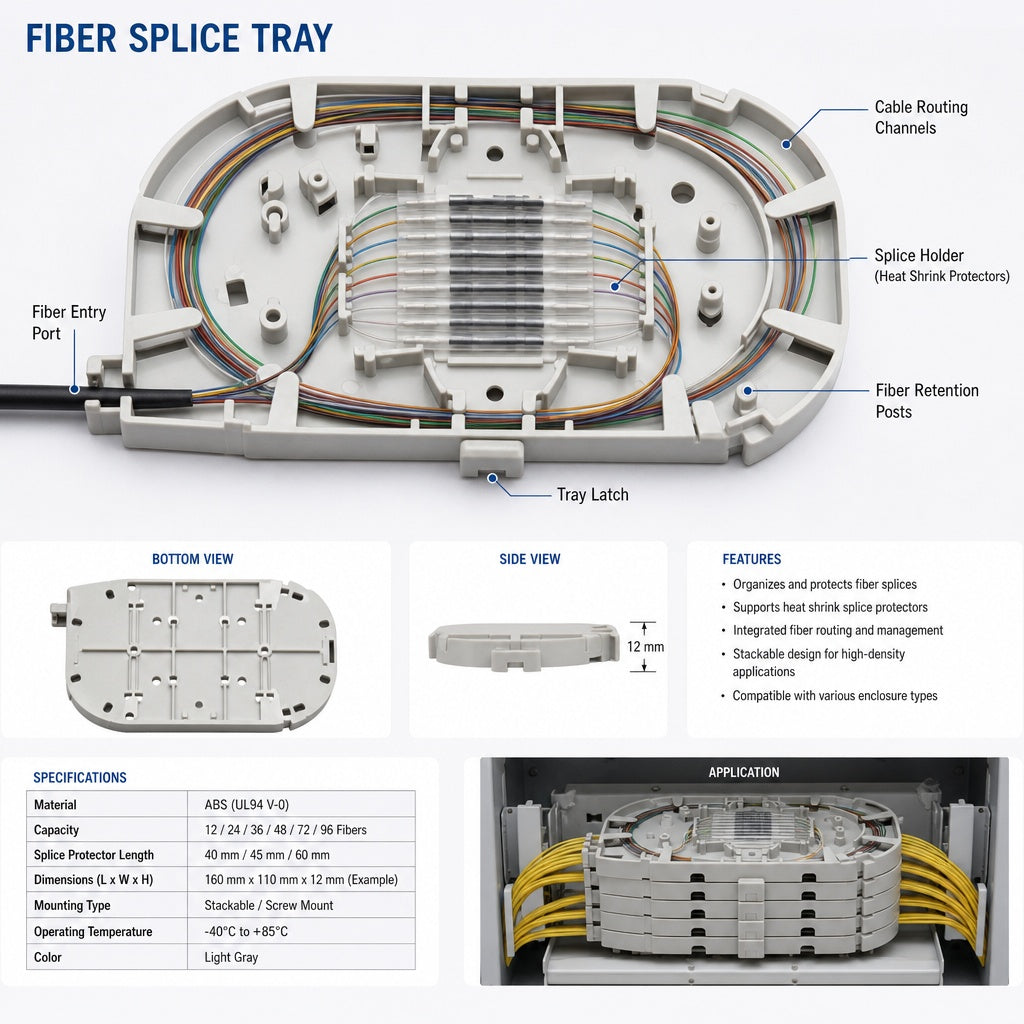

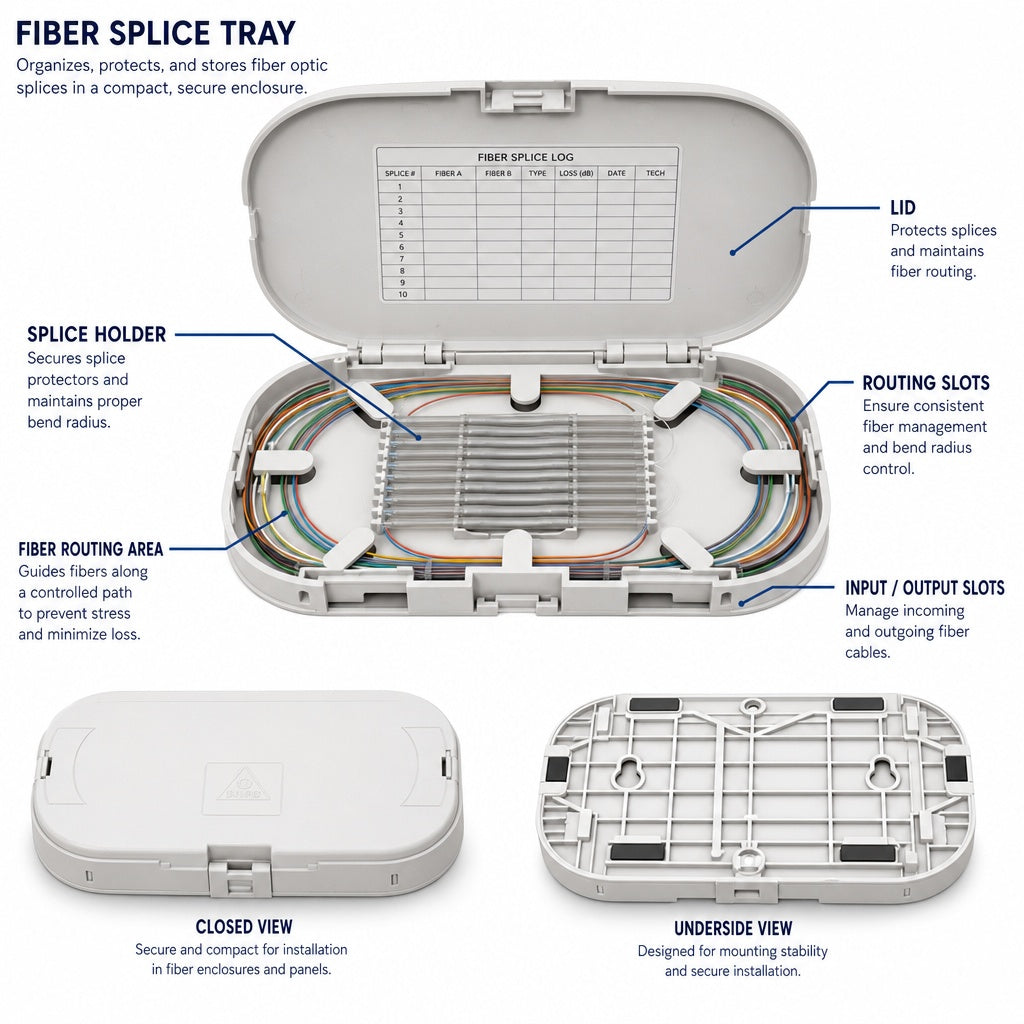

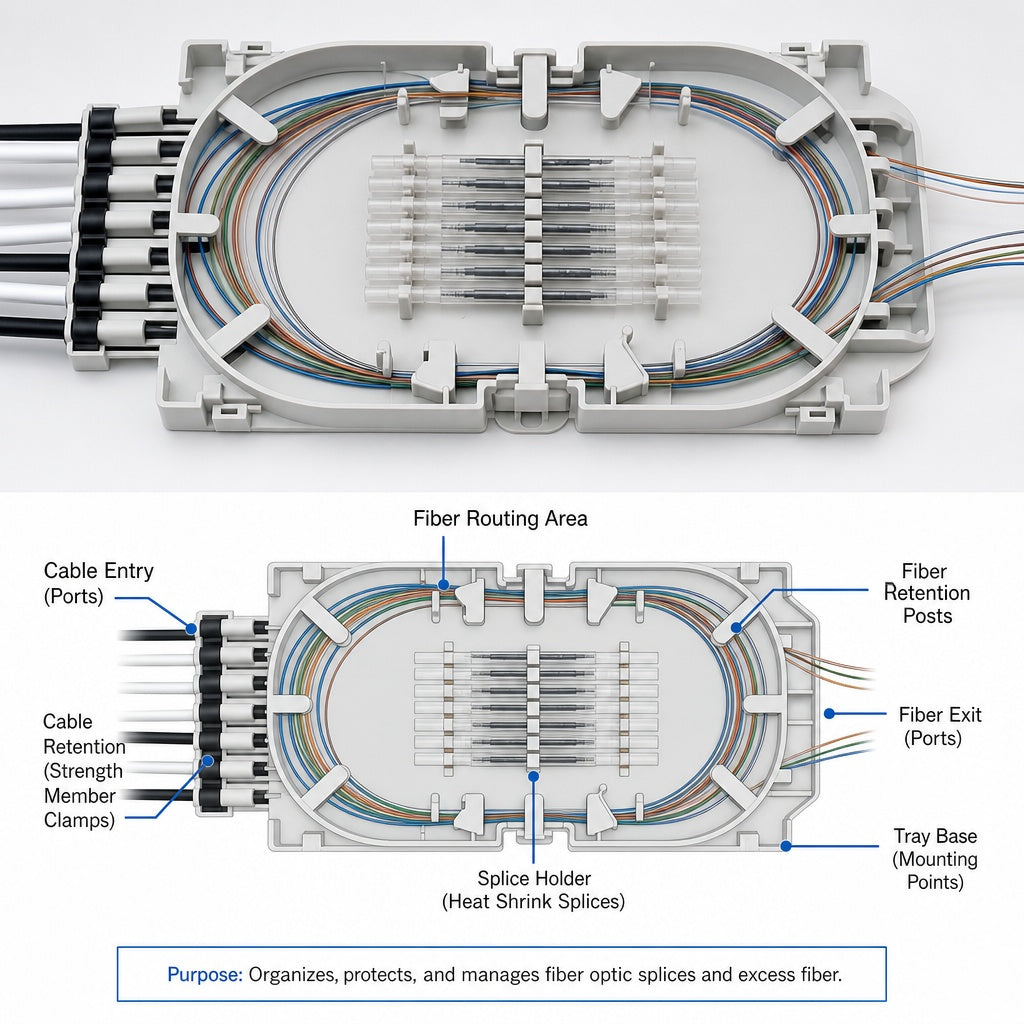

The Fiber Splice Tray is designed to provide secure storage and protection for fiber optic splices in fiber distribution systems. It organizes fusion spliced fibers while maintaining proper bend radius and protecting sensitive fiber connections.
Used inside fiber optic patch panels, splice closures, and termination boxes, the splice tray provides efficient fiber management for telecom, FTTH, and data center applications.
Features
- Provides secure storage for fiber splices
- Protects fusion splice points
- Maintains proper fiber bending radius
- Supports single-mode and multi-mode fiber
- Modular design for easy installation
- Compatible with fiber patch panels and enclosures
- Clear fiber routing structure
- Durable and lightweight construction
Technical Specifications
| Item |
Specification |
| Product Type |
Fiber Splice Tray |
| Fiber Type |
Single-mode / Multi-mode |
| Splice Capacity |
12 / 24 / 48 Fibers |
| Material |
ABS / Engineering Plastic |
| Installation |
Fiber Enclosure / ODF / Patch Panel |
| Splice Type |
Fusion Splicing |
| Application |
Telecom / FTTH / Data Center |
Applications
- Fiber optic patch panels
- ODF distribution frames
- Fiber termination boxes
- FTTH networks
- Telecom networks
- Data center fiber systems
Benefits
- Protects delicate fiber splices
- Prevents fiber damage and bending loss
- Improves fiber organization
- Easy maintenance and expansion
- Suitable for long-term fiber deployment
Optional Configurations
- 12 core splice tray
- 24 core splice tray
- 48 core splice tray
- Single layer or multi-layer design
- OEM customization available
