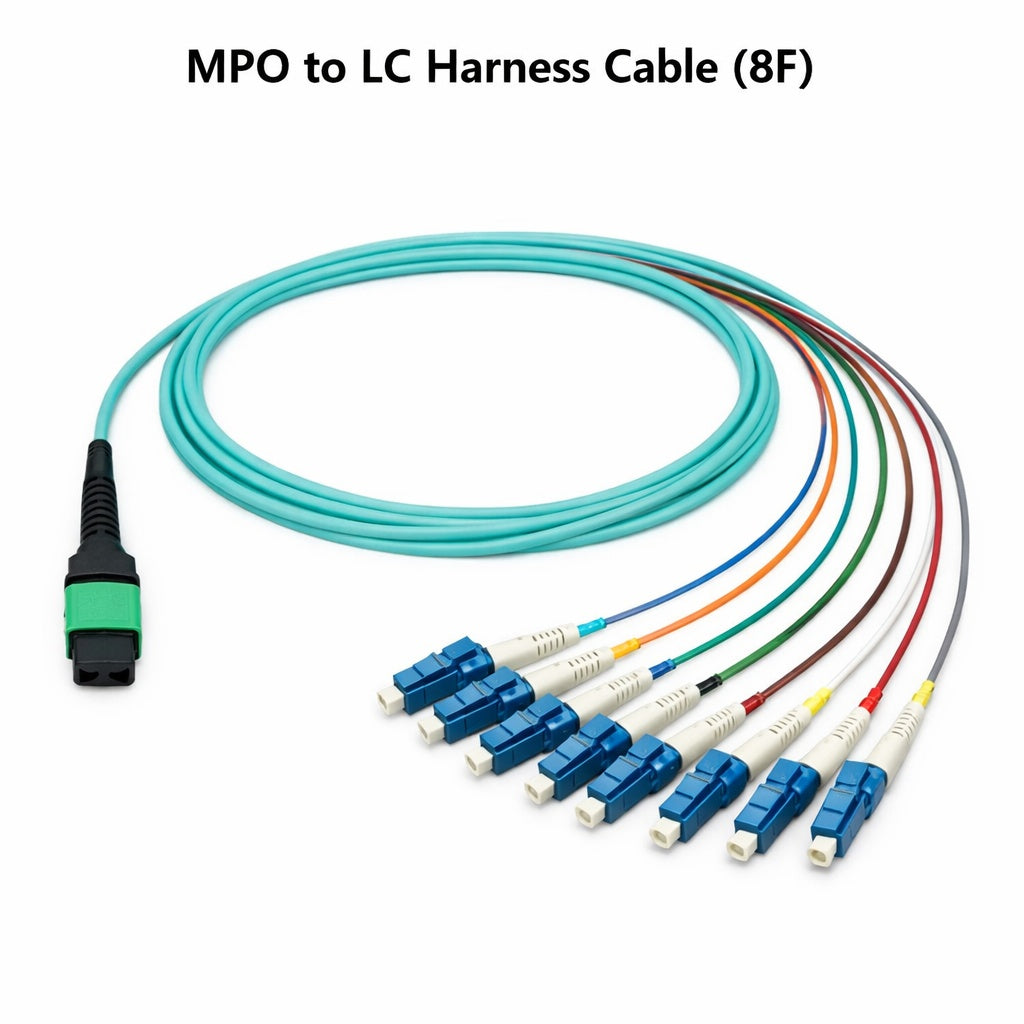

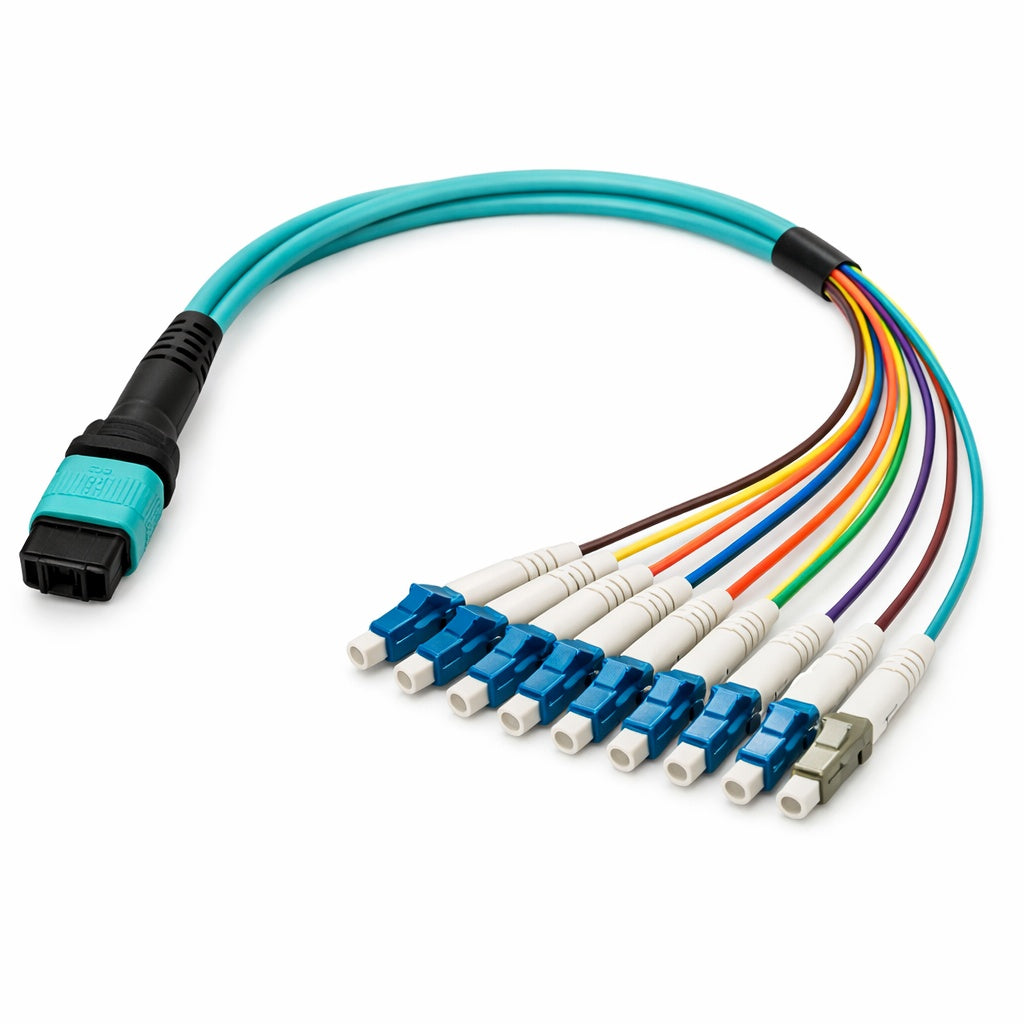

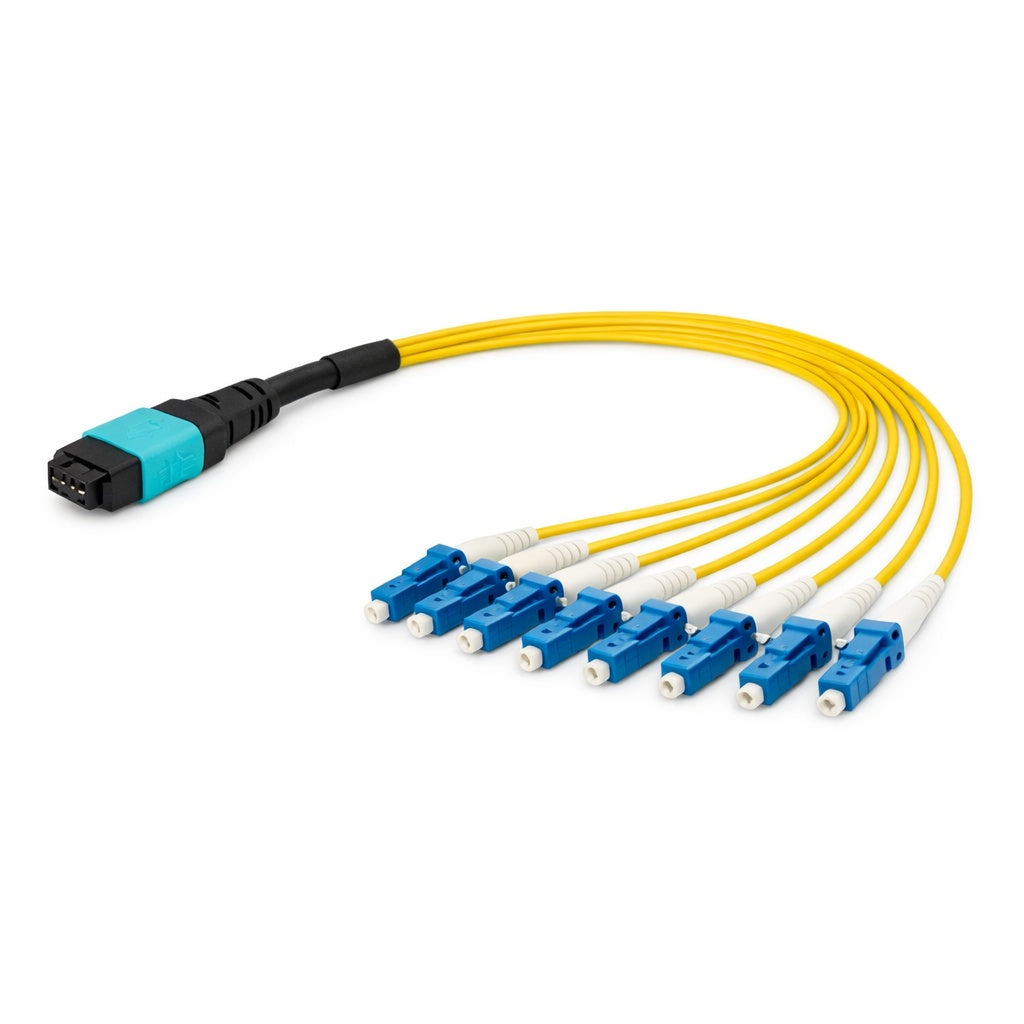

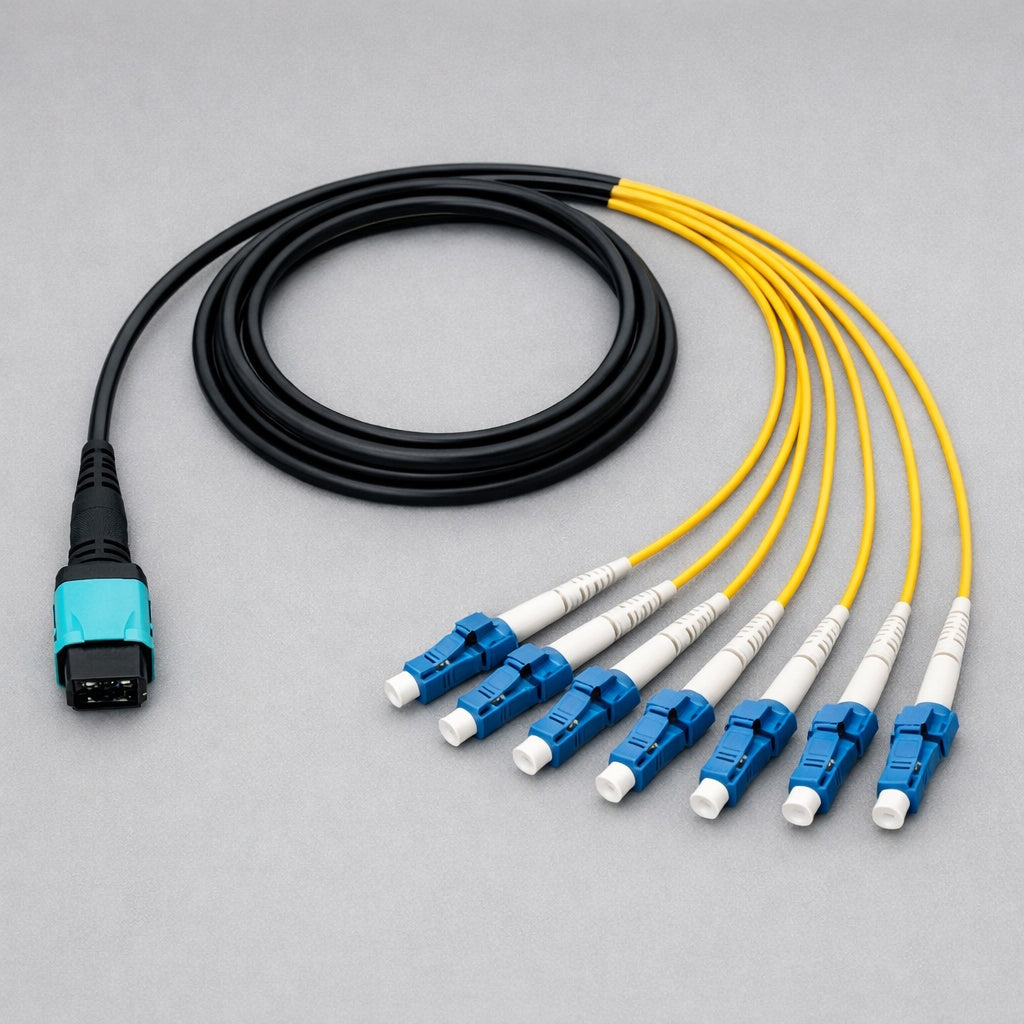

MPO to LC Harness Cable (8F)
Product Overview
The MPO to LC Harness Cable (8F) is a high-performance fiber optic breakout solution designed to convert a single 8-fiber MPO trunk connector into individual LC duplex connectors. It is widely used in data centers, high-density cabling systems, and enterprise network environments where efficient space utilization and reliable signal distribution are required.
This harness cable enables fast deployment, stable transmission, and simplified fiber management for modern high-speed networks.
Key Features
High-Density Fiber Breakout
Converts 8-fiber MPO connections into LC duplex connectors, supporting efficient port expansion in limited rack space.
Plug-and-Play Design
Factory pre-terminated and tested, eliminating the need for field termination or splicing.
Low Loss & High Reliability
Precision-polished connectors ensure low insertion loss and stable optical performance for critical applications.
Flexible & Scalable
Ideal for scalable network upgrades, allowing seamless integration with existing LC-based equipment.
Data Center Optimized
Engineered for high-performance environments such as data centers, telecom rooms, and enterprise backbone networks.
Product Specifications
| Specification |
Details |
| Connector Type |
MPO (8F) to LC Duplex |
| Fiber Count |
8 Fibers |
| Fiber Type |
Single-mode (OS2) / Multi-mode (OM3, OM4, OM5) |
| Insertion Loss |
≤ 0.35 dB (typical) |
| Return Loss |
≥ 50 dB (UPC) |
| Polish Type |
UPC / APC (optional depending on fiber type) |
| Jacket Material |
PVC / LSZH |
| Operating Temperature |
-20°C to +70°C |
| Length |
Customizable |
Applications
- Data center interconnects (DCI)
- High-density patching systems
- Cloud computing infrastructure
- Enterprise network upgrades
- Fiber distribution frames (ODF/MDF)
- High-speed storage area networks (SAN)
Advantages Over Traditional Cabling
- No field splicing required
- Faster deployment and installation
- Reduced labor and maintenance costs
- Improved cable management in high-density environments
- Stable and consistent optical performance
Customization Options
We provide full OEM/ODM customization services:
- Custom cable length
- Fiber type (OS2 / OM3 / OM4 / OM5)
- MPO/MTP male/female configuration
- LC connector polish type (UPC / APC)
- Jacket type (PVC / LSZH)
- Labeling and port numbering
- Private packaging and branding
- Factory test reports available
