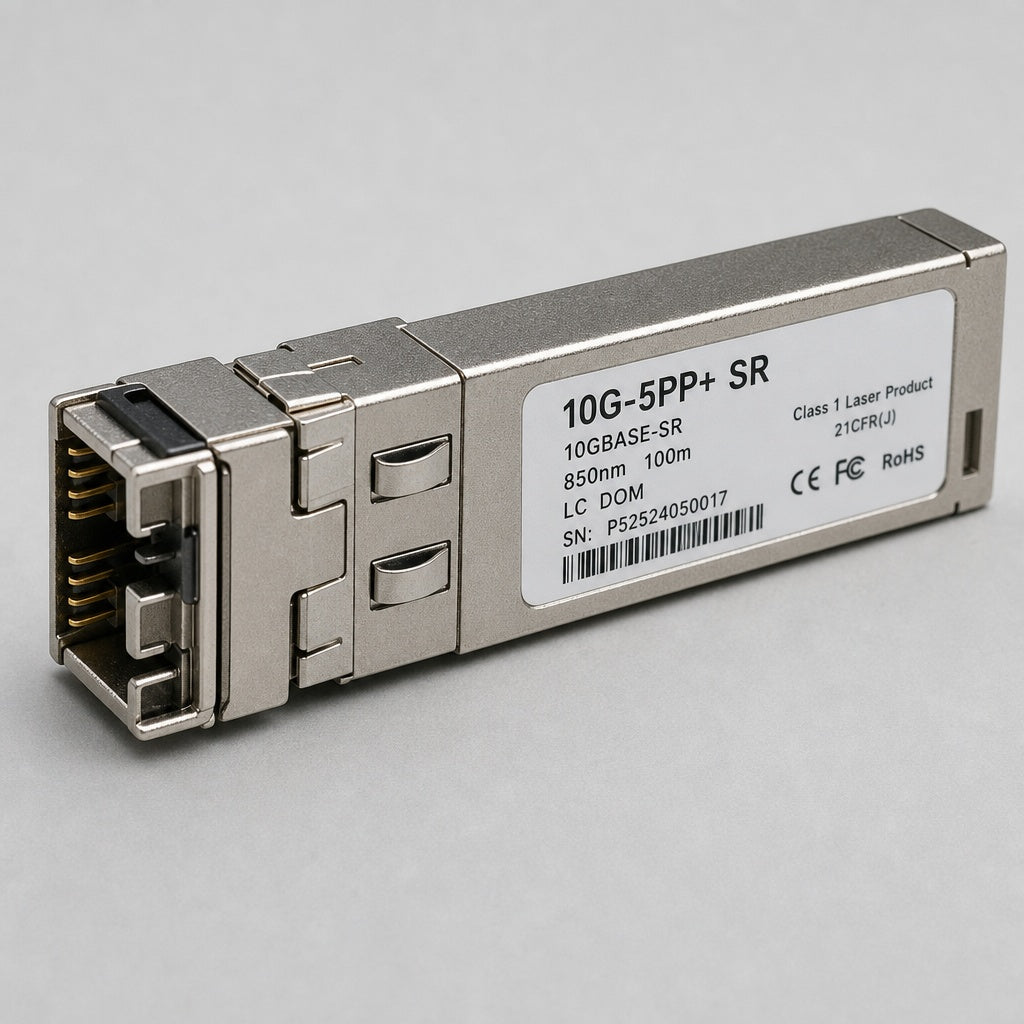

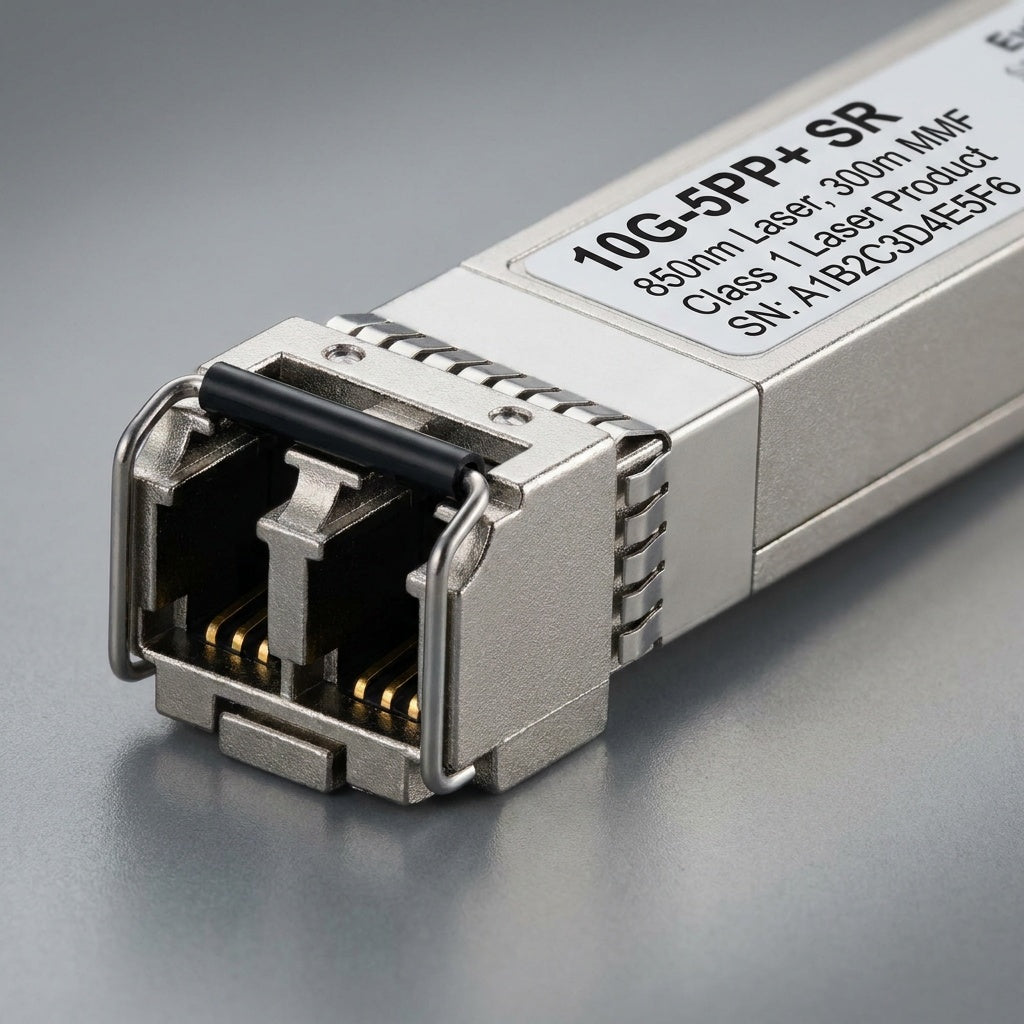

10G SFP+ SR Optical Transceiver for High-Speed Networks
The 10G SFP+ SR Transceiver Module is designed for 10 Gigabit Ethernet connectivity in enterprise networks, data centers, and campus environments. Built according to the SFP+ Multi-Source Agreement (MSA) and IEEE 802.3ae standards, this module provides stable and efficient optical transmission with excellent interoperability.
Operating at an 850nm wavelength, the module supports transmission distances of up to 300 meters over OM3 multimode fiber and up to 400 meters over OM4 multimode fiber. The hot-swappable design enables easy installation and maintenance without network downtime.
Compatible with major networking brands including Cisco, Ubiquiti, MikroTik, Juniper, Netgear, TP-Link, and Aruba, this transceiver is an ideal solution for high-bandwidth and low-latency network deployments.
Key Features
✔ Data Rate up to 10Gbps
✔ 850nm VCSEL Laser Technology
✔ Transmission Distance up to 300m over OM3 MMF
✔ Duplex LC Optical Interface
✔ Hot-Pluggable SFP+ Form Factor
✔ Low Power Consumption (<1W)
✔ Digital Diagnostic Monitoring (DDM/DOM) Support
✔ MSA Compliant and RoHS Certified
✔ Wide Compatibility with Major Network Switch Brands
Technical Specifications
| Specification |
Details |
| Form Factor |
SFP+ |
| Data Rate |
10Gbps |
| Wavelength |
850nm |
| Connector |
Duplex LC |
| Fiber Type |
Multimode Fiber (MMF) |
| Max Distance |
300m (OM3), 400m (OM4) |
| Transmitter Type |
VCSEL |
| Receiver Type |
PIN Photodiode |
| DDM/DOM |
Supported |
| Power Consumption |
<1W |
| Operating Temperature |
0°C to 70°C |
| Standards |
IEEE 802.3ae, SFF-8431, SFP+ MSA |
| Compliance |
RoHS |
Applications
- 10 Gigabit Ethernet Networks
- Enterprise LAN Infrastructure
- Data Center Interconnects
- High-Speed Storage Networks
- Server-to-Switch Connections
- Aggregation and Distribution Layers
- Campus Network Deployments
Package Includes
- 1 × 10G SFP+ SR Transceiver Module
- 1 × Protective Dust Cap
- 1 × User Guide
