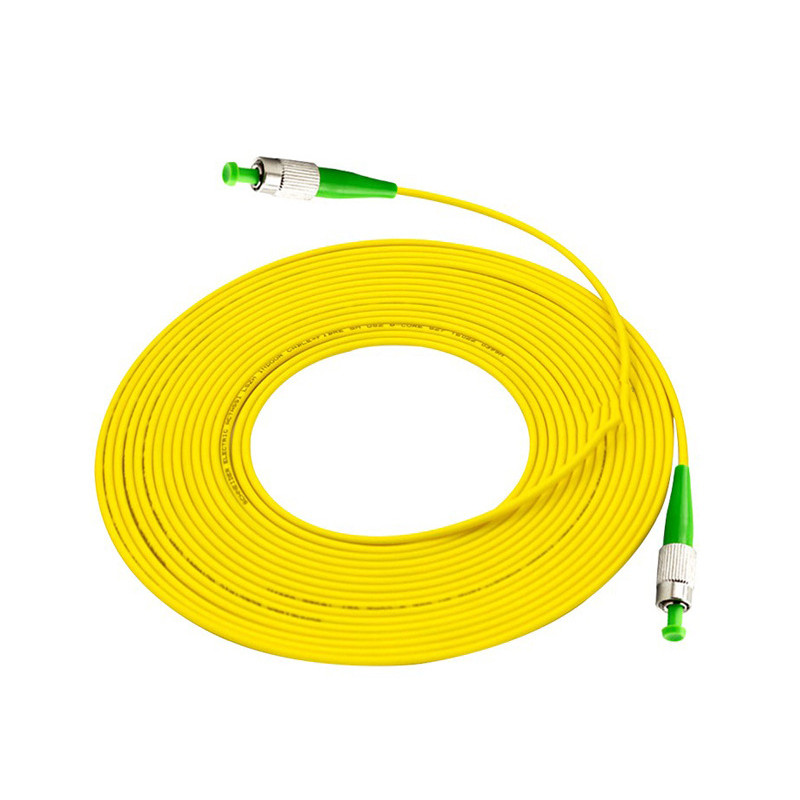

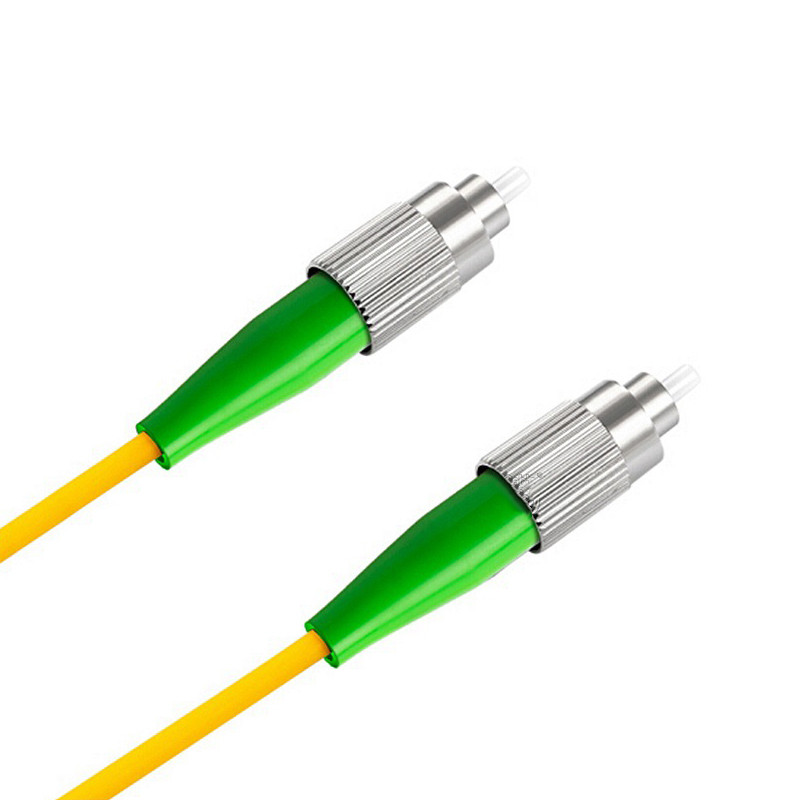

FC/APC-FC/APC SingleMode Simplex 9/125 Fiber Optic Patch Cable
FC/APC-FC/APC SingleMode Simplex 9/125 Fiber Optic Patch Cable FC/APC-FC/APC SingleMode Simplex 9/125 Fiber Optic Patch Cable FC/APC-FC/APC SingleMode Simplex 9/125 Fiber Optic Patch Cable

FC/APC-FC/APC SingleMode Simplex 9/125 Fiber Optic Patch Cable

Product ID : VDX-FCFC-SM-02
Product Tags :
Product Attributes :

> Singlemode Duplex Fiber Optic Patch Cord
> LC,SC,FC,ST,E2000,DIN,MTRJ,MPO connector configurations available
> 1m/2m/3m/5m/7m/10m/15m/20m/25m/30m lengths available
> Available in standard or custom configurations
> 2.0mm/3.0mm diameter
> Low back reflection and insertion loss
> PVC/LSZH jacket
> Cerramic ferrule
> 1pcs per bag
> UL, RoHS Compliant

Product Description

Main technical parameters :
* Optical fiber external diameter: φ0.9mm, φ2.0mm, φ3.0mm are optional, and PC, UPC and APC are available, there are two kinds of single mode and multi-mode.

* Insertion loss: ≤0.2dB

* Echo Loss: PC≥40dB,UPC≥50dB,APC≥60dB

* Exchangeability test: ≤0.2dB

* Vibration test: ≤0.1dB (10-60Hz, 1.5mm amplitude)

* Tensile strength test: ≤0.1dB (0-15Hg tension, excluding 0.9mm optical fiber)

* High temperature test: ≤0.2dB (+85 C, lasting 100 hours)

* Low temperature test: ≤0.2dB (-40 C, lasting 100 hours)

* Temperature cycling test:≤0.2dB (-40 ~85 C, after 5 cycles)

* Humidity test: ≤0.2dB (+25℃~+65℃, relative humidity 93%, 100 hours later)

* Commonly used connectors: SC (large head)/LC (small head/FC (spiral port)/ST (card port)

Scope of application :

* Optical Fiber Communication System, Optical Fiber Access Network, Optical Fiber Data Transmission, Optical Fiber CATV, Local Area Network (LAN), Testing Equipment

Model HSD-FCFC-SM-02
Brand OEM Brand, VDX Cable
Application Network, Telecommunications
Color Optional
Length Optional
Connector ST/FC/SC/LC/MTRJ/E2000
Operating temp range -40~85°C
Service OEM Offered
Technical specifications PC/UPC/APC
Fiber Counts Simplex, Duplex
Fiber Mode Multimode/Singlemode
