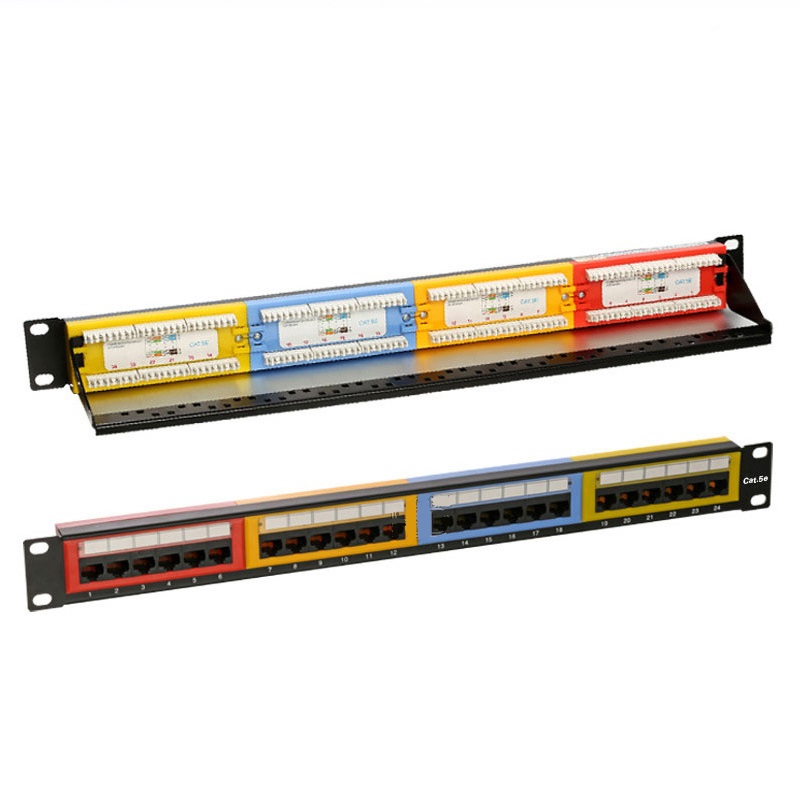

Cat5e Patch Panel 24Port 1U Unshielded
> Space Saving Design
> Made of sturdy, rolled-edge, anodized steel
> Fully enclosed design for protection of printed circuitry during termination.
> Color-coded for T568A and T568B wiring schemes.
> Constructed from UL94-V-0 high-impact, fire-retardant ABS or PC material.
> Pair punch sequence enables a pair twist within 1/2, of termi- nation.
> Beryllium copper contacts: 50,µ gold-plated pins over100,µ nickel layer.
> Insertion life cycle: 750 cycles (minimum) / I.D.C. 250 cycles (minimum).
> Operating temperature: -40,°C to +68,°C.
> 1xEIA Unit 19(W)x1.3/4(H)x1.1/4(D)
> CE Listed, RoHS Compliant
Cat5e Colorful Patch Panel 110 Type 24 Port 1U
| Model | VDX-PP-54 | |
| Brand | OEM Brand, VDX Cable | |
| Housing | Steel with Black Painting | |
| Wiring scheme | T568A/B | |
| Spring Wire | Phosphor Bronze with gold-plated 3 u-50u | |
| IDC Contact | Phosphor Bronze with nickle plated 100u | |
| IDC Accept | 22-26AWG Solid Wire | |
| Specification | 19inch ,1U | |
| Test Standard | LSA IDC | |
| Supply Ability | 30000 Piece/Pieces per Month | |
| Packaging Details | 1pc/ box , 10 PCS/CTN(53cm* 32cm*23Ccm) , OEM Packing can provide | |
| Port | shenzhen | |
| Lead Time | about 15-20 days after payment | |
