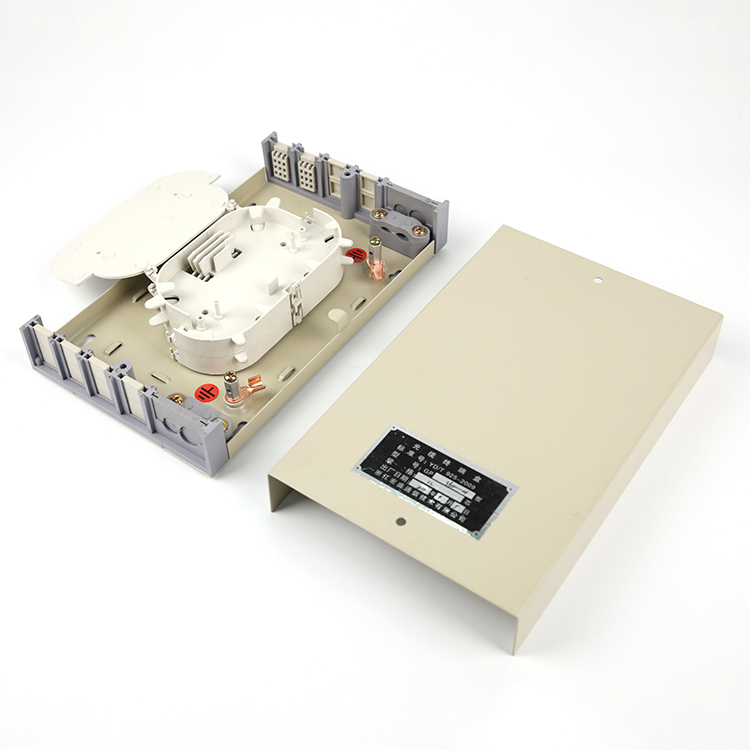

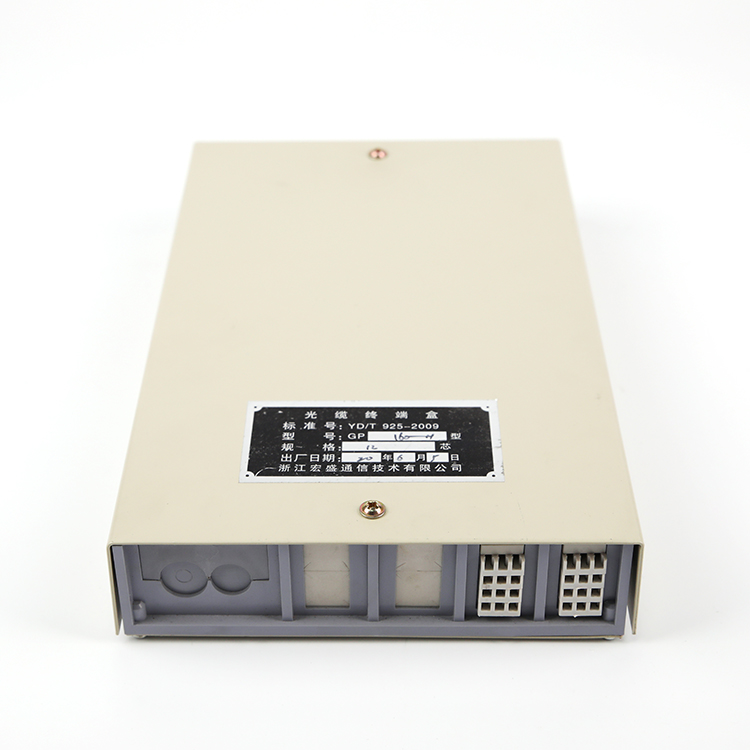

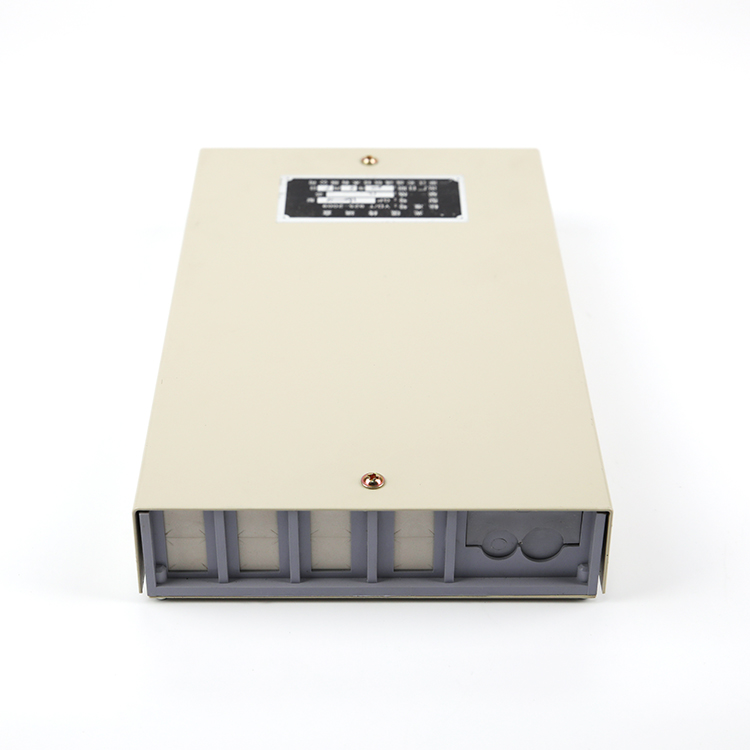

A type optical cable terminal box is made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment to ensure its reliability and stability; the box can be installed on the indoor wall and terrace; it is of strong mechanical strength, beautiful and elegant exterior; it is capable of providing protection for the direct, terminal or branching connection of the fiber.
Properties：
Connection function: layered turn-cover structure, equipped with special inside device to stop the connection tray from moving forth and back.
Reservation function: reserve the redundant fiber on
the fixed block outside the connection tray, which is bound by bandage to ensure the regularity of the fiber within the connection tray.
Capacity：
Capacity of the connection tray: single-core bunch 6 cores/tray.
Maximum capacity: can accommodate as much as 6 connection trays.
Optical cable inlet-outlet hole: the port can accommodate 2 optical cables with their diameter no more than 20mm.
Schematic diagram for the accessories：
Please refer to the Instruction for the name of the accessories in the diagram.
Product Directory：
|
Product Name
|
Dimension
|
Optical Cable
Inlet-outlet Hole |
6-core Tray
Single-core(Capacity) |
|
GP160-A optical cable terminal box
|
330X160X50
|
2 units
|
6 cores
|
|
GP160-A optical cable terminal box
|
330X160X50
|
2 units
|
12 cores
|
|
GP160-A optical cable terminal box
|
330X160X61
|
2 units
|
18 cores
|
|
GP160-A optical cable terminal box
|
330X160X72
|
2 units
|
24 cores
|
|
GP160-A optical cable terminal box
|
350X160X83
|
2 units
|
30 cores
|
|
GP160-A optical cable terminal box
|
350X160X94
|
2 units
|
36 cores
|
Can be designed and manufactured according to the requirements of the customer.
