We supply APP06 - Series Sliding Patch Panel .
Shenzhen Adtek Technology Co., Ltd. was established in 2007, as the R&D base of Adtek Group, it is mainly work on fiber optic patch cords & cables and other fiber communications products.
Product introduction

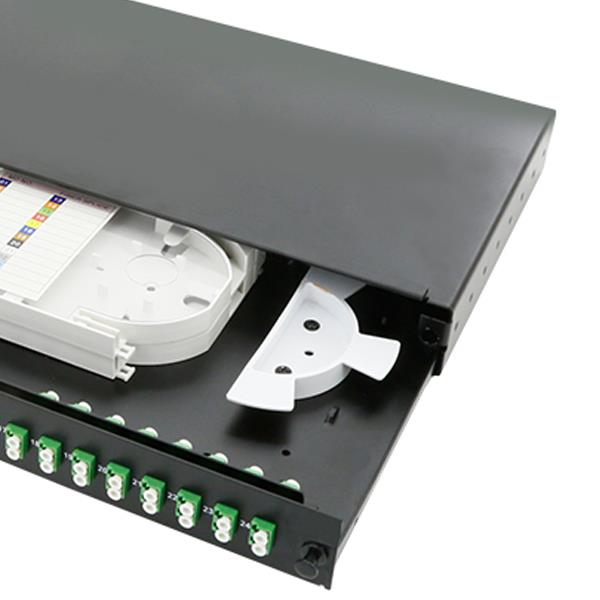

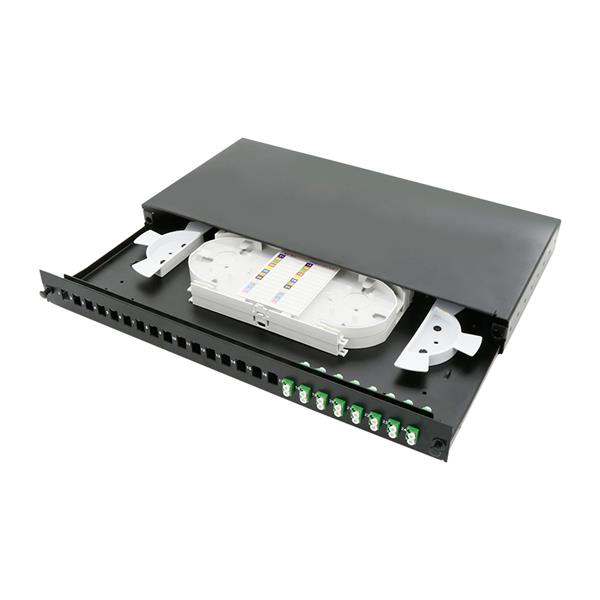

1U 19" Slide Drawer Type Fiber Optic Patch Panel For SC, FC, ST, LC Adapter Panel
Product parameters
|
Part Number |
APP06 |
Fiber Count |
72 |
|
Front Connector |
LC UPC DX adapter (36pcs) |
Rear Connector |
MPO/MTP adapter (6pcs) |
|
Fiber Type |
OM3 50/125um |
LGX Cassette or adapter panel |
3 |
|
Channel Insertion Loss |
≤ 0.35dB (MTP) ≤ 0.2dB (LC) |
Return Loss |
≥ 20dB (MTP) ≥ 35dB (LC) |
|
Cassette Material |
Metal |
Color |
Black |
|
Cassette Type |
1RU 19'' |
Dimensions (H*W*D) |
1U*205*482mm |
Product features and applications
Features
1.Modular system for managing fiber connections.
2.Up to 72 fibers capacity in 1U.
3.High-performance and flexible implementation for Data Center.
