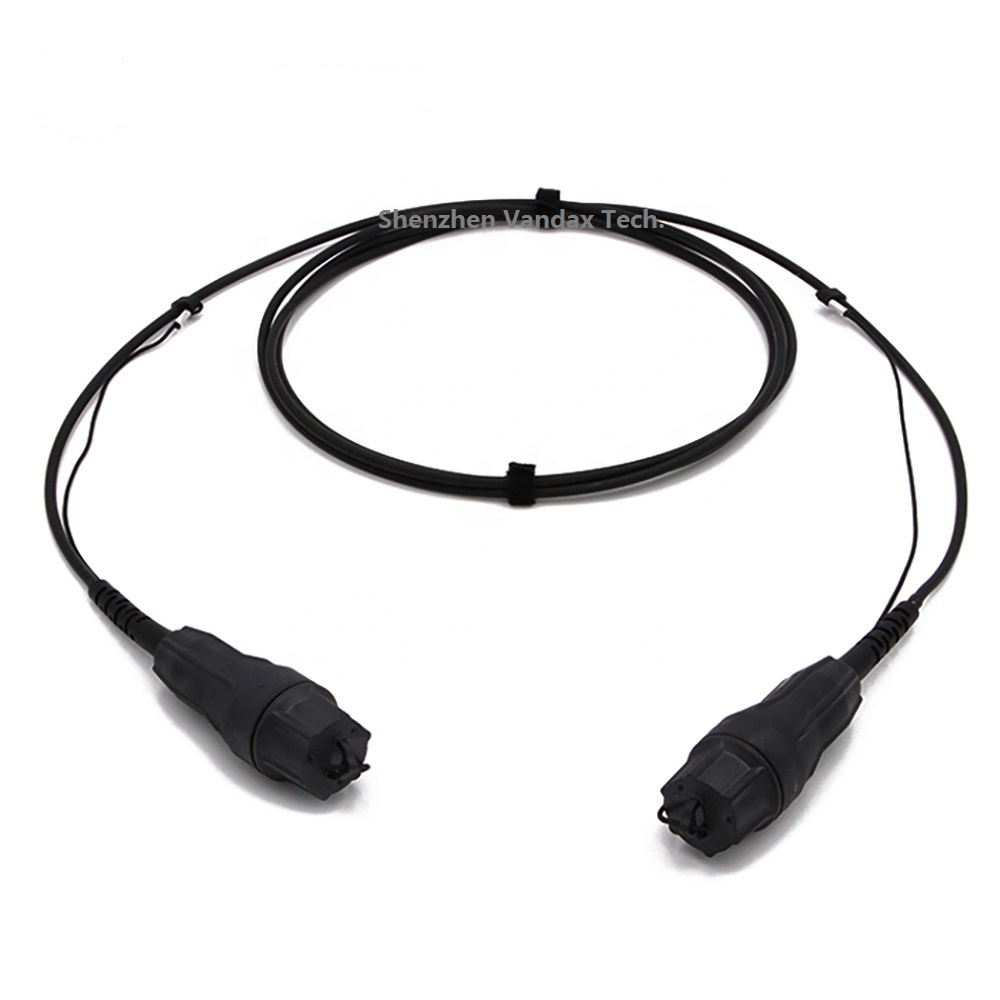

FTTA (Fiber To The Antenna) Optical Patch Cord, FullAXS-FullAXS, 2 Cores, 9/125 OS2, TPU Jacket, 3M
FTTA (Fiber To The Antenna) Optical Patch Cord, FullAXS-FullAXS, 2 Cores, 9/125 OS2, TPU Jacket, 3M

FTTA (Fiber To The Antenna) Optical Patch Cord, FullAXS-FullAXS, 2 Cores, 9/125 OS2, TPU Jacket, 3M

Product ID : VDX-PT-013
Product Tags :
Product Attributes :

Item #:VDX-PT-013

Minimum Order Q’ty: 1 Piece

Price Term: FOB Shenzhen, China

Packaging: Neutral or OEM service optional

Lead Time: 5-7 days

Payment Method: Paypal, Western Union, TT or Letter of Credit

Certification: ISO9001:2008 UL and RoHS

Product Description

Vandax's FTTA (Fiber To The Antenna) FullAXS patch cord is designed to accommodate for a large tolerance in Z-direction and offer the benefit of one-hand installation of the connector shell. With this new product offering, users can also conveniently remove and replace transceivers through a cutout in the bulkhead that completely eliminates the need to open the entire remote radio box and expose its contents to hazardous weather conditions. For the optical connection, the connector system includes an industry-standard duplex LC interface for fast mating with all LC duplex SFP transceivers.

Parameters:

  • Insertion loss: ≤0.3dB
  • Repeatable: ≤0.2dB
  • Mechanical life: 500 cycles
  • Core number: 2 cores
  • Working temperature: -40 ~ +70℃
  • Storage temperature: -40 ~ +70℃
  • Operating temperature: -10 ~ +50℃
  • Protection level: IP67
  • Tensile data: Between junction and fiber cable ≥ 180N
  • Outer shell inflaming retarding: UL 94V-0
  • RoHS compliant

Features:

  • Fiber Cable: OS2 Single Mode GYFJH, 5.0mm, 2 Cores, TPU Jacket, Black
  • Open bulkhead for easier access to SFP
  • Positive mechanical feedback to operator when fully mated
  • Robust bayonet locking for easy, fast and secure mating
  • Available for singlemode and multimode
  • Water proof, dust proof and corrosion resistant

Applications:

  • WiMAX and LTE Base Stations
  • Remote radio heads (RRH)
  • Industrial outdoor applications
  • Aerospace & defense
