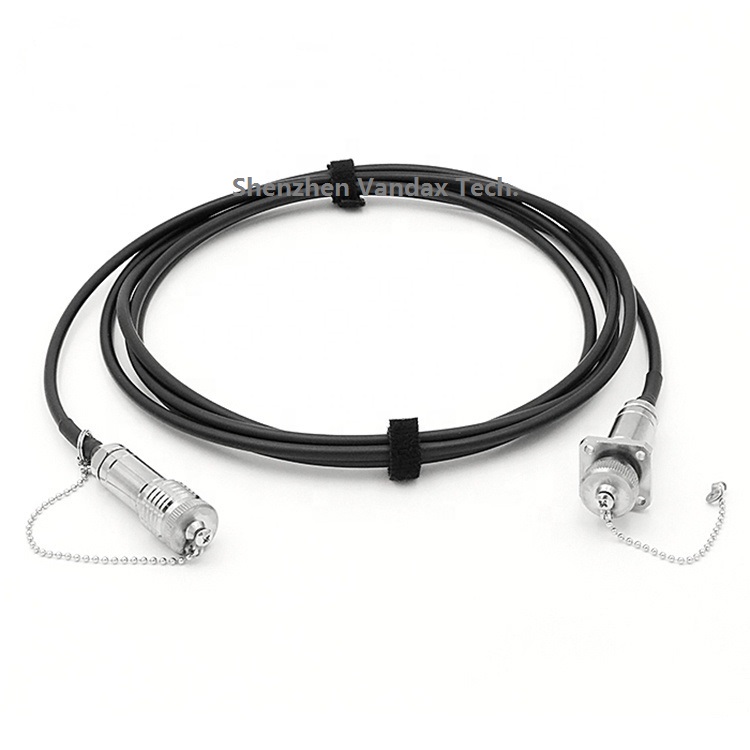

FTTA (Fiber To The Antenna) Optical Patch Cord, ODC Plug-ODC Socket, 2 Cores, 9/125 OS2, TPU Jacket, 3M
FTTA (Fiber To The Antenna) Optical Patch Cord, ODC Plug-ODC Socket, 2 Cores, 9/125 OS2, TPU Jacket, 3M

FTTA (Fiber To The Antenna) Optical Patch Cord, ODC Plug-ODC Socket, 2 Cores, 9/125 OS2, TPU Jacket, 3M

Product ID : VDX-PT-013
Product Tags :
Product Attributes :

Item #:VDX-PT-013

Minimum Order Q’ty: 1 Piece

Price Term: FOB Shenzhen, China

Packaging: Neutral or OEM service optional

Lead Time: 5-7 days

Payment Method: Paypal, Western Union, TT or Letter of Credit

Certification: ISO9001:2008 UL and RoHS

Product Description

Vandax's ODC fiber patch cords with extremely robust outdoor connectors are designed to withstand harsh environment such as high thermal exposure, mechanical loads and demanding environments like rain, salt and splash water. It is known for their ease of installation and highest operation safety due to the robust and ruggedized design. Our ODC military grade cables are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.

Parameters:

  • Insertion loss: ≤0.3dB
  • Repeatable: ≤0.2dB
  • Mechanical life: 500 cycles
  • Core number: 2 cores
  • Working temperature: -40 ~ +70℃
  • Storage temperature: -40 ~ +70℃
  • Operating temperature: -10 ~ +50℃
  • Protection level: IP67
  • Tensile data: Between junction and fiber cable ≥ 180N
  • Outer shell inflaming retarding: UL 94V-0
  • RoHS compliant

Features:

  • Fiber Cable: OS2 Single Mode GYFJH, 5.0mm, 2 Cores, TPU Jacket, Black
  • Open bulkhead for easier access to SFP
  • Positive mechanical feedback to operator when fully mated
  • Robust bayonet locking for easy, fast and secure mating
  • Available for singlemode and multimode
  • Water proof, dust proof and corrosion resistant

Applications:

  • Indoor and Outdoor applications
  • Outdoor & Military communication equipment connection.
  • Oil field, mine communication connection.
  • Far transmission wireless base station.
  • Optical fiber sensor.
  • Video surveillance system.
  • Railway signal control.
